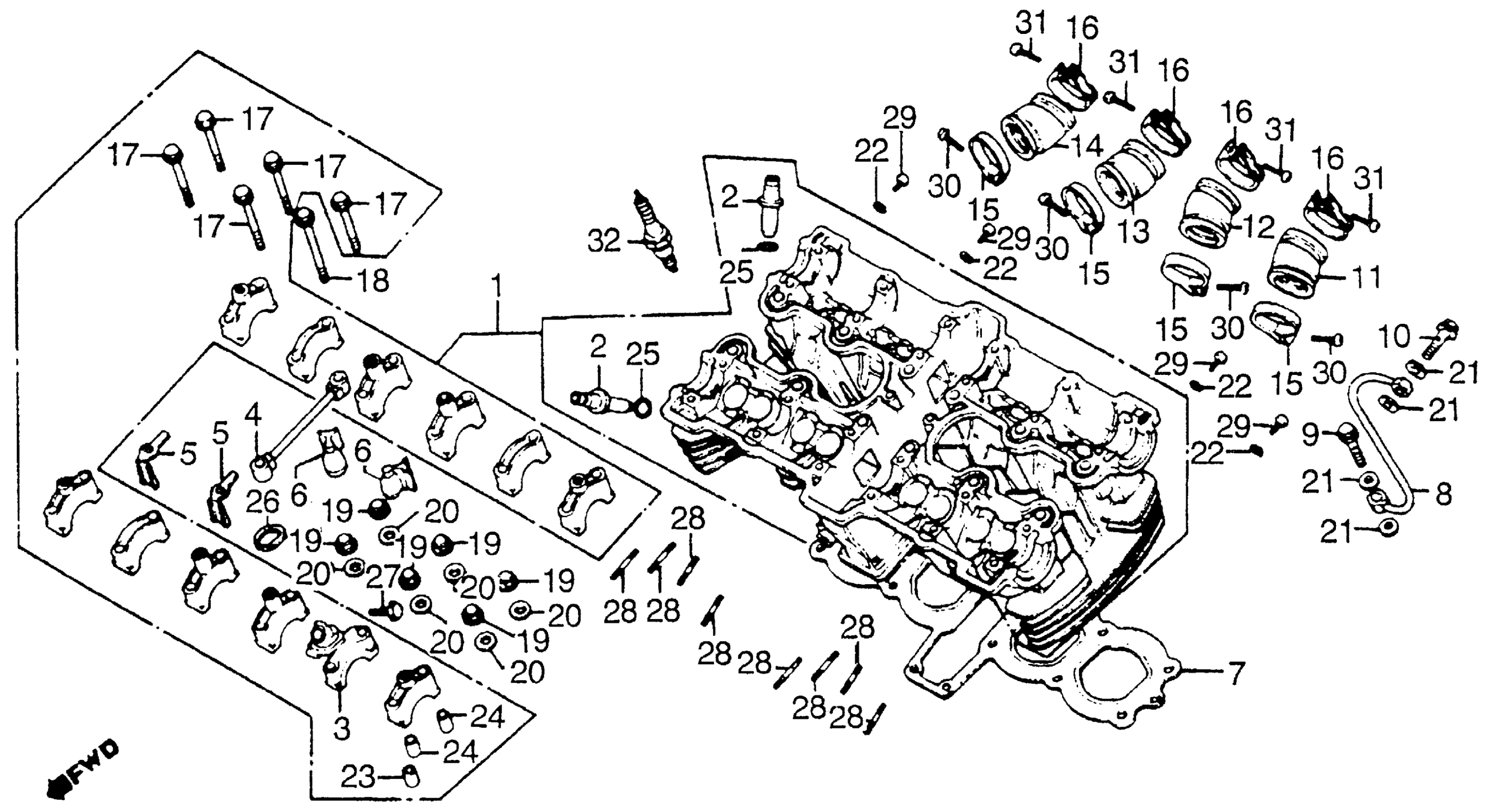

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-438-670

Unavailable

2

GUIDE, VALVE This part replaces 12204-425-305.

12204-461-405

Unavailable

2

GUIDE, VALVE

12204-461-405

Unavailable

3

HOLDER, CAMSHAFT (NOT AVAILABLE)

12213-425-305

Unavailable

4

JOINT A, OIL PASSAGE

12230-425-000

Unavailable

5

PLATE, OIL STOPPER (NOT AVAILABLE)

12241-425-000

Unavailable

6

CAP, OIL STOPPER

12242-425-000

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-438-013.

12251-438-023

Unavailable

7

GASKET, CYLINDER HEAD

12251-438-023

Unavailable

8

PIPE, OIL (NOT AVAILABLE)

15520-438-000

Unavailable

9

BOLT, OIL CONTROL (NOT AVAILABLE)

15531-425-010

Unavailable

10

BOLT, OIL (NOT AVAILABLE)

15532-425-010

Unavailable

11

INSULATOR 1, CARBURETOR

16211-438-000

Unavailable

12

INSULATOR 2, CARBURETOR

16212-438-000

Unavailable

13

INSULATOR 3, CARBURETOR

16213-438-000

Unavailable

14

INSULATOR 4, CARBURETOR

16214-438-000

Unavailable

15

BAND, INSULATOR

16219-422-000

$12.72

16

BAND, AIR CLEANER CONNECTING TUBE (54) This part replaces 17255-371-000.

95018-54250

$5.14

16

BAND, AIR CLEANER CONNECTING TUBE (54)

95018-54250

$5.14

17

BOLT, FLANGE (6X48)

90018-425-000

$3.35

18

BOLT, FLANGE (6X60)

90004-ML7-000

Unavailable

18

BOLT, FLANGE (6X60) This part replaces 90019-425-000.

90004-ML7-000

Unavailable

19

NUT, FLANGE CAP (10MM)

90202-329-000

$3.67

19

NUT, FLANGE CAP (10MM) This part replaces 90202-438-000.

90202-329-000

$3.67

20

WASHER, SEALING (10MM)

90403-438-003

$8.16

21

WASHER, SEALING (10MM)

90441-425-000

$2.13

22

WASHER, SEALING (5MM)

90452-323-000

$1.59

23

PIN, DOWEL (8X26) (NOT AVAILABLE)

90701-425-000

Unavailable

24

PIN, DOWEL (8X20.5)

90705-639-000

Unavailable

25

O-RING (10X1.6)

91301-200-000

$3.01

26

O-RING, CAMSHAFT HOLDER

91311-425-000

$6.78

27

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

27

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

27

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

28

BOLT, STUD (8X55)

90011-MG5-670

Unavailable

29

SCREW, PAN (5X8)

93500-05008-0A

$1.49

30

SCREW, PAN (5X20)

93500-05020-0G

$1.49

31

SCREW, PAN (5X25)

93500-05025-0G

$1.49

32

SPARK PLUG (D8EA) (NGK) | (Optional).

98069-58717

$2.44

32

SPARK PLUG (X24ES-U) (DENSO) | (Optional).

98069-58727

$2.20

32

SPARK PLUG (D9EA) (NGK)

98069-59717

$2.44

32

SPARK PLUG (X27ES-U) (DENSO)

98069-59727

Unavailable
