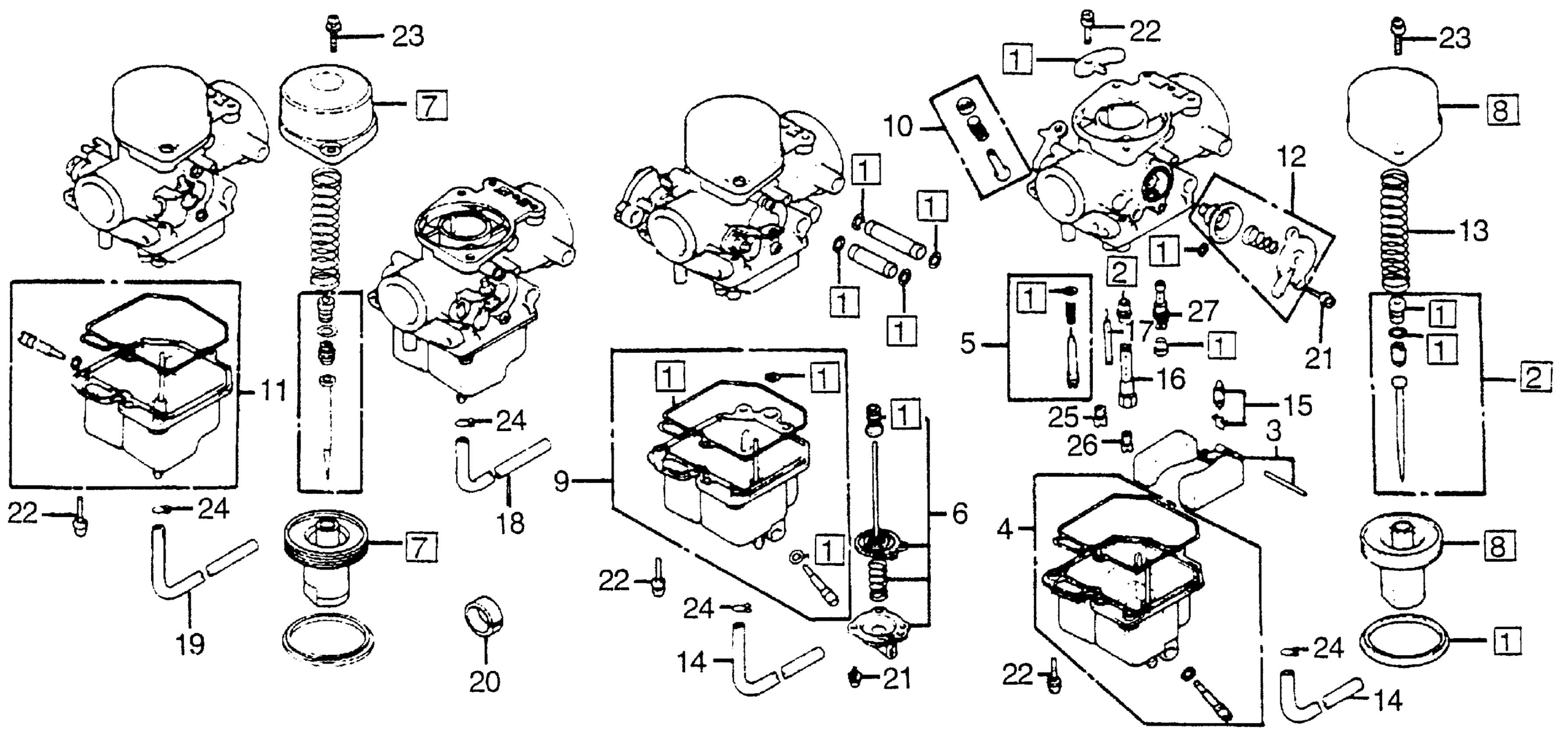

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 CARBURETOR CONPONENT Diagram

#

Description
Price

1

GASKET SET

16010-438-305

Unavailable

1

GASKET SET This part replaces 16010-438-671.

16010-438-305

Unavailable

2

NEEDLE SET, JET

16012-438-671

Unavailable

3

FLOAT SET This part replaces 16013-413-751.

16013-413-851

$90.77

3

FLOAT SET

16013-413-851

$90.77

4

CHAMBER SET, FLOAT This part replaces 16015-413-004.

16015-425-871

Unavailable

4

CHAMBER SET, FLOAT

16015-425-871

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-438-671

Unavailable

7

PISTON SET, VACUUM (NOT AVAILABLE)

16022-438-671

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE)

16022-461-003

Unavailable

9

CHAMBER SET B, FLOAT (NOT AVAILABLE) This part replaces 16023-425-671.

16023-425-871

Unavailable

10

SCREW SET C

16029-PC6-005

Unavailable

10

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

11

CHAMBER SET C, FLOAT (NOT AVAILABLE) This part replaces 16045-425-671.

16045-425-871

Unavailable

12

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

13

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-461-003

Unavailable

14

TUBE This part replaces 16144-413-751.

16199-MN5-405

$11.86

14

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

15

VALVE, FLOAT

16155-413-751

$32.50

16

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-438-003

Unavailable

17

NOZZLE, MAIN

16166-461-003

Unavailable

18

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

18

TUBE This part replaces 16195-449-771.

16199-MN5-405

$11.86

19

BINDER

16179-ME5-761

Unavailable

19

BINDER This part replaces 16198-425-671.

16179-ME5-761

Unavailable

20

BAND, RUBBER (NOT AVAILABLE)

16291-300-300

Unavailable

21

SCREW-WASHER (4X12)

93892-04012-00

$1.49

22

SCREW-WASHER (4X16)

93892-04016-00

$1.49

23

SCREW-WASHER (5X16)

93892-05016-00

$1.49

24

CLIP, TUBE (B6.5)

95002-02650

$1.49

25

JET, PRIMARY MAIN (#68)

99101-393-0680

$11.52

26

JET, MAIN (#105)

99101-GHB-1050

$6.40

26

JET, MAIN (#105) This part replaces 99101-393-1050.

99101-GHB-1050

$6.40

26

JET, MAIN (#105) This part replaces 99102-393-1050.

99101-GHB-1050

$6.40
