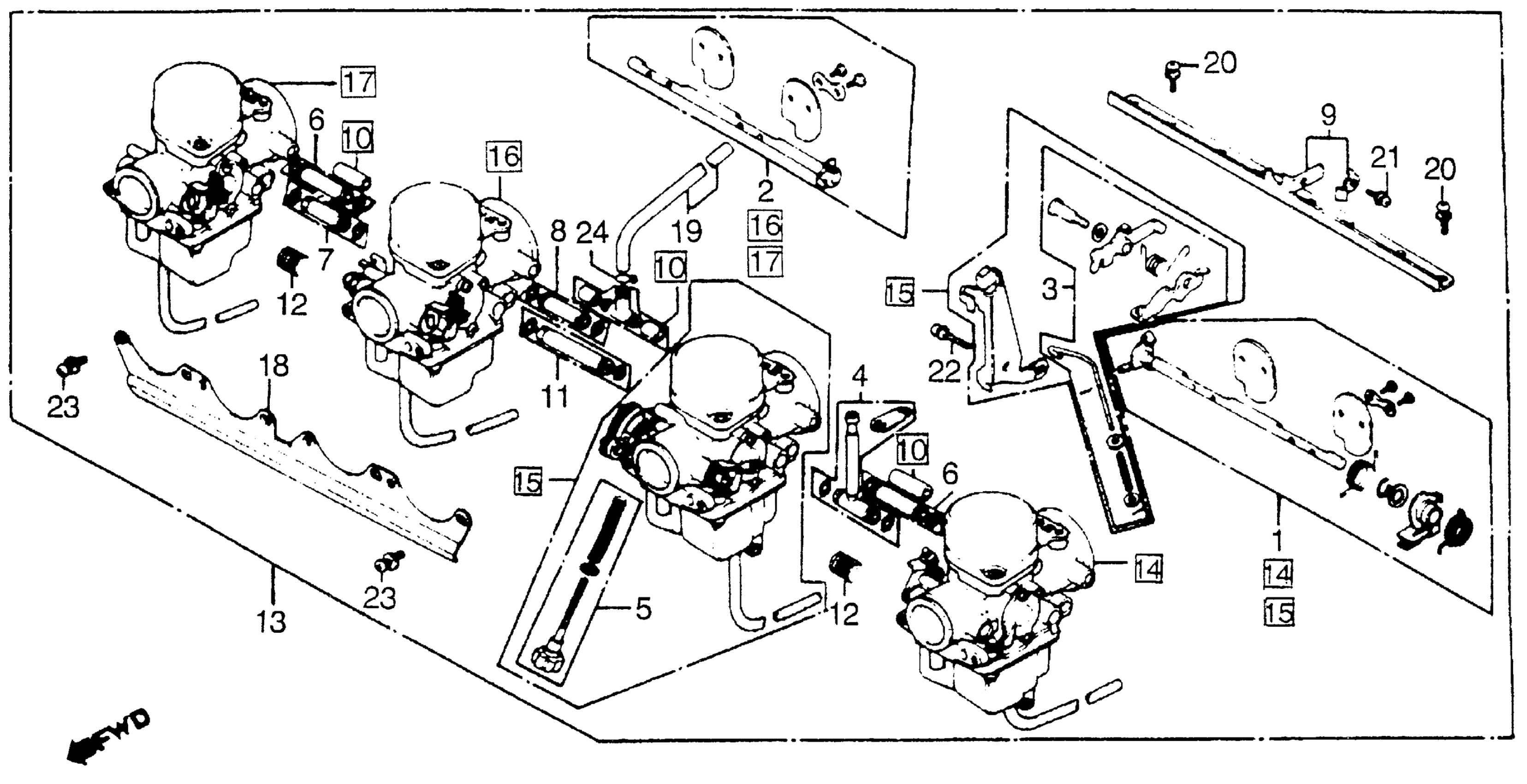

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 CARBURETOR ASSY. Diagram

#

Description
Price

1

LINK A SET, CHOKE (NOT AVAILABLE)

16017-438-405

Unavailable

2

LINK B SET, CHOKE (NOT AVAILABLE)

16018-438-405

Unavailable

3

ROD SET, PUMP (NOT AVAILABLE)

16019-413-751

$50.74

4

JOINT SET A, FUEL (NOT AVAILABLE)

16027-438-671

Unavailable

5

SCREW SET B (NOT AVAILABLE)

16028-425-671

Unavailable

6

JOINT SET B, FUEL (NOT AVAILABLE)

16031-425-671

Unavailable

7

JOINT SET, FUEL This part replaces 16033-425-671.

16042-MW3-R00

$20.52

7

JOINT SET, FUEL This part replaces 16042-MA5-671.

16042-MW3-R00

$20.52

7

JOINT SET, FUEL

16042-MW3-R00

$20.52

8

JOINT SET D, FUEL (NOT AVAILABLE)

16034-425-671

Unavailable

9

PLATE SET, RR. STAY (NOT AVAILABLE)

16035-425-671

Unavailable

10

JOINT SET, THREE-WAY

16036-438-671

Unavailable

11

JOINT SET E, FUEL (NOT AVAILABLE)

16037-425-671

Unavailable

12

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16051-413-004

Unavailable

13

CARBURETOR ASSY.

16100-438-671

Unavailable

14

CARBURETOR ASSY. 1

16101-438-405

Unavailable

15

CARBURETOR ASSY. 2

16102-438-405

Unavailable

16

CARBURETOR ASSY. 3

16103-438-405

Unavailable

17

CARBURETOR ASSY. 4

16104-438-405

Unavailable

18

PLATE, STAY (NOT AVAILABLE)

16119-425-672

Unavailable

19

PIPE, OVERFLOW This part replaces 16198-KR3-405.

16198-ML4-405

Unavailable

19

PIPE, OVERFLOW This part replaces 16199-425-671.

16198-ML4-405

Unavailable

20

SCREW-WASHER (4X10)

93892-04010-00

$1.49

21

SCREW-WASHER (4X12)

93892-04012-00

$1.49

22

SCREW-WASHER (5X16)

93892-05016-00

$1.49

23

SCREW-WASHER (6X14)

93892-06014-00

$1.49

24

CLIP, TUBE (B8)

95002-02080

$1.80
