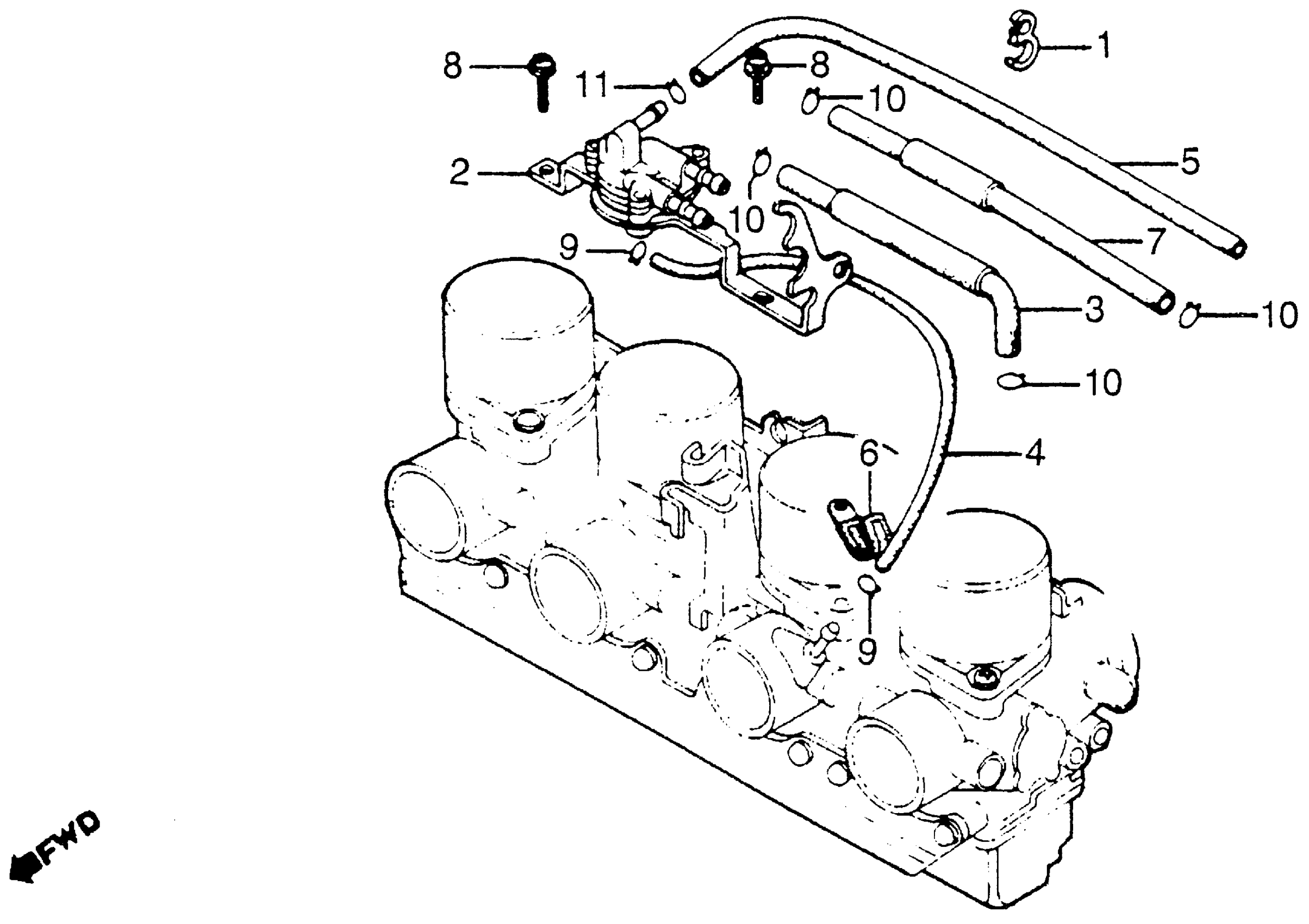

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 AUTOMATIC FUEL VALVE Diagram

CLAMP A, TUBE (NOT AVAILABLE)

16876-671-650

Unavailable

PETCOCK ASSY., AUTOMATIC (NOT AVAILABLE) | Use up to Engine SN 2204686

16970-461-771

Unavailable

PETCOCK ASSY., AUTOMATIC (NOT AVAILABLE) | Use from Engine SN 2204687

16970-461-772

Unavailable

TUBE, FUEL (7.3X200) (NOT AVAILABLE)

16971-461-771

Unavailable

TUBE, VACUUM (3.5X300)

16972-461-771

Unavailable

TUBE, AIR VENT (3X360) (NOT AVAILABLE)

16973-461-771

Unavailable

CLAMP, TUBE (NOT AVAILABLE)

16974-461-771

Unavailable

TUBE, FUEL (7.3X235) (NOT AVAILABLE) | Use up to Engine SN 2205905 This part replaces 16990-461-770.

16990-461-771

Unavailable

TUBE, FUEL (7.3X235) (NOT AVAILABLE) | Use up to Engine SN 2205905

16990-461-771

Unavailable

SCREW-WASHER (5X16)

93892-05016-00

$1.49

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (B6.5)

95002-02650

$1.49
