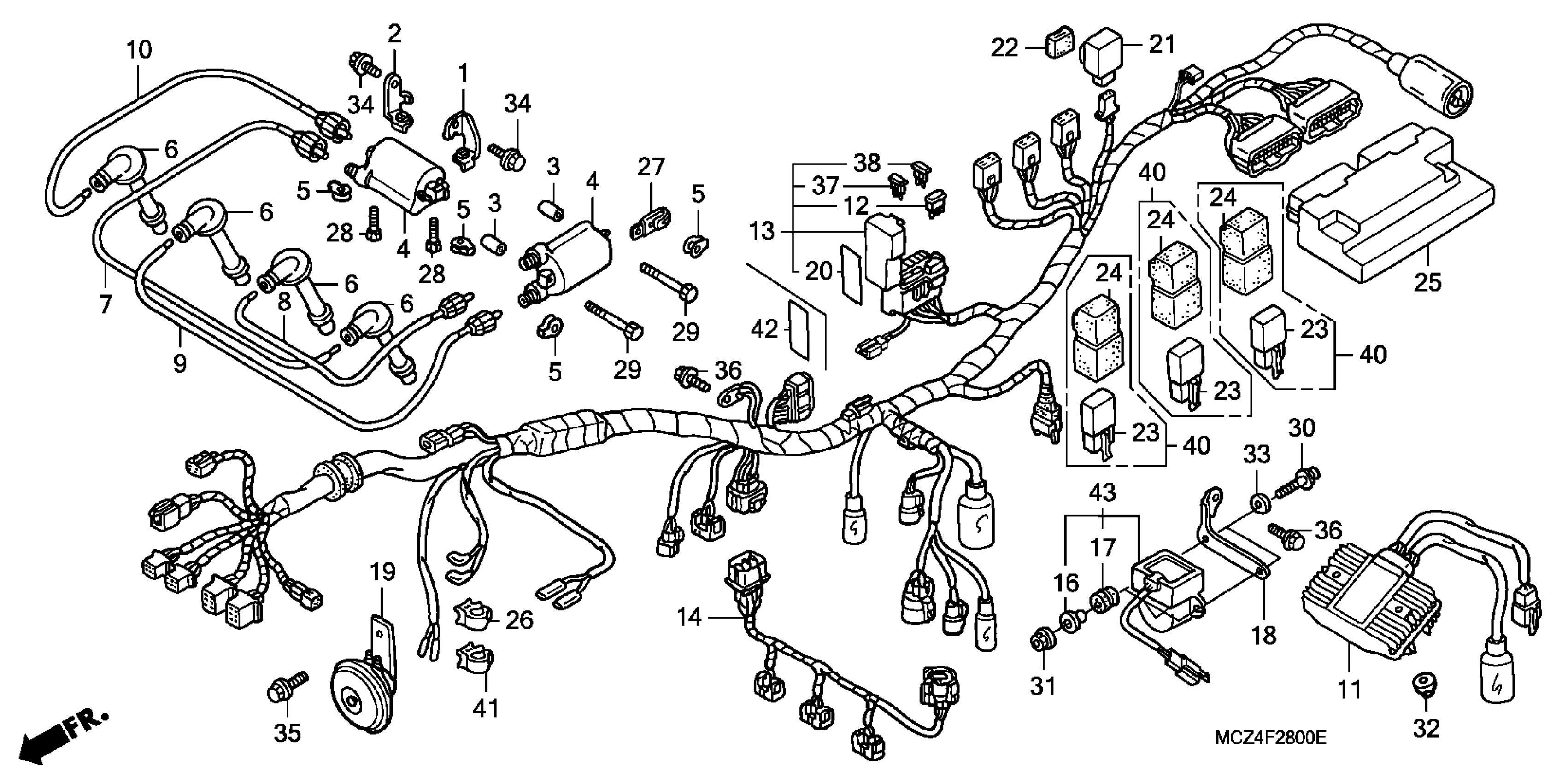

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 WIRE HARNESS Diagram

#

Description
Price

1

STAY, L. IGNITION COIL

30506-MCZ-000

$4.01

2

STAY, R. IGNITION COIL

30507-MCZ-000

$3.56

3

COLLAR, IGNITION COIL MOUNTING

30508-MCZ-000

$2.56

4

COIL, IGNITION

30510-KT7-023

$130.52

5

SPACER, IGNITION COIL

30520-ML7-000

$3.61

6

CAP ASSY., NOISE SUPPRESSOR

30700-MCZ-000

$26.30

7

WIRE, IGNITION (1)

30731-MCZ-D10

Unavailable

8

WIRE, IGNITION (2)

30732-MCZ-003

Unavailable

9

WIRE, IGNITION (3)

30733-MCZ-003

Unavailable

10

WIRE, IGNITION (4)

30734-MCZ-D10

Unavailable

11

RECTIFIER ASSY., REGULATOR

31600-MCZ-D11

Unavailable

12

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

13

WIRE HARNESS

32100-MCZ-A20

$545.37

14

SUB-HARNESS, INJECTOR

32103-MCZ-000

Unavailable

16

COLLAR

35162-MN5-003

$6.93

17

GROMMET

35163-MN5-003

$3.00

18

STAY, STOP SENSOR

35169-MCZ-000

$3.62

19

HORN ASSY. (LOW)

38120-MBZ-D30

$48.07

21

RELAY, TURN SIGNAL (DENSO)

38301-MBW-D21

$42.64

22

SUSPENSION, TURN SIGNAL RELAY (DENSO)

38306-GE8-008

Unavailable

23

RELAY, STARTER (MITSUBA)

38501-GN2-014

$45.58

24

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.28

25

PGM-FI UNIT

38770-MCZ-A32

Unavailable

26

CLIP, CABLE (10MM)

90690-GHB-641

$2.01

27

CLIP, WIRE

91406-166-000

$3.71

28

BOLT, HEX. (6X20)

92101-06020-4J

$1.28

29

BOLT, HEX. (6X45)

92101-06045-4J

Unavailable

30

SCREW-WASHER (4X25)

93891-04025-00

$0.85

31

NUT, FLANGE (4MM)

94050-04000

$1.13

32

NUT, FLANGE (6MM)

94050-06070

$1.34

33

WASHER, PLAIN (4MM)

94101-04800

$0.91

34

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

35

BOLT, FLANGE (8X12)

95701-08012-07

$1.66

36

BOLT, FLANGE (6X8)

96001-06008-00

$0.94

37

FUSE, MINI (10A)

98200-41000

$1.22

38

FUSE, MINI (20A)

98200-42000

$1.12

39

SENSOR, BANK ANGLE (NOT AVAILABLE)

35161-MCZ-003

Unavailable

40

RELAY ASSY., STARTER

38500-GC7-612

$46.35

41

CLIP, CABLE (8MM)

90690-GHB-631

$2.01
