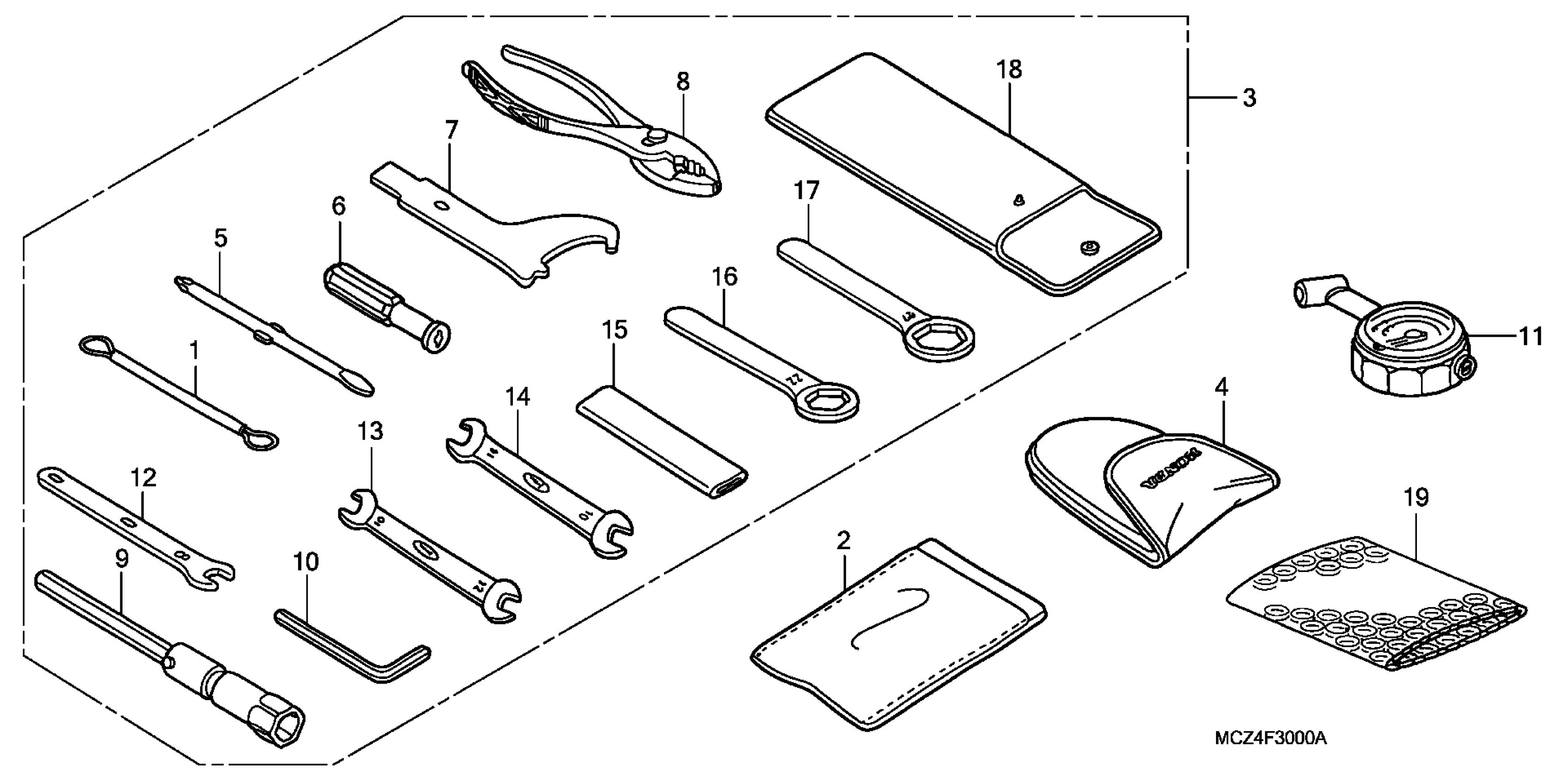

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 TOOLS Diagram

#

Description
Price

1

WIRE, HELMET SETTING

77236-KEA-000

$8.63

2

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.10

4

BAG, AIR PRESSURE GAUGE | (Optional).

89102-469-003

$6.07

5

SCREWDRIVER (NO.2 PHILLIPS -) | (Optional).

89102-538-000

$6.83

6

GRIP | (Optional).

89103-538-000

$3.78

7

SPANNER, PIN | (Optional).

89202-KY1-700

$18.92

8

PLIERS (135) (RIKEN) | (Optional).

89210-GBJ-J00

$8.14

8

PLIERS (135) (KOWA) | (Optional).

89210-GBJ-J10

$13.59

8

PLIERS (135) (KOWA) | (Optional). This part replaces 99002-13500.

89210-GBJ-J10

$13.59

9

WRENCH, PLUG (16.5) | (Optional).

89216-MAT-000

$15.14

10

WRENCH, HEX. (5MM)

89221-429-000

$3.61

11

GAUGE, AIR PRESSURE | (Optional). This part replaces 89301-MG9-951.

89301-MN5-003

Unavailable

11

GAUGE, AIR PRESSURE | (Optional).

89301-MN5-003

Unavailable

11

GAUGE, AIR PRESSURE | (Optional). This part replaces 89301-463-771.

89301-MN5-003

Unavailable

12

SPANNER, 8 | (Optional).

99001-08000

$5.65

13

SPANNER (10X12) | (Optional).

99001-10120

$5.20

14

SPANNER (10X14) | (Optional).

99001-10140

$2.80

15

HANDLE, EYE WRENCH (12MM) | (Optional).

99006-12000

$2.76

16

WRENCH, EYE (22MM) | (Optional).

99006-22000

$3.86

17

WRENCH, EYE (27MM) | (Optional).

99006-27000

$4.24

18

BAG, TOOL

89101-ME5-670

Unavailable

18

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable

19

BAG, EYEBOLT (M16)

84703-S7A-000

$14.53
