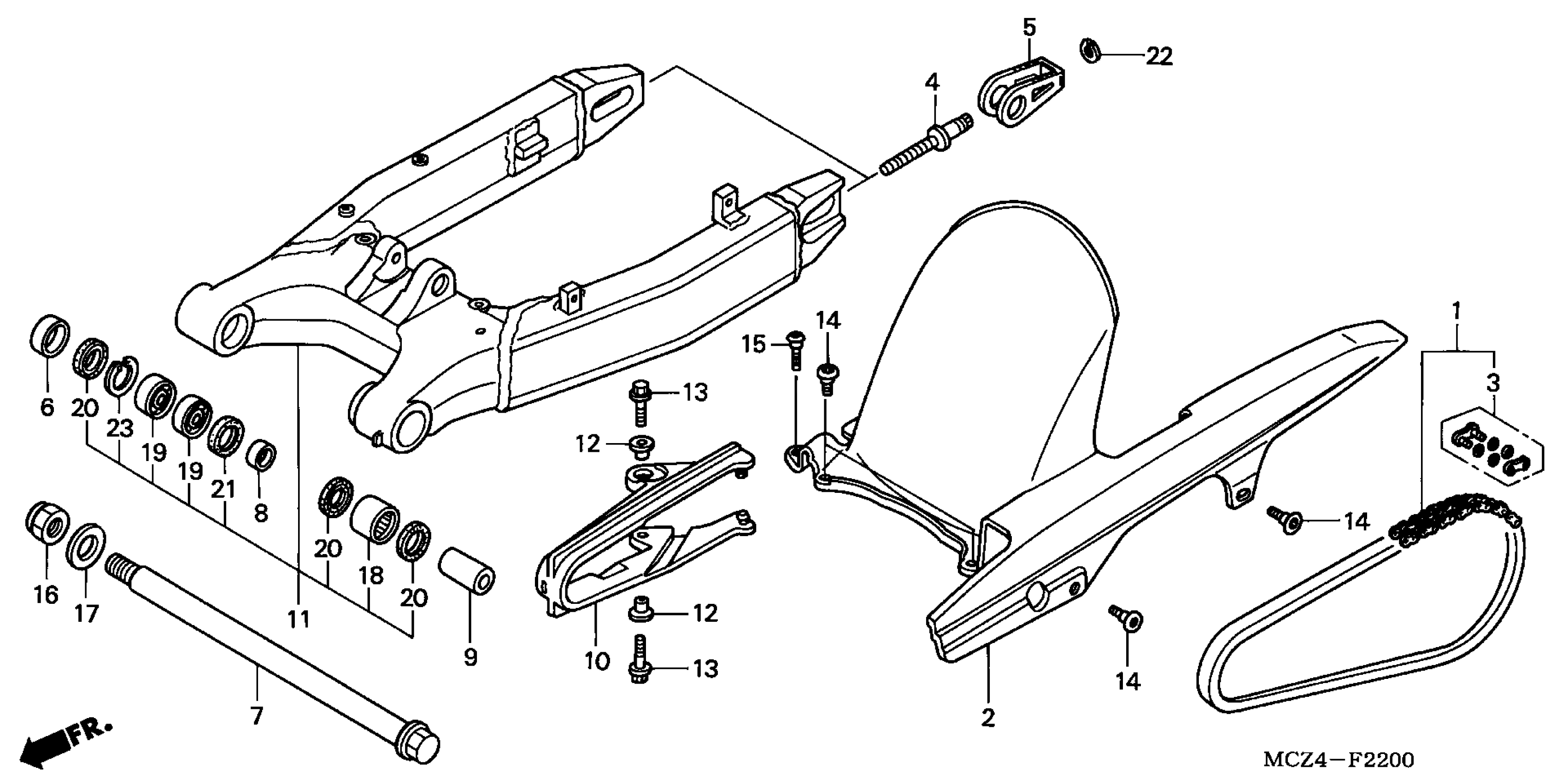

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID50 112-120L) (DAIDO) (STANDARD LINK 114L)

06405-MZ1-P01

Unavailable

1

CHAIN SET, DRIVE (RK50 112-120L) (RK EXCEL) (STANDARD LINK 114L)

06405-MZ1-P11

Unavailable

2

CASE, DRIVE CHAIN

40510-MCZ-000

Unavailable

3

MASTER LINK (DID) This part replaces 40535-MZ1-316.

40545-MCF-003

Unavailable

3

MASTER LINK (RK EXCEL)

40535-MZ1-317

$9.12

4

BOLT, CHAIN ADJUSTING

40542-KV3-700

$7.52

5

ADJUSTER, CHAIN This part replaces 40543-MAS-000.

40543-MAS-010

$15.56

6

COLLAR, FR. WHEEL SIDE

44312-MZ1-610

$10.16

7

BOLT, SWINGARM PIVOT

52101-MCZ-000

$30.72

8

COLLAR, R. PIVOT DISTANCE

52142-MBB-000

$7.78

9

COLLAR, L. PIVOT DISTANCE

52143-MBB-000

$23.59

10

SLIDER, CHAIN

52170-MCC-000

Unavailable

11

SWINGARM SUB-ASSY., RR.

52200-MCZ-010

Unavailable

12

COLLAR

81312-GJ5-000

$3.08

13

BOLT, FLANGE (6X18)

90105-MY9-000

$2.67

14

SCREW, PAN (6X11)

90106-KY2-701

$3.95

15

SCREW, PAN (5X15)

90109-MCZ-000

$2.32

16

NUT, U (18MM) This part replaces 90305-MBB-D40.

90306-MCS-G00

$6.63

16

NUT, U (18MM)

90306-MCS-G00

$6.63

17

WASHER (20X31.5X2)

90401-MAS-000

$2.98

18

BEARING, NEEDLE

91071-MR7-003

$22.90

19

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.17

20

DUST SEAL (28X37X4)

91202-MR7-003

$5.91

21

DUST SEAL (27X34X4)

91261-KZ3-861

$7.26

22

CIRCLIP, OUTER (10MM)

94511-10000

$0.84

23

CIRCLIP, INNER (37MM)

94520-37000

$1.99
