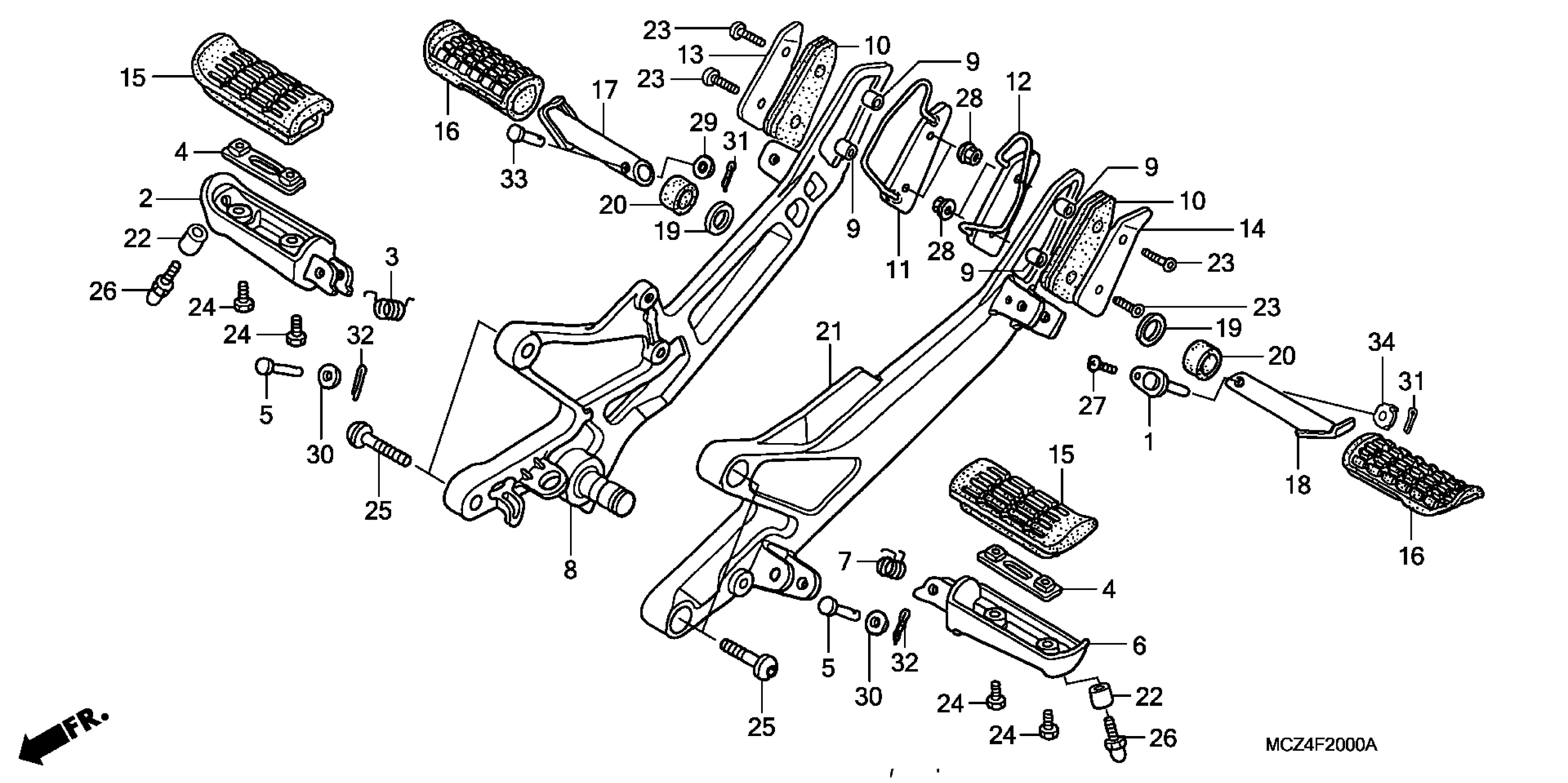

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-MY5-G30

$3.29

2

ARM, R. STEP (COO) This part replaces 50612-MM5-000.

50612-KYJ-305

$23.26

3

SPRING, R. STEP RETURN

50617-445-840

$5.07

4

PLATE, STEP SETTING

50619-MM5-000

$7.37

5

PIN, STEP BAR

50639-ML0-010

Unavailable

6

ARM, L. STEP (COO) This part replaces 50642-MM5-000.

50642-KYJ-305

$23.26

7

SPRING, L. STEP RETURN

50644-445-840

$5.07

8

HOLDER, R. MAIN STEP

50650-MCZ-D20

Unavailable

9

COLLAR, STEP GUARD

50651-MCZ-000

$1.91

10

RUBBER, STEP GUARD

50655-MBZ-610

Unavailable

11

PLATE, R. STEP GUARD

50655-MCZ-000

Unavailable

12

PLATE, L. STEP GUARD

50656-MCZ-000

$18.38

13

PLATE A, R. STEP GUARD

50657-MCZ-000

Unavailable

14

PLATE A, L. STEP GUARD

50658-MCZ-000

Unavailable

15

RUBBER, STEP

50661-MV9-000

$12.88

16

RUBBER, PILLION STEP

50710-KE8-000

$11.31

17

BAR, R. PILLION STEP

50711-MBZ-610

Unavailable

18

BAR, L. PILLION STEP

50712-MCZ-000

Unavailable

19

PLATE, PILLION STEP SIDE

50715-KE8-000

$3.90

20

RUBBER, R. PILLION STEP

50716-MBZ-610

Unavailable

21

HOLDER, L. MAIN STEP

50750-MCZ-D20

$54.23

22

COLLAR, STEP (LOWER)

51486-MCZ-000

$2.07

23

BOLT, SPECIAL (6X32)

90101-MCZ-000

$1.68

24

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.42

25

BOLT, SOCKET (8X22)

90157-ME9-000

$5.32

26

BOLT, CAP (8X20)

92501-08020-0A

$2.71

27

SCREW, PAN (4X8)

93500-04008-0A

$0.80

28

NUT, FLANGE (6MM)

94050-06000

$0.59

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

29

WASHER, PLAIN (6MM)

94101-06800

Unavailable

30

WASHER, PLAIN (8MM)

94102-08000

$0.86

31

PIN, SPLIT (1.6X10)

94201-16100

$0.94

32

PIN, SPLIT (2.0X15)

94201-20150

$0.94

33

PIN C, PILLION STEP

95015-83000

$2.19

34

WASHER, PILLION STEP

50654-MCZ-000

$4.75
