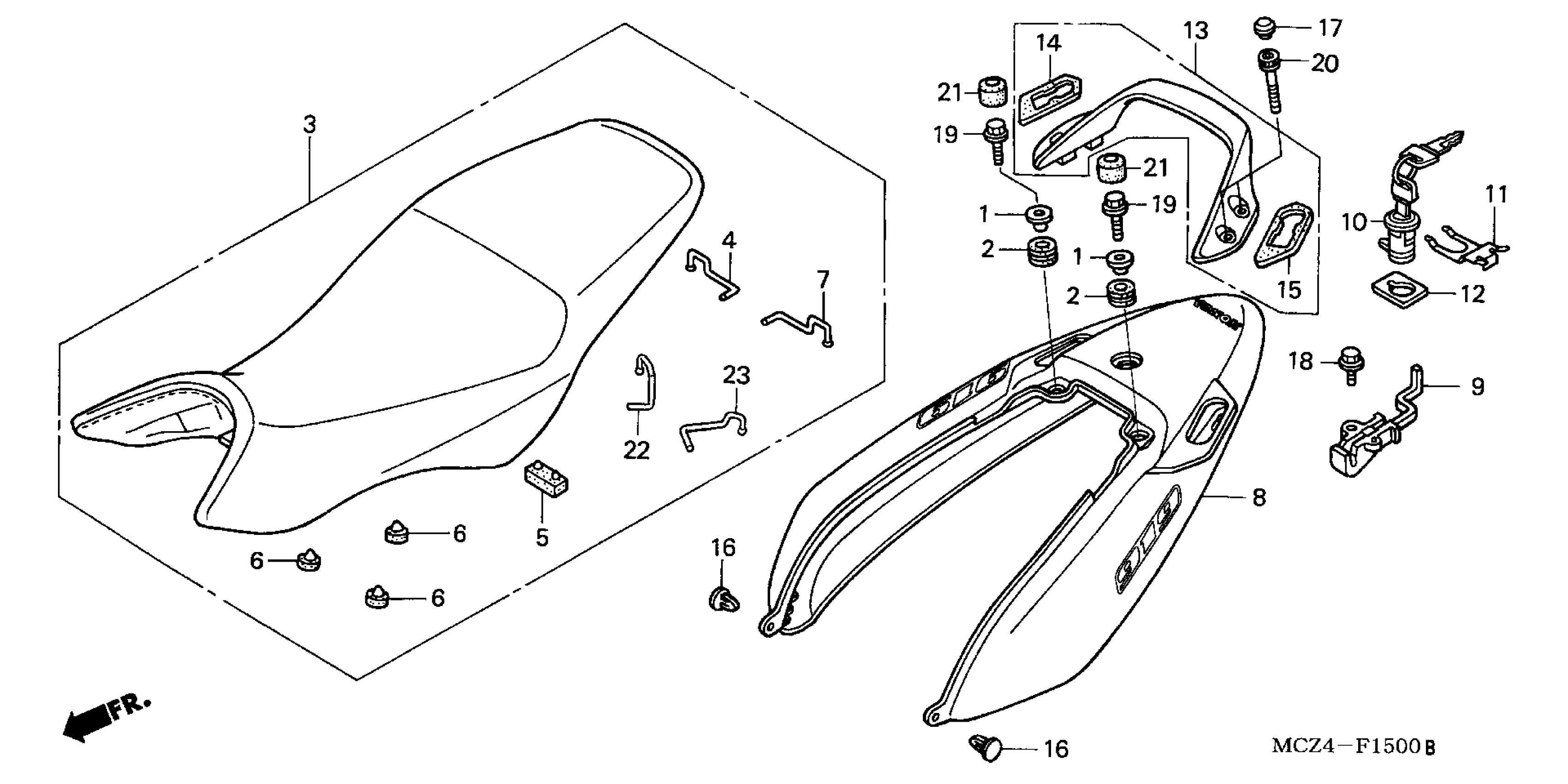

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 SEAT + SEAT COWL Diagram

#

Description
Price

1

COLLAR, FUEL TANK SETTING

17535-KE7-000

$3.16

2

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.13

3

SEAT ASSY., DOUBLE

77200-MCZ-D10

Unavailable

4

HOOK A, ROPE

77205-KBV-000

$2.96

5

RUBBER B, SEAT SETTING

77205-286-000

$5.04

6

RUBBER, SEAT CUSHION

77206-GF0-000

$5.21

7

HOOK B, ROPE

77206-KBV-000

$2.19

8

COWL SET, RR. (TYPE1) (WL)

77210-MCZ-A30ZB

Unavailable

9

HOOK, SEAT CATCH

77220-KEA-010

$29.97

10

LOCK ASSY., SEAT

77225-MBZ-611

$33.87

11

SPRING, LOCK KEY SETTING

77226-KY2-700

$5.91

12

WASHER, SEAT LOCK This part replaces 77236-GW0-000.

77236-GZ5-000

$2.80

12

WASHER, SEAT LOCK

77236-GZ5-000

$2.80

13

GRAB RAIL, RR.

77300-MCZ-640

Unavailable

14

BASE, R. GRAB RAIL

77311-MBW-300

$5.00

15

BASE, L. GRAB RAIL

77312-MBW-300

$5.00

16

CLIP, ANCHOR

90677-KV3-950

$2.13

17

CAP, SOCKET BOLT (8MM)

91456-MW3-600

$2.62

18

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

19

BOLT, FLANGE (6X22)

95701-06022-00

$1.66

20

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

96600-08032-10

$1.91

20

BOLT, SOCKET (8X32)

96600-08032-10

$1.91

21

CAP, SOCKET BOLT

91456-KCR-000

$3.17

22

HOOK, R. ROPE

77207-MCZ-D10

Unavailable

23

HOOK, L. ROPE

77208-MCZ-D10

$3.56
