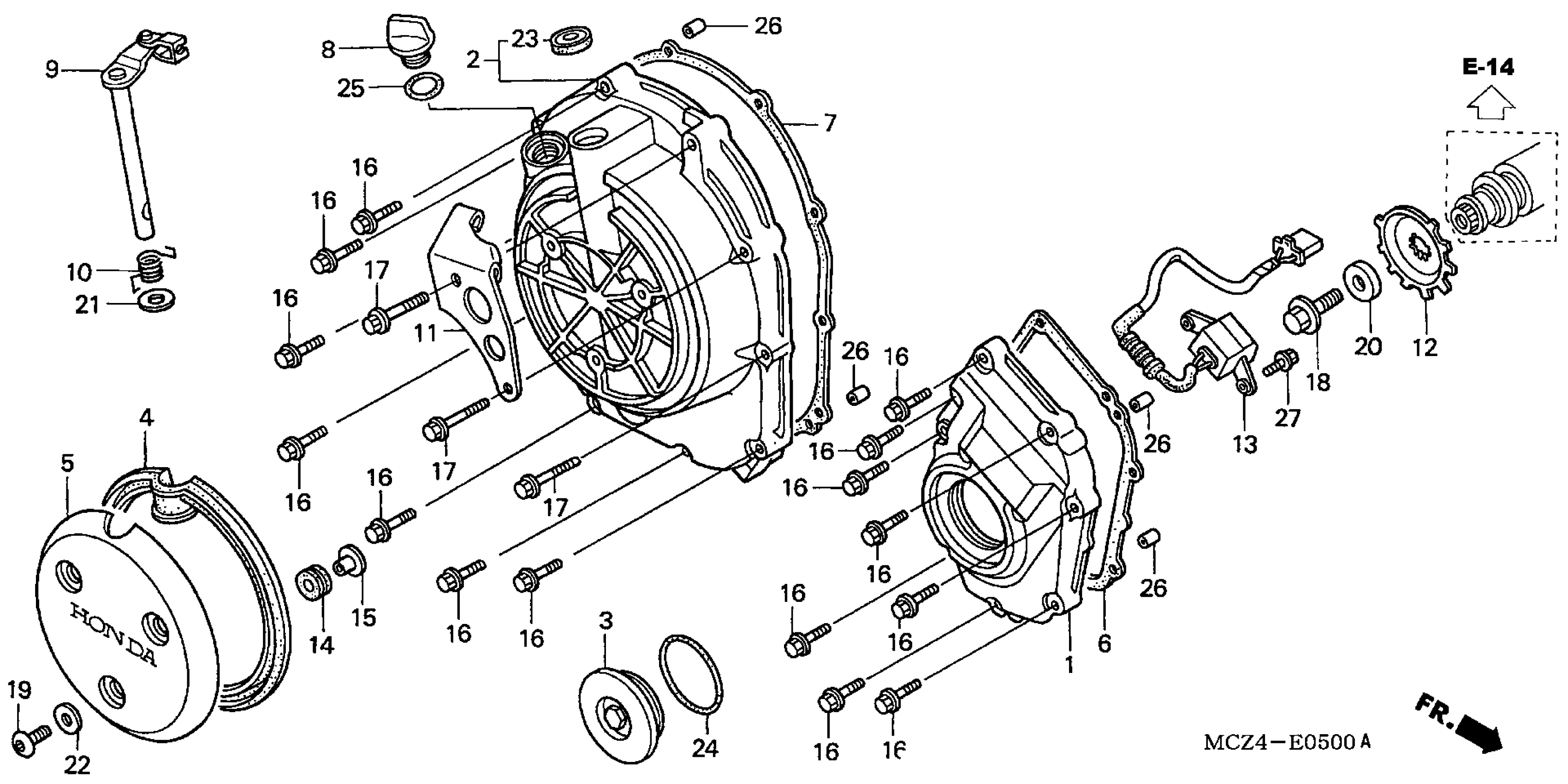

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, PULSER

11311-MBZ-D00

Unavailable

2

COVER, CLUTCH

11330-MCZ-D20

$345.50

3

CAP (45MM)

11332-MBZ-D00

$17.52

4

RUBBER, CLUTCH COVER

11334-MAS-000

Unavailable

5

COVER, CENTER

11371-MCZ-D20

$51.96

6

GASKET, PULSER COVER

11391-MV9-670

$12.51

7

GASKET, CLUTCH COVER

11393-MV9-670

$20.81

8

CAP, OIL FILLER

15611-KA4-710

$13.22

9

LEVER, CLUTCH

22810-MCZ-000

Unavailable

10

SPRING, CLUTCH LEVER

22815-MCZ-000

Unavailable

11

RECEIVER, CLUTCH CABLE

22821-MCZ-000

Unavailable

12

ROTOR, PULSE

30291-MAT-E01

$16.10

13

GENERATOR ASSY., PULSE

30300-MCZ-000

Unavailable

14

RUBBER, PIVOT COVER (LOWER)

64386-MS2-000

$5.07

15

COLLAR, LOCK SETTING

83119-MG9-000

$5.64

16

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.88

17

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.78

18

BOLT, SPECIAL (10X25)

90013-430-000

$6.17

19

BOLT, SPECIAL (6X17)

90085-MCZ-000

$1.97

20

WASHER (10.5X27)

90405-MCA-780

$3.85

21

WASHER

90525-MBZ-610

$2.21

22

WASHER, PLAIN (6MM)

90525-428-900

$1.87

23

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

Unavailable

24

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.74

25

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

26

PIN, DOWEL (8X14)

94301-08140

$2.62

27

BOLT, FLANGE (6X14)

95701-06014-00

$0.93
