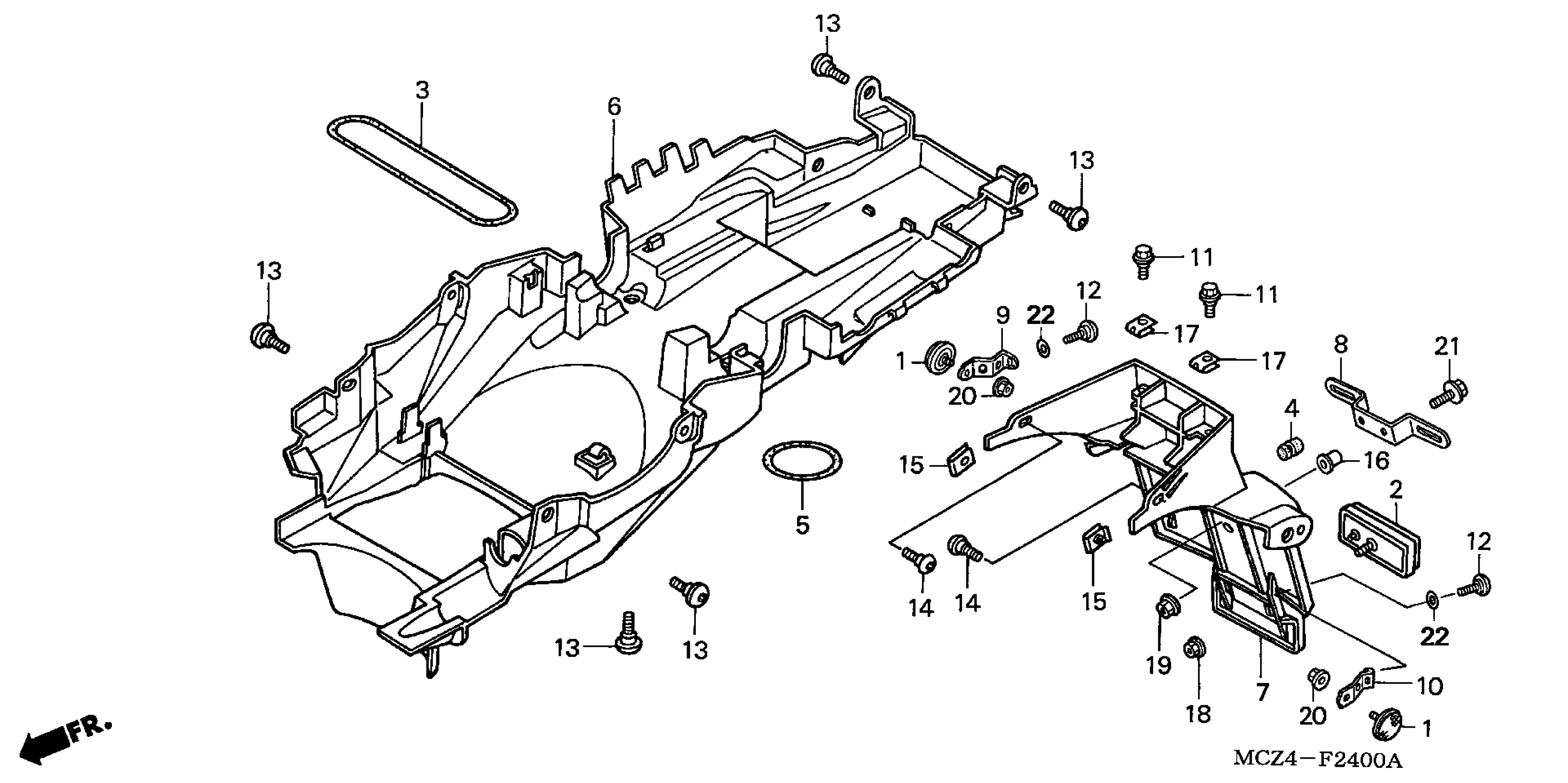

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 REAR FENDER Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX

33741-HB9-641

$12.18

2

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

3

BAND, U-LOCK

50290-MZ7-000

$18.30

4

RUBBER C, STOPPER

50355-434-000

$4.24

5

BAND, TOOL SETTING

50419-166-000

$7.41

6

FENDER B, RR.

80100-MCZ-000

Unavailable

7

FENDER A, RR.

80200-MCZ-671

Unavailable

8

BRACKET, NUMBER PLATE

84701-MCZ-670

Unavailable

9

STAY, R. RR. REFLECTOR

84702-MCZ-670

$5.03

10

STAY, L. RR. REFLECTOR

84703-MCZ-670

$10.63

11

BOLT, RR. FENDER

90003-GE0-000

$2.50

12

SCREW, PAN (6X14)

90106-KBV-000

$3.73

13

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.66

14

SCREW, SPECIAL (5X17)

90109-KW3-000

$2.87

15

NUT, PLATE (5MM)

90305-MN5-000

$5.23

16

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.79

17

NUT, CLIP (5MM)

90677-KAN-961

$3.89

18

NUT, FLANGE (5MM)

94050-05070

$1.19

19

NUT, FLANGE (6MM)

94050-06000

$0.60

20

NUT, FLANGE (6MM)

94050-06070

$1.34

21

BOLT, FLANGE (6X14)

95701-06014-00

$0.93
