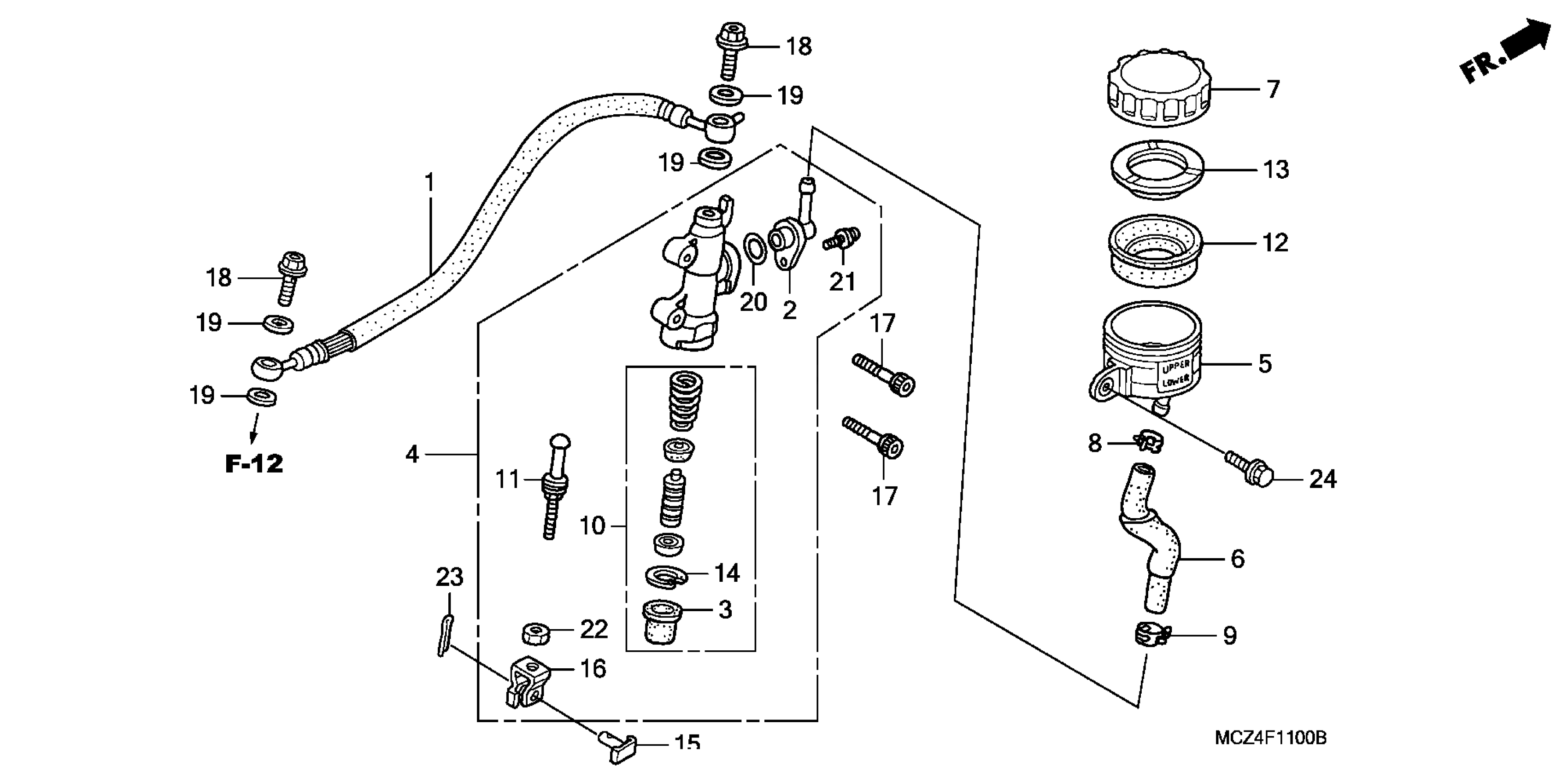

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MCZ-003

Unavailable

2

CONNECTOR

43503-MJ0-006

Unavailable

3

BOOT

43504-MB2-006

$10.04

4

MASTER CYLINDER SUB-ASSY., RR.

43510-MCZ-016

Unavailable

5

CUP, OIL

43511-MR7-016

$32.46

6

HOSE, RR. MASTER CYLINDER

43512-MCZ-006

Unavailable

7

CAP, OIL CUP

43513-MY1-006

$29.39

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.40

10

PISTON SET, MASTER CYLINDER

43520-MJ6-315

$46.73

11

ROD, PUSH

43530-MCZ-006

$24.52

12

DIAPHRAGM

45520-300-000

$9.05

13

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

14

CIRCLIP

46182-MEL-D21

$1.93

15

PIN, BRAKE ROD

46503-MBW-E10

$4.03

16

JOINT, BRAKE ROD

46504-MAL-601

$13.39

17

BOLT, SOCKET (6X18)

90040-MN5-000

$3.31

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

O-RING (14.8X2.4)

91212-422-006

$2.56

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

22

NUT, HEX. (8MM)

94002-08000-0S

$1.49

23

PIN, SPLIT (2.0X12)

94201-20120

$1.49

24

BOLT, FLANGE (6X14)

90101-MCZ-D00

$1.49
