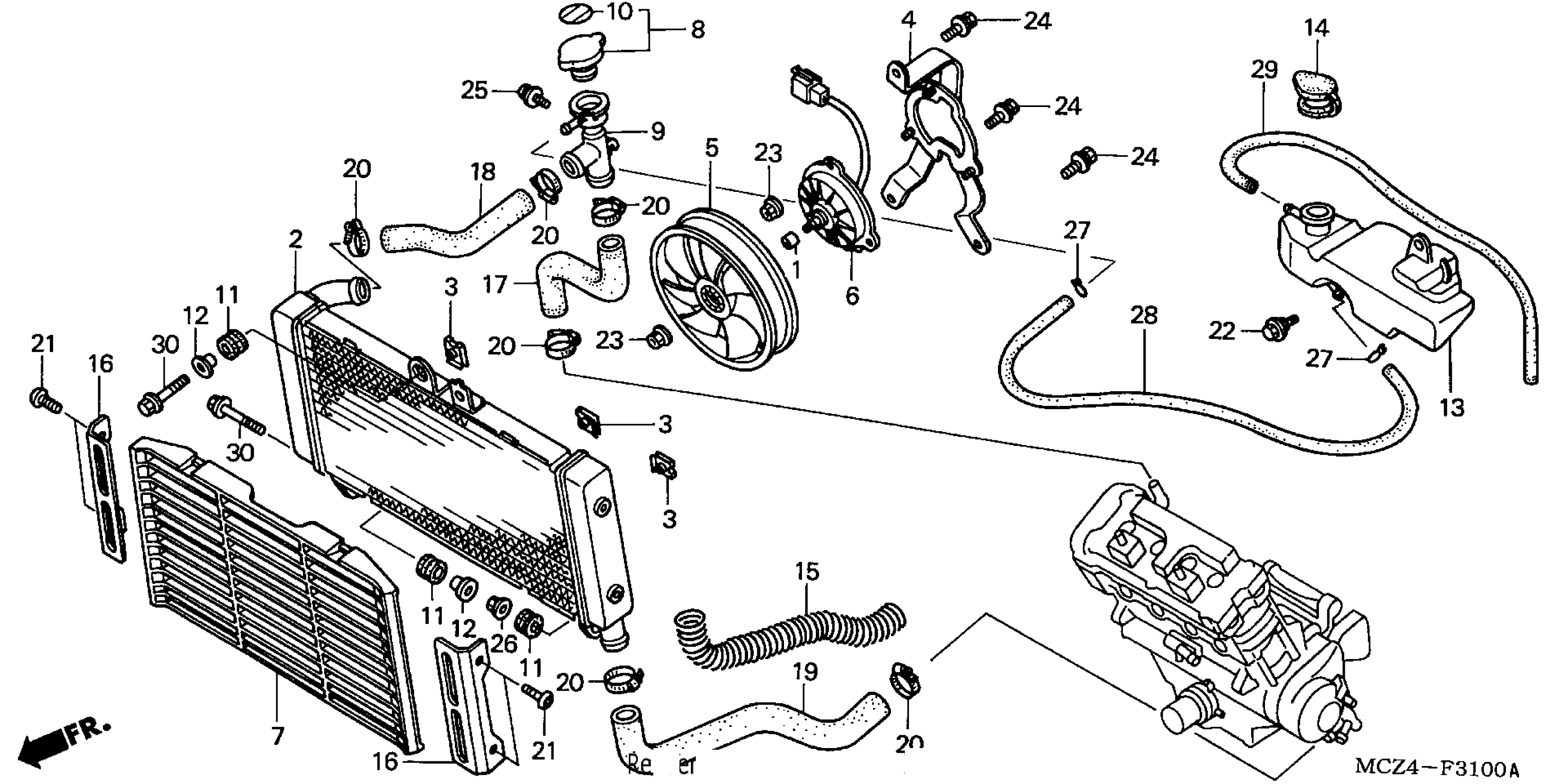

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 RADIATOR Diagram

#

Description
Price

2

RADIATOR

19010-MCZ-003

Unavailable

3

NUT, SETTING

19014-KEA-003

$2.95

4

SHROUD

19015-MCZ-003

$63.22

5

FAN, COOLING

19020-MCF-013

$45.51

6

MOTOR ASSY., FAN

19030-MCZ-000

Unavailable

7

GRILLE, RADIATOR

19032-MCZ-010

Unavailable

8

CAP, RADIATOR

19037-GEE-710

$27.80

9

NECK, FILLER

19038-MAL-601

Unavailable

10

LABEL, RADIATOR CAP

19046-PAA-A00

$3.25

11

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

12

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.29

13

TANK, RESERVE

19101-MCZ-000

Unavailable

14

CAP, RESERVE TANK

19104-MB0-700

$11.16

15

PROTECTOR, RADIATOR HOSE (LOWER)

19120-MCZ-000

Unavailable

16

COVER, RADIATOR SIDE

19150-MCZ-000

Unavailable

17

HOSE A, RADIATOR (UPPER)

19501-MCZ-000

Unavailable

18

HOSE B, RADIATOR (UPPER)

19502-MCZ-000

Unavailable

19

HOSE, RADIATOR This part replaces 19503-MCZ-000.

19503-MER-D00

Unavailable

20

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

21

SCREW, PAN (6X10)

90105-MM4-000

$2.04

22

BOLT, FLANGE (6MM)

90111-162-000

$2.66

23

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

24

BOLT-WASHER (6X14)

93401-06014-07

$1.50

25

SCREW-WASHER (4X12)

93891-04012-08

$1.06

26

NUT, FLANGE (6MM)

94050-06000

$0.60

27

CLIP, TUBE (B10)

95002-02100

$1.75

28

BULK HOSE, VACUUM (5.5X3000) (5.3X780)

95005-55003-20M

$36.46

29

BULK HOSE, VACUUM (5X3000) (5X900)

95005-50003-30M

$22.30

30

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
