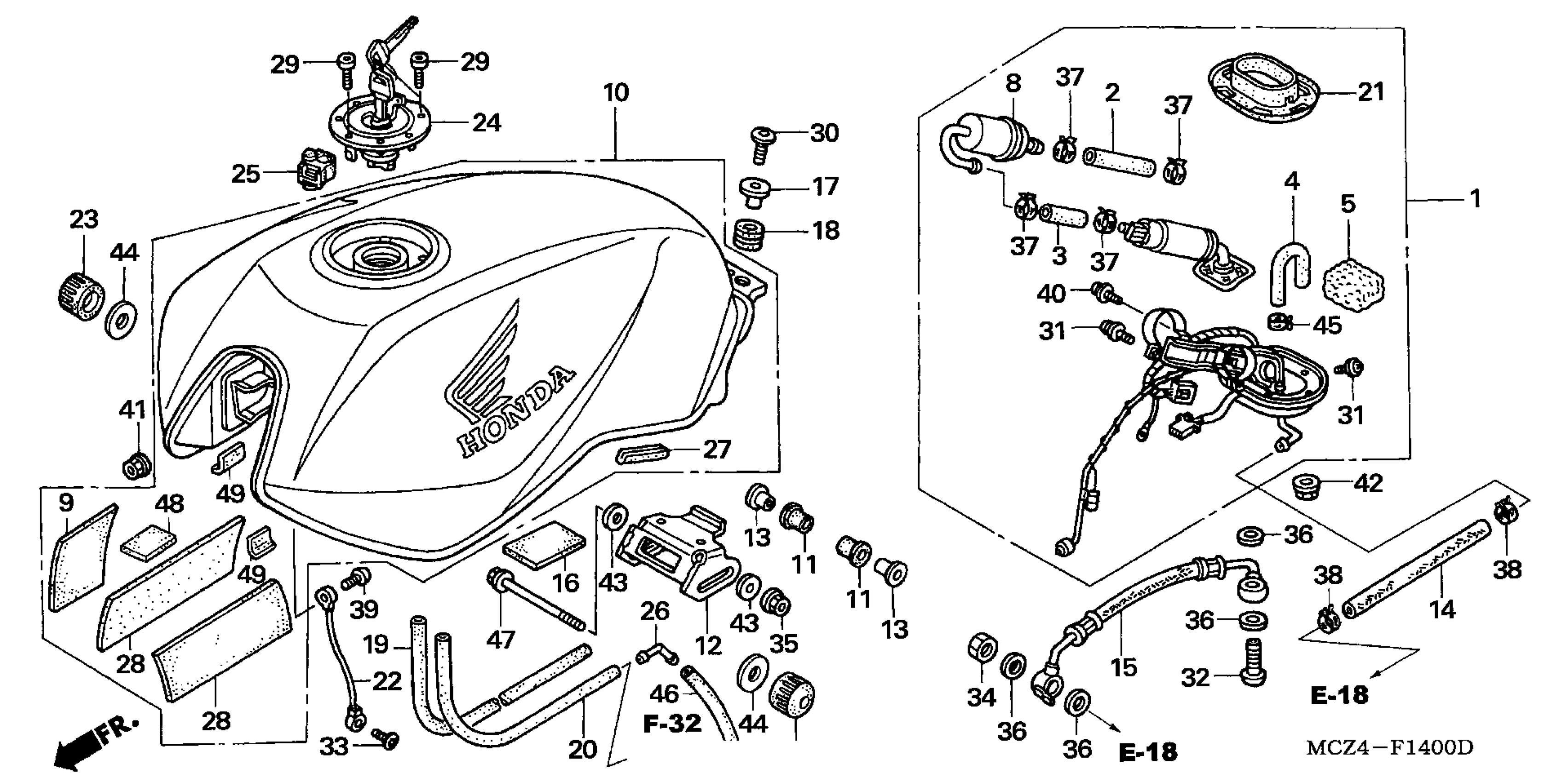

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-MCZ-D20

$592.81

2

HOSE A, PUMP

16711-MAT-D00

$5.10

3

HOSE B, PUMP

16712-MAT-D01

$3.56

4

TUBE, FUEL PUMP RETURN

16713-MBG-010

$3.71

5

FILTER, FUEL RETURN

16714-MBG-000

$8.42

8

FILTER, FUEL

16900-MBG-013

$63.89

9

MAT, CARBURETOR COVER

17269-MZ5-920

$3.65

10

TANK SET, FUEL (TYPE1) (WL)

17500-MCZ-A30ZA

$1,005.43

11

CUSHION, RR. FUEL TANK PIVOT

17506-MCZ-000

$8.35

12

STAY, RR. FUEL TANK

17516-MCZ-000

$10.12

13

COLLAR, TANK SETTING

17517-MCZ-000

$3.84

14

HOSE, FUEL RETURN

17525-MCZ-003

Unavailable

15

HOSE, FUEL FEED

17527-MCZ-003

Unavailable

16

CUSHION, RR. FUEL TANK

17528-MCZ-000

Unavailable

17

COLLAR, TANK

17530-MCZ-000

Unavailable

18

RUBBER, TANK

17531-MCZ-000

Unavailable

19

TUBE, DRAIN

17543-MCZ-000

Unavailable

20

TUBE, BREATHER

17544-MCZ-000

Unavailable

21

GASKET, BASE

17574-MCZ-000

$11.79

22

CABLE, FUEL TANK STOPPER

17575-MCZ-000

Unavailable

23

CUSHION, FR. FUEL TANK

17611-425-000

$7.81

24

CAP COMP.,FUEL FILL This part replaces 17620-MCC-013.

17620-MCC-033

$198.63

25

RUBBER, BREATHER SEAL

17646-MN8-700

$18.87

26

JOINT, TUBE

19103-ML7-000

$5.95

27

RUBBER, PROTECTOR

64121-MCZ-000

$2.10

28

MAT, SIDE COVER

83415-KFG-300

Unavailable

29

BOLT, SOCKET (4X21)

90074-MT4-000

$2.91

30

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.26

31

SCREW-WASHER, LOCK (4X8)

90105-MBG-000

$1.40

32

BOLT, BANJO (12MM)

90108-MBG-000

$9.60

33

SCREW, PAN (6X14)

90118-MR1-000

$2.95

34

NUT A, SEALING (12MM)

90201-PD1-000

$4.66

35

NUT, U (6MM)

90301-473-003

$3.89

36

WASHER, SEALING (12MM)

90428-PD6-003

$4.96

37

CLAMP, TUBE (D12)

91405-PD1-004

$8.27

38

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.66

39

SCREW, PAN (5X14)

93500-05014-0A

$0.76

40

SCREW-WASHER (6X14)

93893-06014-08

$1.15

41

NUT, FLANGE (5MM)

94050-05000

$1.21

42

NUT, FLANGE (6MM)

94050-06080

$0.60

43

WASHER, PLAIN (6MM)

94103-06000

$0.91

44

WASHER, PLAIN (10MM)

94103-10000

$0.62

45

CLAMP, TUBE (D8.5)

95002-40850-04

$2.34

46

BULK HOSE, VACUUM (8X1000) (8X510)

95005-80001-50M

Unavailable

47

BOLT, FLANGE (6X100)

95701-06100-00

$2.77

48

MAT, AIR CLEANER DUCT

83416-KEA-K00

$2.15

49

TAPE B, TANK GUARD

17528-KCZ-930

$3.44
