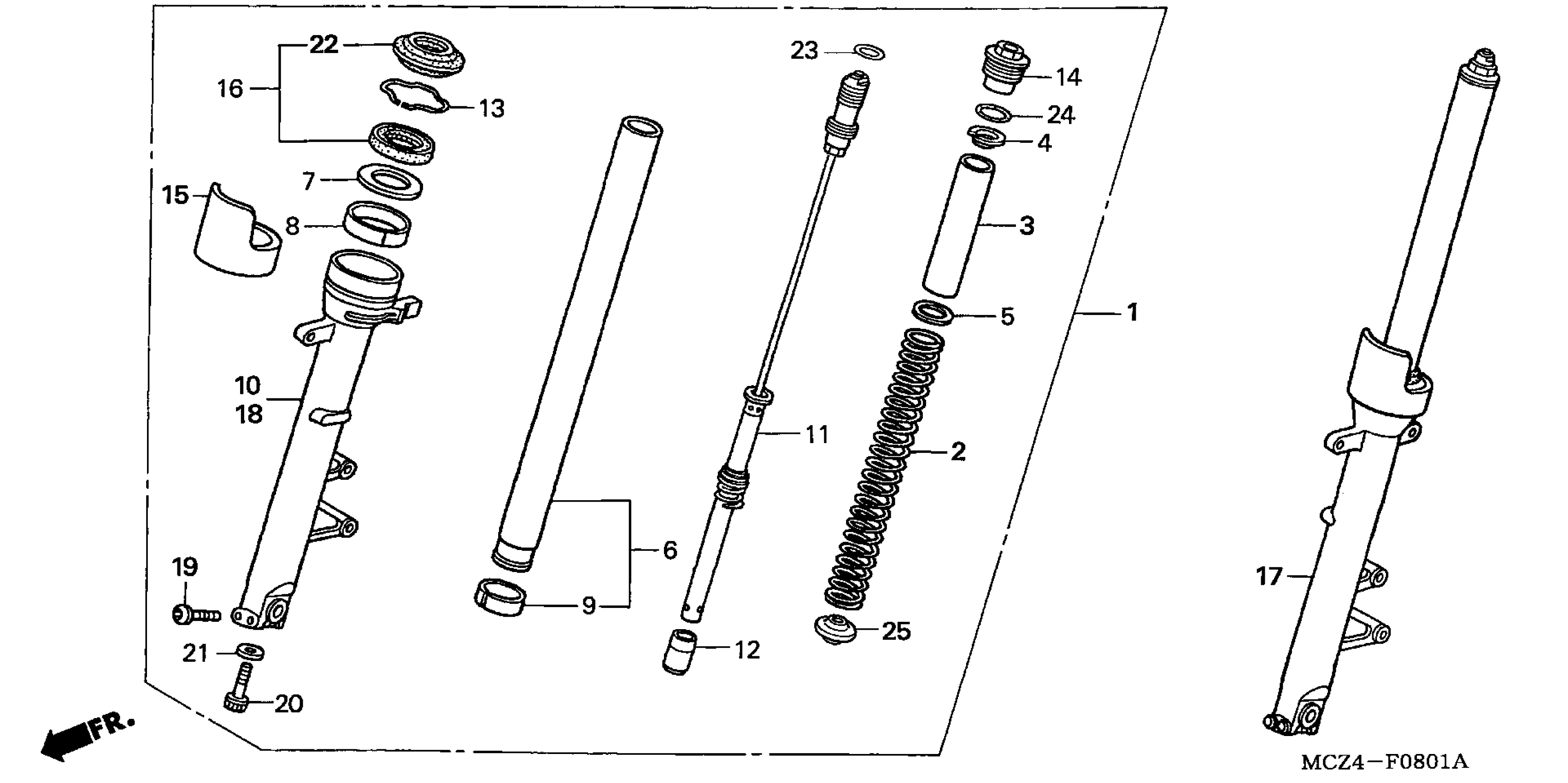

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 FRONT FORK ('04-) Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MCZ-D11

Unavailable

2

SPRING, FR. FORK

51401-MCZ-D11

$64.57

3

COLLAR, SPRING

51402-MV8-901

$16.12

4

SEAT, SPRING

51404-MR7-003

$10.28

5

SEAT, SPRING

51405-KA4-711

$5.80

6

PIPE, FR. FORK

51410-MCZ-013

$376.68

7

RING, BACK-UP

51412-KA4-711

$8.66

8

BUSH, GUIDE This part replaces 51414-MAZ-003.

51414-MAZ-751

$6.64

9

BUSH, SLIDER This part replaces 51415-MAZ-003.

51415-MCF-003

$27.47

9

BUSH, SLIDER

51415-MCF-003

$27.47

10

CASE, R. (LOWER)

51420-MCZ-641

Unavailable

11

DAMPER, FR.

51430-MCZ-D11

$214.25

12

PIECE, OIL LOCK

51432-MS2-003

$29.04

13

RING, OIL SEAL STOPPER

51447-KA4-711

$4.20

14

BOLT, FR. FORK

51454-MBW-D61

$30.13

15

PROTECTOR, FORK PIPE

51460-MT3-611

$10.59

16

SEAL SET, FR. FORK

51490-MEJ-003

$20.17

17

FORK ASSY., L. FR.

51500-MCZ-D11

Unavailable

18

CASE, L. (LOWER)

51520-MCZ-641

Unavailable

19

BOLT, SOCKET (8X45)

90109-MBT-611

$3.45

20

BOLT, SOCKET (8X27)

90116-383-721

$4.77

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

22

DUST SEAL This part replaces 91254-MEJ-003.

91254-MEJ-013

$11.51

23

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.22

23

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.22

24

O-RING (35.2X2.4)

91356-KA4-711

$3.51

25

COLLAR, SPRING

51405-MCZ-D11

$6.36
