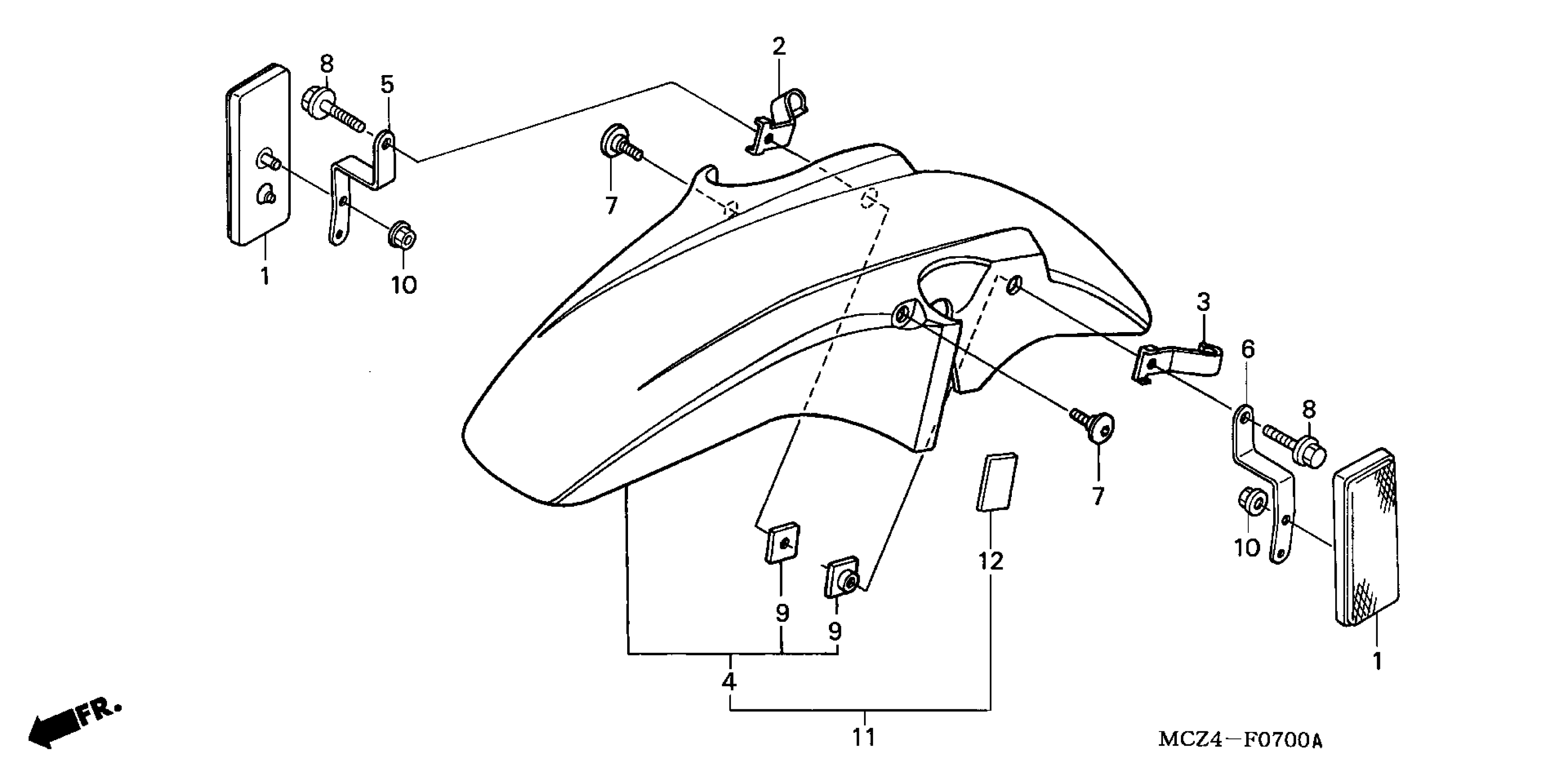

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 FRONT FENDER Diagram

#

Description
Price

1

REFLECTOR, REFLEX

33741-MCA-601

$28.99

2

CLAMP, R. FR. BRAKE HOSE

45155-MCZ-000

$4.00

3

CLAMP, L. FR. BRAKE HOSE

45156-MCZ-000

$4.19

5

STAY, R. FR. REFLECTOR

61101-MCZ-670

Unavailable

6

STAY, L. FR. REFLECTOR

61102-MCZ-670

Unavailable

7

SCREW, PAN (6X11)

90106-KY2-701

$4.05

8

BOLT, FLANGE (6X25)

90106-MCZ-000

Unavailable

9

NUT, SPECIAL (6MM)

90302-MCZ-000

$2.91

10

NUT, FLANGE (5MM)

94050-05070

$1.19

11

FENDER, FR. *R101CU* (CANDY GLORY RED-U)

61100-MCZ-020ZD

Unavailable

12

RUBBER, FR. FENDER

81214-MEJ-720

$1.19
