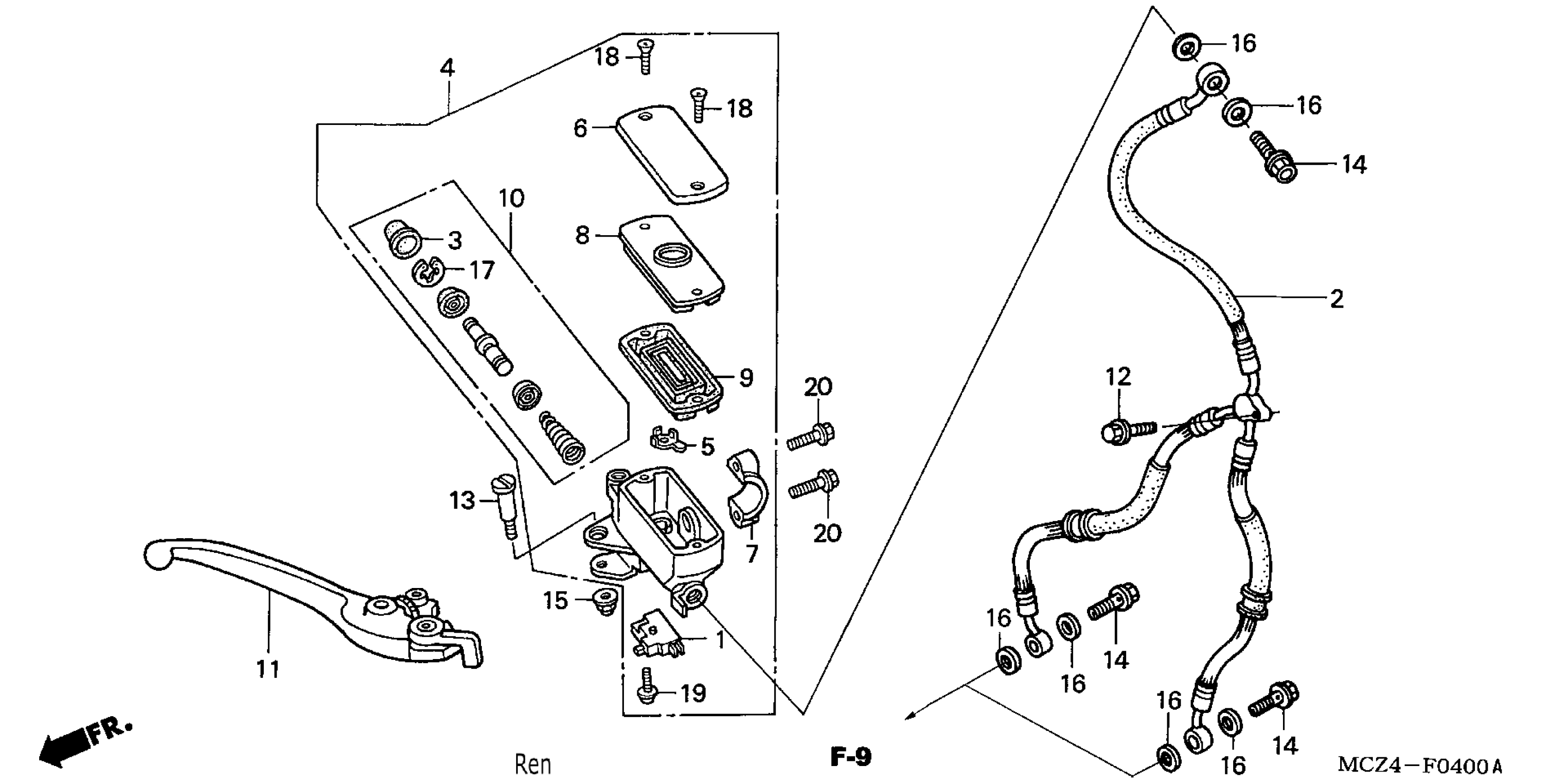

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

2

HOSE, FR. BRAKE

45125-MCZ-003

Unavailable

3

BOOT

45504-410-003

$11.17

4

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MZ1-305

$327.03

5

PROTECTOR

45512-MA6-006

$4.09

6

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

7

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

8

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

9

DIAPHRAGM

45520-MM5-006

$13.87

10

MASTER CYLINDER SET

45530-MA4-671

$43.86

11

LEVER ASSY., R. HANDLE (COO) This part replaces 53170-MBR-J11.

53170-MEW-305

$51.24

12

BOLT, FLANGE (6X20)

90108-MCZ-000

$1.24

13

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

14

BOLT, OIL (10X22)

90145-MS9-612

$6.99

15

NUT, CAP (6MM)

90201-415-000

$1.99

16

WASHER, OIL BOLT

90545-300-000

$6.56

17

CIRCLIP

90651-MA5-671

$2.38

18

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

18

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

19

SCREW-WASHER (4X12)

93893-04012-07

$1.24

19

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

20

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32
