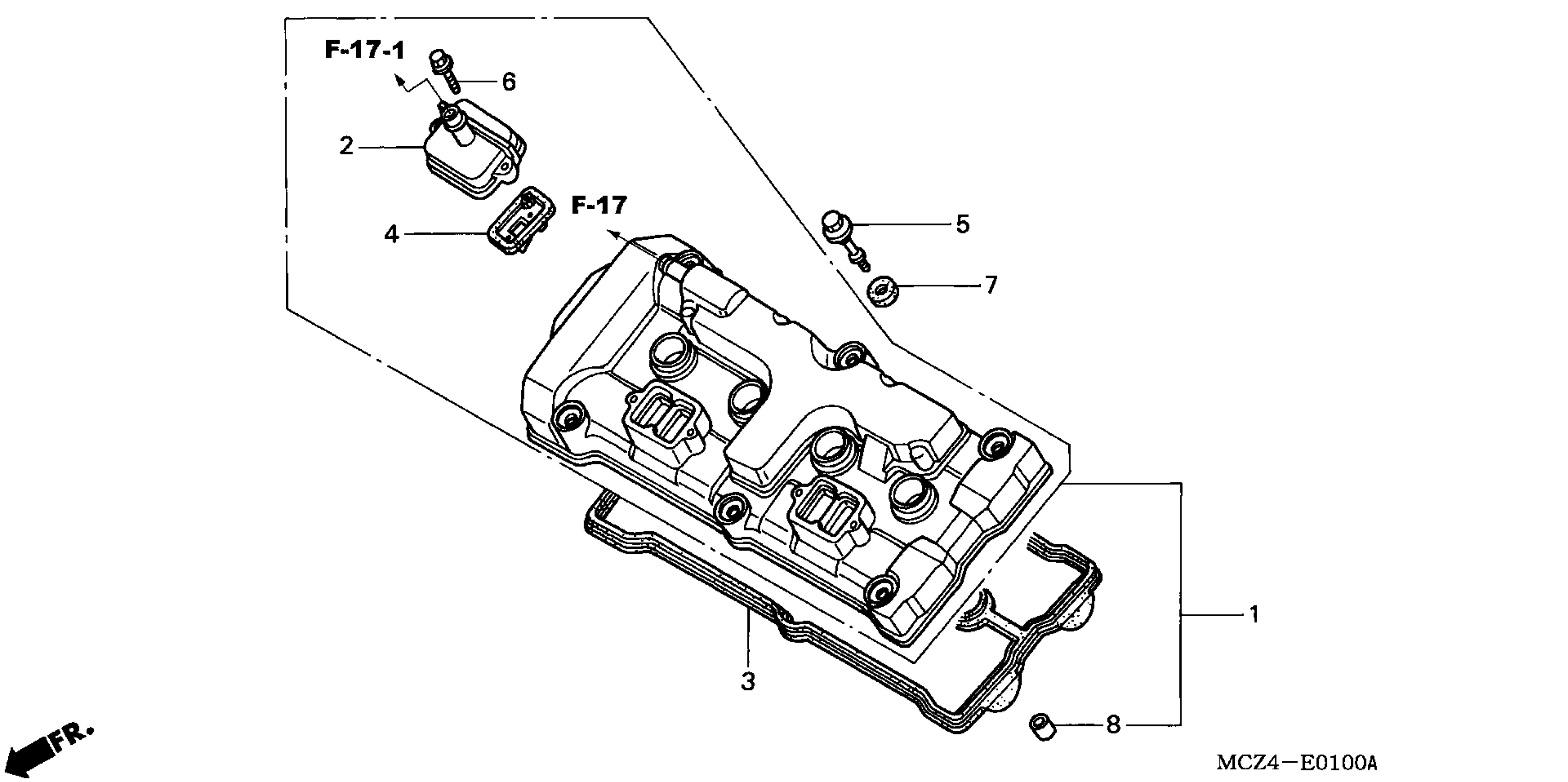

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 CYLINDER HEAD COVER Diagram

COVER ASSY., CYLINDER HEAD

12310-MCZ-D20

$379.93

COVER, REED VALVE

12331-MBW-000

$36.54

GASKET, HEAD COVER

12391-MCZ-000

$57.42

VALVE, REED This part replaces 18601-MCJ-000.

18601-MCJ-003

$13.01

VALVE, REED

18601-MCJ-003

$13.01

BOLT, HEAD COVER

90017-MCZ-000

$4.85

BOLT, FLANGE (6X20)

90020-ZC3-000

$1.77

RUBBER, MOUNTING

90543-MV9-670

$4.60

PIN, DOWEL (8X14)

94301-08140

$2.04
