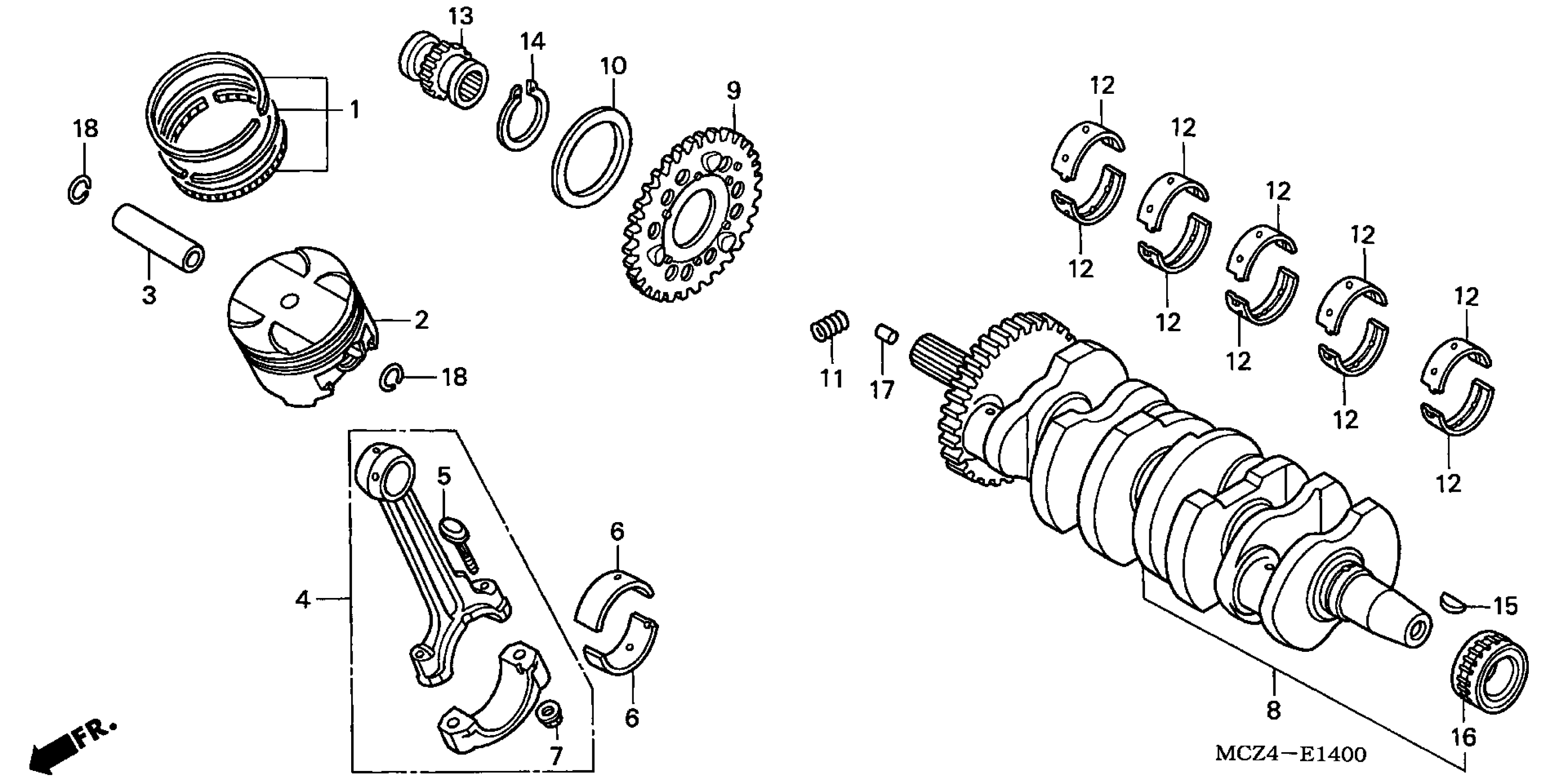

Honda CB900FA (07) 919, JPN, VIN# JH2SC480-7M500001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-MAS-315

$51.49

1

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-MAS-315

$46.62

2

PISTON (STD)

13101-MCZ-000

$68.67

2

PISTON (OVER SIZE) (0.25) | (Optional).

13102-MCZ-305

$80.70

3

PIN, PISTON

13111-MAS-000

Unavailable

4

ROD ASSY., CONNECTING

13210-MAS-000

Unavailable

5

BOLT, CONNECTING ROD

13213-ML7-020

$8.00

6

BEARING A, CONNECTING ROD (BLUE)

13214-MAS-003

$13.85

6

BEARING B, CONNECTING ROD (BLACK)

13215-MAS-003

Unavailable

6

BEARING C, CONNECTING ROD (BROWN)

13216-MAS-003

$13.85

6

BEARING D, CONNECTING ROD (GREEN)

13217-MAS-003

$13.06

6

BEARING E, CONNECTING ROD (YELLOW)

13218-MAS-003

$13.06

7

NUT, CONNECTING ROD

13215-ML7-000

$3.89

8

CRANKSHAFT

13300-MCZ-300

$1,270.18

9

SUB-GEAR, PRIMARY (50T)

13303-MCZ-000

$60.34

10

SPRING, SUB-GEAR FRICTION

13304-MCZ-000

$11.20

11

SPRING, PRIMARY DAMPER

13306-MCZ-000

$2.02

12

BEARING A, CRANKSHAFT (BLACK)

13313-MW0-003

$13.19

12

BEARING B, CRANKSHAFT (BROWN)

13314-MW0-003

$13.19

12

BEARING C, CRANKSHAFT (GREEN)

13315-MW0-003

$13.19

12

BEARING D, CRANKSHAFT (YELLOW)

13316-MW0-003

$13.19

12

BEARING E, CRANKSHAFT (PINK)

13317-MW0-003

$13.19

13

SPROCKET, TIMING (17T)

14312-MAT-000

Unavailable

14

CIRCLIP, SPECIAL (OUTER) (42)

90601-MAS-000

$6.85

15

KEY, WOODRUFF (25X14)

90741-413-000

$2.56

16

BEARING, NEEDLE (28X41X21)

91021-MV9-671

$37.20

17

PIN, DOWEL (7X12)

94302-07120

$1.49

18

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
