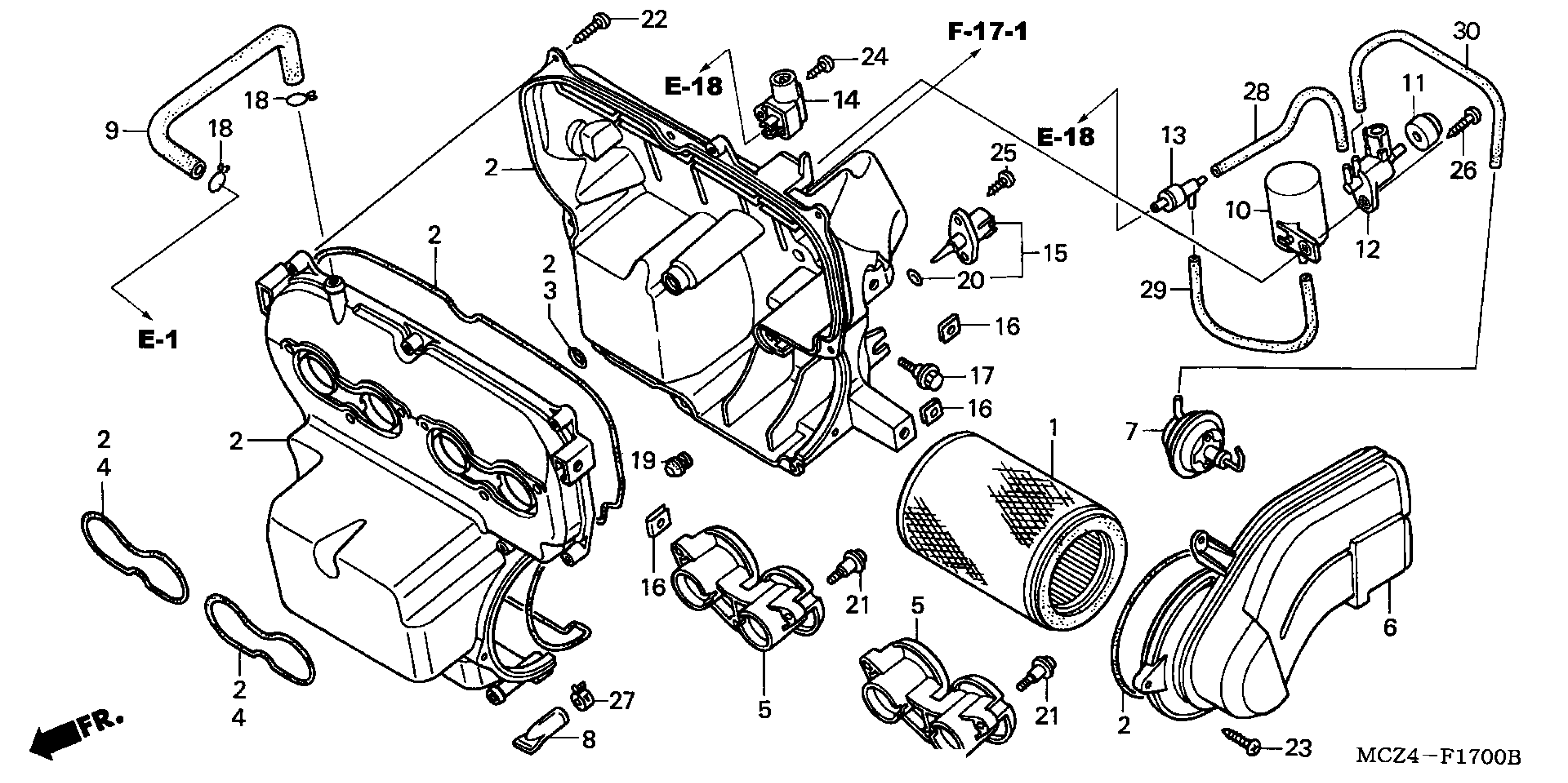

Honda CB900FA (05) 919, JPN, VIN# JH2SC480-5M300001 TO JH2SC480-5M399999 AIR CLEANER Diagram

#

Description
Price

1

AIR CLEANER

17210-MCZ-003

$37.23

2

AIR CLEANER HOUSING ASSY. This part replaces 17221-MCZ-010.

17221-MCZ-020

Unavailable

3

SEAL B, AIR CLEANER HOUSING

17223-MAT-300

$3.08

4

SEAL C, AIR CLEANER HOUSING

17224-MBW-D20

$5.34

5

FUNNEL, AIR

17225-MCZ-010

Unavailable

6

DUCT, AIR CLEANER

17230-MCZ-003

Unavailable

7

DIAPHRAGM, CONTROL VALVE

17238-MW4-003

$51.38

8

TUBE ASSY., DRAIN

17358-KR8-750

$7.96

9

TUBE, BREATHER

17554-MCZ-000

Unavailable

10

CHAMBER, VACUUM (50)

36132-PH4-671

$42.66

11

FILTER ASSY., SOLENOID VALVE

36138-PR7-A01

$34.18

12

VALVE ASSY., BYPASS CONTROL SOLENOID

36163-PV0-004

$294.10

13

VALVE, IN. AIR SHOT AIR CHECK This part replaces 36627-MN5-000.

36627-MN5-003

$42.75

13

VALVE, IN. AIR SHOT AIR CHECK

36627-MN5-003

$42.75

14

SENSOR, MAP

37830-MCF-003

$206.58

15

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$33.51

16

NUT, FENDER SETTING

84601-HA7-670

$5.54

17

BOLT, FLANGE (6MM)

90111-162-000

$2.89

18

CLIP, AIR HOSE (16MM)

90646-657-000

$7.32

19

PLUG, CONE

90899-385-000

$3.53

20

O-RING (7.5X1.5)

91303-PK2-005

$2.81

21

SCREW, PAN (5MM)

91508-MM5-000

$4.08

22

SCREW, TAPPING (5X20)

93903-25480

$1.49

23

SCREW, TAPPING (5X25)

93903-25580

$1.49

24

SCREW, TAPPING (4X14) (PO)

93911-24320

$1.49

25

SCREW, TAPPING (5X16)

93911-25420

$1.49

26

SCREW, TAPPING (5X25) (PO)

93911-25620

$1.49

27

CLAMP, TUBE (D12.5)

95002-41250-00

$1.49

28

BULK HOSE, VACUUM (3.5X1000) (3.5X120)

95005-35001-20M

$9.67

29

BULK HOSE, VACUUM (3.5X1000) (3.5X260)

95005-35001-20M

$9.67

30

BULK HOSE, VACUUM (4.5X1000) (4.5X300)

95005-45001-20M

$34.14
