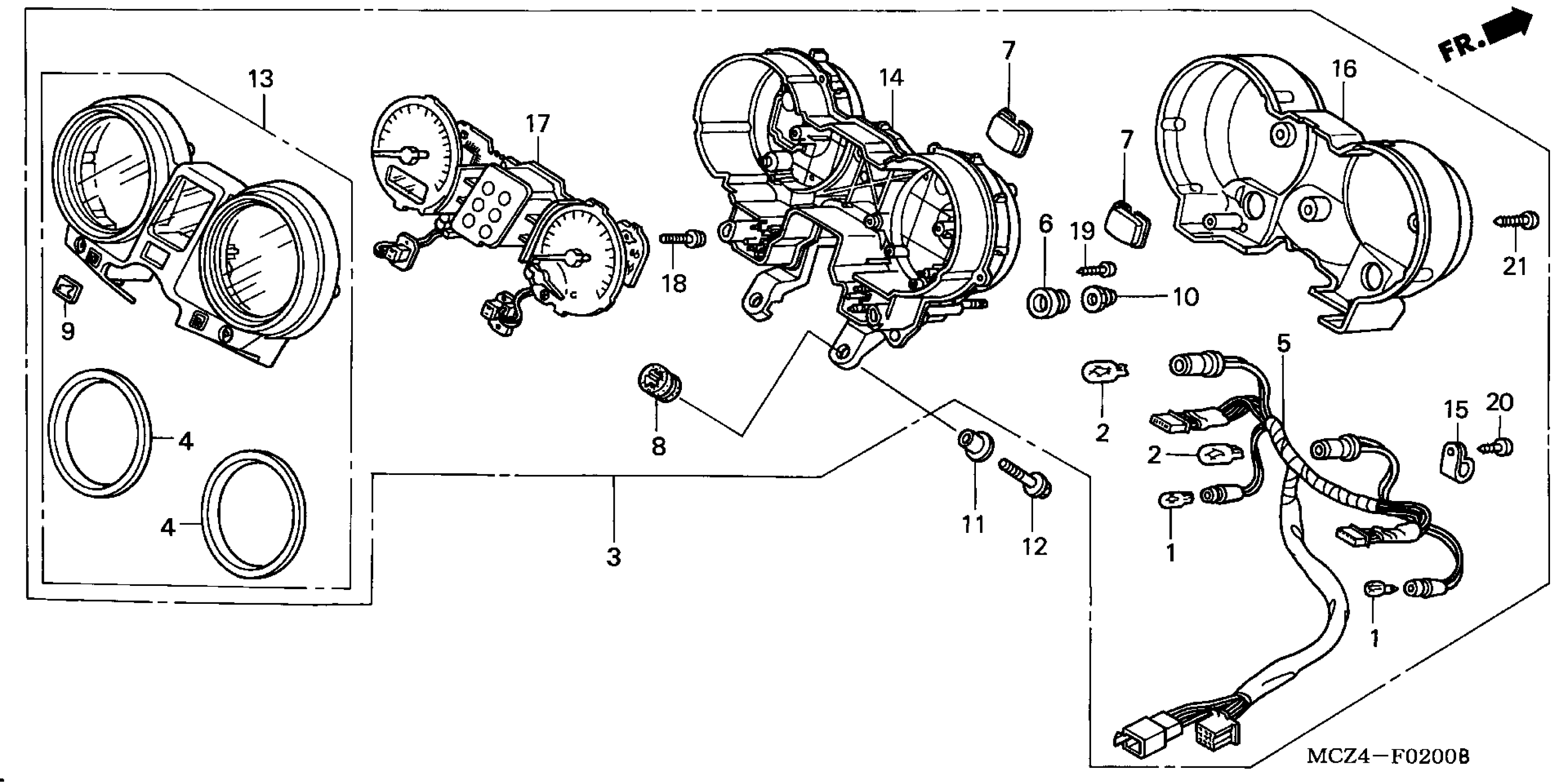

Honda CB900FA (03) 919, JPN, VIN# JH2SC480-3M100001 TO JH2SC480-3M199999 SPEEDOMETER Diagram

BULB, WEDGE BASE (12V 1.7W)

34908-MG9-951

$2.33

BULB, WEDGE BASE (12V 1.7W H.D) (NIPPON SEIKI)

34909-KW3-003

$3.31

METER ASSY., COMBINATION

37100-MCZ-A00

Unavailable

RING, METER

37101-MCZ-300

Unavailable

SOCKET

37205-MCZ-671

Unavailable

RUBBER, METER CUSHION

37215-MA6-008

$2.97

GROMMET

37218-GE1-741

$6.70

RUBBER, METER MOUNTING

37244-MB2-008

$6.87

EMBLEM, PRODUCT (MARUI) This part replaces 86150-GEZ-000.

86150-KPG-901

$3.62

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

NUT, FLANGE CAP (6MM)

90201-ZM0-J20

$2.03

COLLAR (16X6.2X) (13.5)

90502-MCE-000

$3.08

BOLT, FLANGE (6X28)

95701-06028-07

$1.49

CASE ASSY., METER (UPPER)

37101-MCZ-A00

Unavailable

CASE ASSY., METER (LOWER)

37103-MCZ-003

Unavailable

CLAMP

37121-KV3-008

$4.36

COVER, METER (OUTER)

37130-MCZ-601

Unavailable

SPEEDOMETER ASSY.

37200-MCZ-671

Unavailable

SCREW-WASHER (3X18)

90101-MCE-003

$2.07

SCREW, TAPPING (3X16)

93903-22420

$1.49

SCREW, TAPPING (4X12)

93903-24320

$1.49

SCREW, TAPPING (4X16)

93903-24480

$1.49
