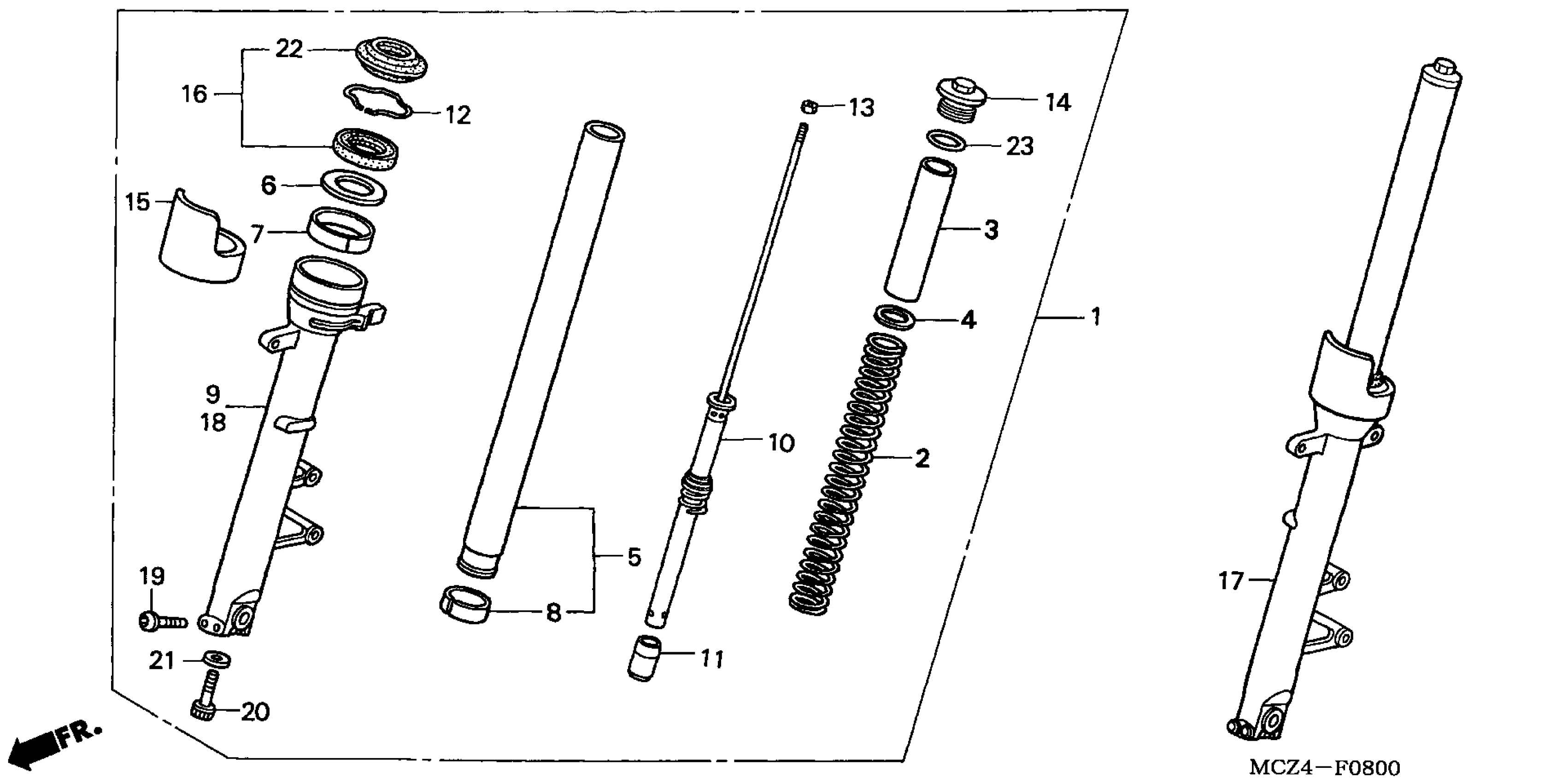

Honda CB900FA (03) 919, JPN, VIN# JH2SC480-3M100001 TO JH2SC480-3M199999 FRONT FORK ('02-'03) Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MCZ-641

Unavailable

2

SPRING, FR. FORK

51401-MCZ-003

Unavailable

3

COLLAR, SPRING

51402-ML7-921

$26.39

4

SEAT, SPRING

51405-KA4-711

$6.23

5

PIPE, FR. FORK

51410-MCZ-003

$323.22

6

RING, BACK-UP

51412-KA4-711

$9.65

7

BUSH, GUIDE

51414-MAZ-751

$7.14

8

BUSH, SLIDER

51415-MCF-003

$7.95

9

CASE, R. (LOWER)

51420-MCZ-641

Unavailable

10

DAMPER, FR.

51430-MCZ-003

Unavailable

11

PIECE, OIL LOCK

51432-MS2-003

$30.07

12

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

13

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

14

BOLT, FR. FORK

51454-MZ1-003

$87.64

15

PROTECTOR, FORK PIPE

51460-MT3-611

$11.80

16

SEAL SET, FR. FORK

51490-MCF-000

$27.25

17

FORK ASSY., L. FR.

51500-MCZ-641

Unavailable

18

CASE, L. (LOWER)

51520-MCZ-641

Unavailable

19

BOLT, SOCKET (8X45)

90109-MBT-611

$3.79

20

BOLT, SOCKET (8X27)

90116-383-721

$5.13

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

22

DUST SEAL

91256-MCF-003

$14.23

23

O-RING (35.2X2.4)

91356-KA4-711

$3.76
