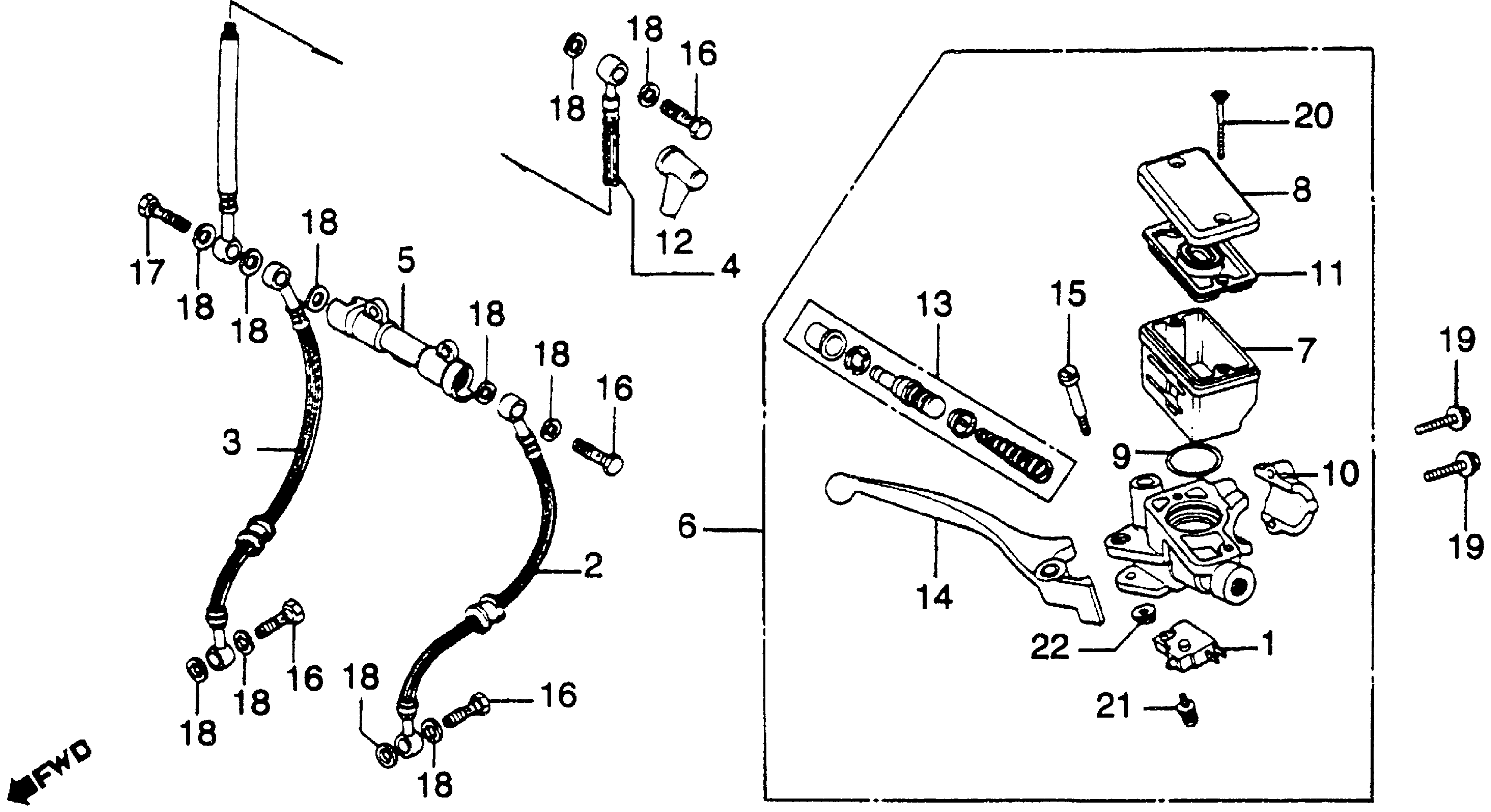

Honda CB900CA (82) 900 CUSTOM, USA, VIN# 1HFSC040-CA200101 TO 1HFSC040-CA214339 FR. BRAKE MASTER CYL. 82 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$21.98

2

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45124-461-751

Unavailable

3

HOSE, R. FR. BRAKE (NOT AVAILABLE)

45125-461-751

Unavailable

4

HOSE ASSY. B, FR. BRAKE (NOT AVAILABLE)

45126-461-003

Unavailable

5

JOINT, TWO-WAY (NOT AVAILABLE)

45127-461-003

Unavailable

6

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MA5-405)

45500-MA5-672

Unavailable

7

CUP, OIL

45511-MA5-671

$40.13

8

CAP, OIL CUP

45513-MA5-671

Unavailable

9

O-RING (26.7X2.4)

45516-166-006

$6.35

10

HOLDER, MASTER CYLINDER

45517-MA5-671

$26.32

11

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$16.27

11

DIAPHRAGM

45520-MA5-672

$16.27

12

BOOT, MASTER CYLINDER

45522-422-000

$7.79

13

MASTER CYLINDER SET

45530-MA5-671

$64.38

14

LEVER, R. HANDLEBAR

53175-MA5-671

Unavailable

15

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

16

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$8.32

16

BOLT, OIL

90145-300-010

$8.32

17

BOLT, OIL This part replaces 90145-422-010.

90145-422-020

Unavailable

18

WASHER, OIL BOLT

90545-300-000

$3.72

19

BOLT-WASHER (6X25)

93401-06025-07

Unavailable

19

BOLT-WASHER (6X25) This part replaces 93481-06025-07.

93401-06025-07

Unavailable

20

SCREW, FLAT (4X45)

93600-04045-1G

$0.84

21

SCREW-WASHER (4X12)

93893-04012-08

$1.22

21

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.22

22

NUT, FLANGE (6MM)

94050-06000

$0.59
