Partiron

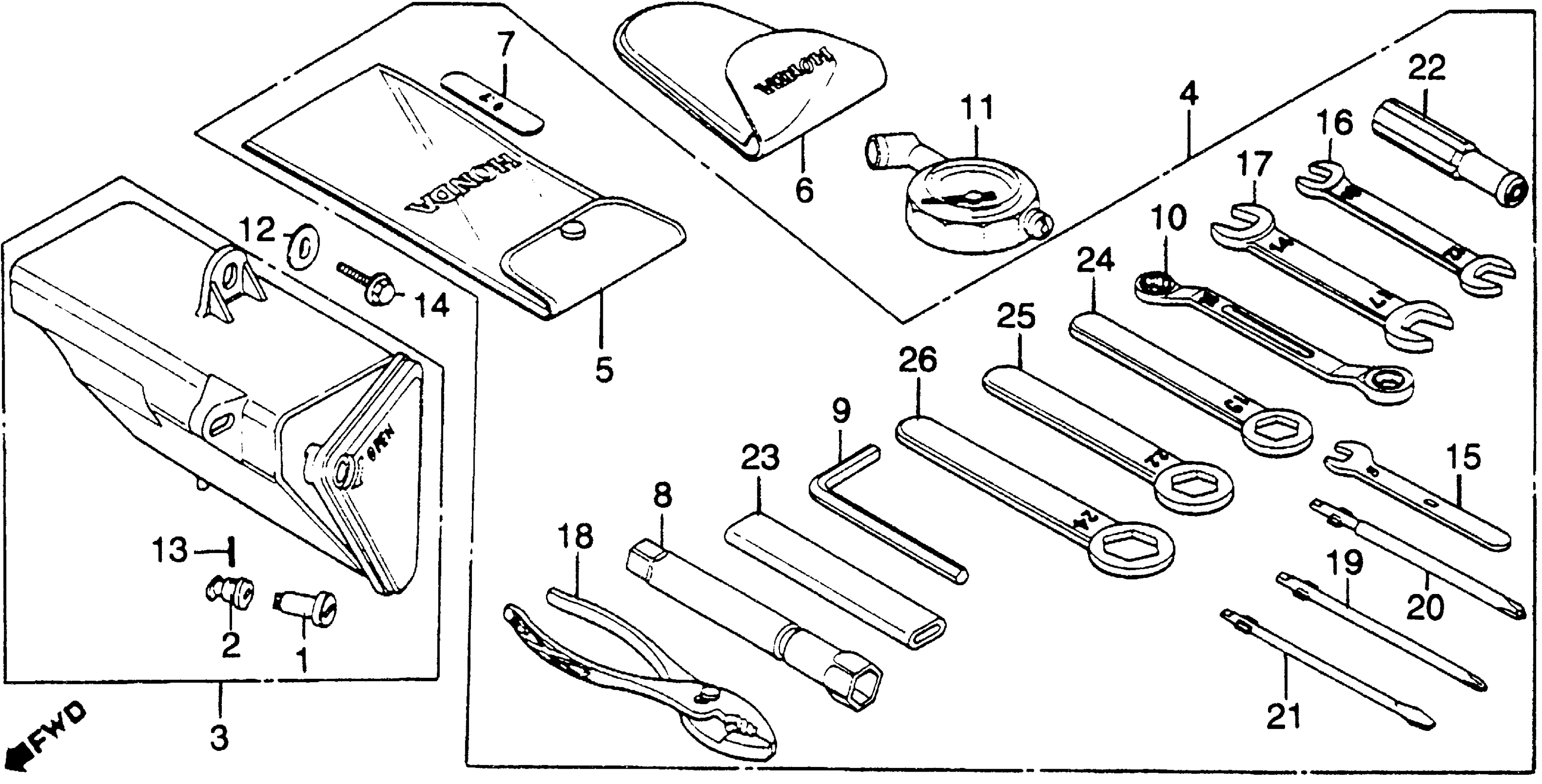

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 TOOLS Diagram

#

Description
Price

1

BODY, KEY

83507-438-000

Unavailable

2

STOPPER, KEY BODY

83508-KBG-000

$2.90

2

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

3

BOX ASSY., TOOL (NOT AVAILABLE)

83520-461-000

Unavailable

4

TOOL SET (NOT AVAILABLE)

89010-461-000

Unavailable

5

BAG, TOOL

89101-ME5-670

Unavailable

5

BAG, TOOL This part replaces 89101-300-010.

89101-ME5-670

Unavailable

5

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable

6

BAG, AIR PRESSURE GAUGE

89102-469-003

$6.57

7

GAUGE, FEELER (0.7)

89103-371-000

$3.31

8

WRENCH, PLUG (NOT AVAILABLE)

89216-438-000

Unavailable

9

WRENCH, HEX. (6MM)

89221-371-000

$4.28

10

WRENCH, EYE (10X12)

89227-461-000

$25.42

11

GAUGE, AIR PRESSURE

89301-461-003

Unavailable

12

WASHER (6X9)

90513-323-000

$1.84

13

PIN, SPRING (2X14)

94305-20141

$1.49

14

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

14

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

15

WRENCH (8MM) (OPEN END)

99001-08000

$6.10

16

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

17

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

18

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

19

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

21

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

22

GRIP

99003-50000

$3.27

23

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

24

WRENCH, EYE (19MM)

99006-19000

$4.16

25

WRENCH, EYE (22MM)

99006-22000

$4.16

26

WRENCH, EYE (24MM)

99006-24000

$4.29
