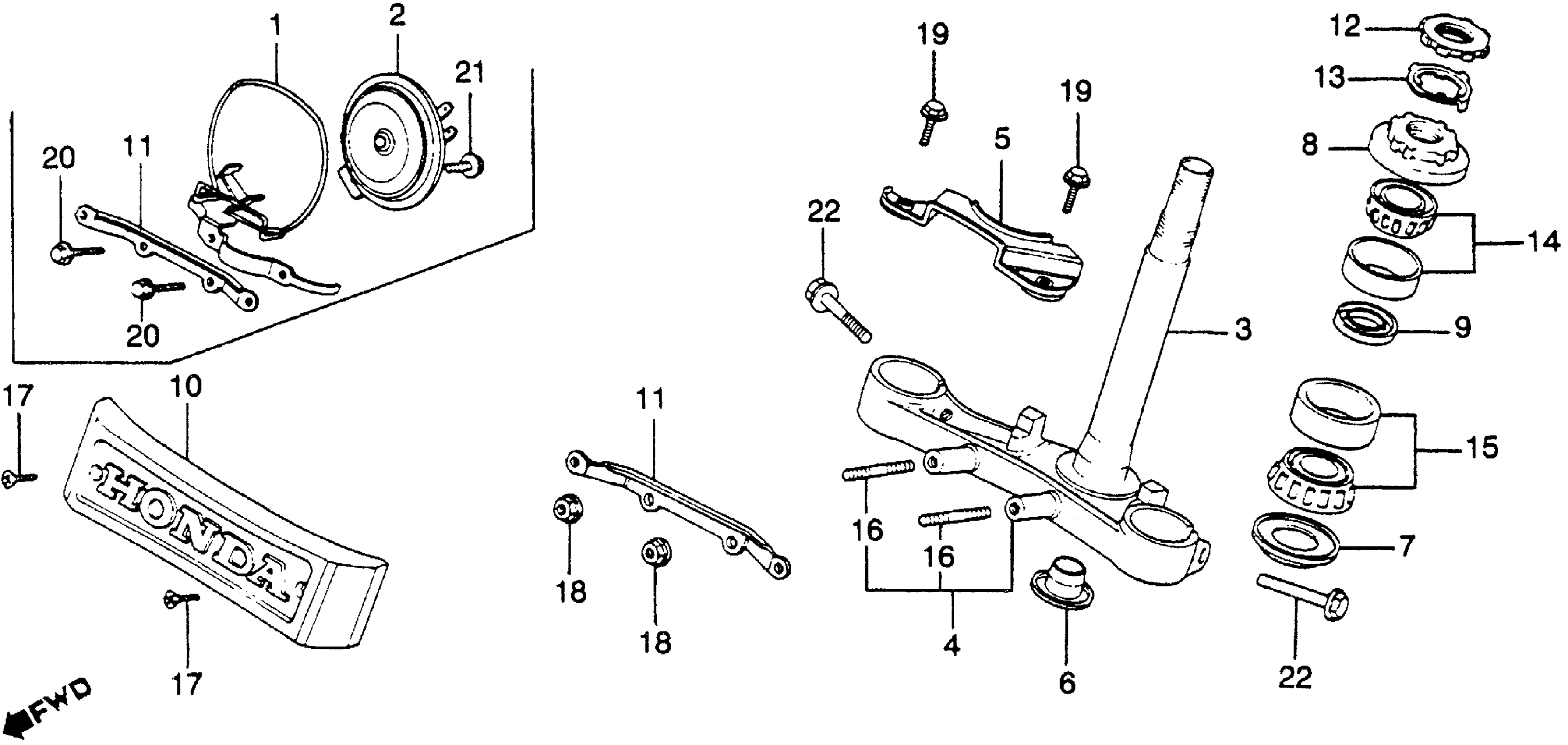

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 STEERING STEM Diagram

#

Description
Price

1

STAY, HORN (NOT AVAILABLE)

38102-461-000

Unavailable

2

HORN (NOT AVAILABLE)

38110-461-004

Unavailable

3

STEM, STEERING This part replaces 53200-461-000.

53200-461-010

Unavailable

3

STEM, STEERING

53200-461-010

Unavailable

5

PLATE, BAFFLE (NOT AVAILABLE)

53203-461-000

Unavailable

6

CAP, STEERING STEM (NOT AVAILABLE)

53205-461-000

Unavailable

7

DUST SEAL, STEERING HEAD

53214-371-010

$11.28

8

THREAD, STEERING HEAD (UPPER)

53220-422-000

$29.39

9

HOLDER, GREASE

53223-371-010

Unavailable

10

COVER, FR. This part replaces 61401-461-000.

61401-461-405

Unavailable

11

STAY, FR. COVER (NOT AVAILABLE)

61405-461-000

Unavailable

12

THREAD, STEERING HEAD TOP (B)

90302-425-830

$19.51

13

WASHER, LOCK

90506-425-830

$6.56

14

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$27.84

14

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$27.84

15

BEARING, HEAD PIPE (LOWER)

91016-371-000

$49.50

17

SCREW-WASHER (4X12) This part replaces 93700-04012-0G.

93891-04012-07

$1.04

17

SCREW-WASHER (4X12)

93891-04012-07

$1.04

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

20

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

20

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

21

BOLT, FLANGE (8X14) This part replaces 95700-08014-00.

95701-08014-00

$1.19

21

BOLT, FLANGE (8X14)

95701-08014-00

$1.19

22

BOLT, FLANGE (10X35) This part replaces 95700-10035-07.

95701-10035-07

$1.83

22

BOLT, FLANGE (10X35)

95701-10035-07

$1.83
