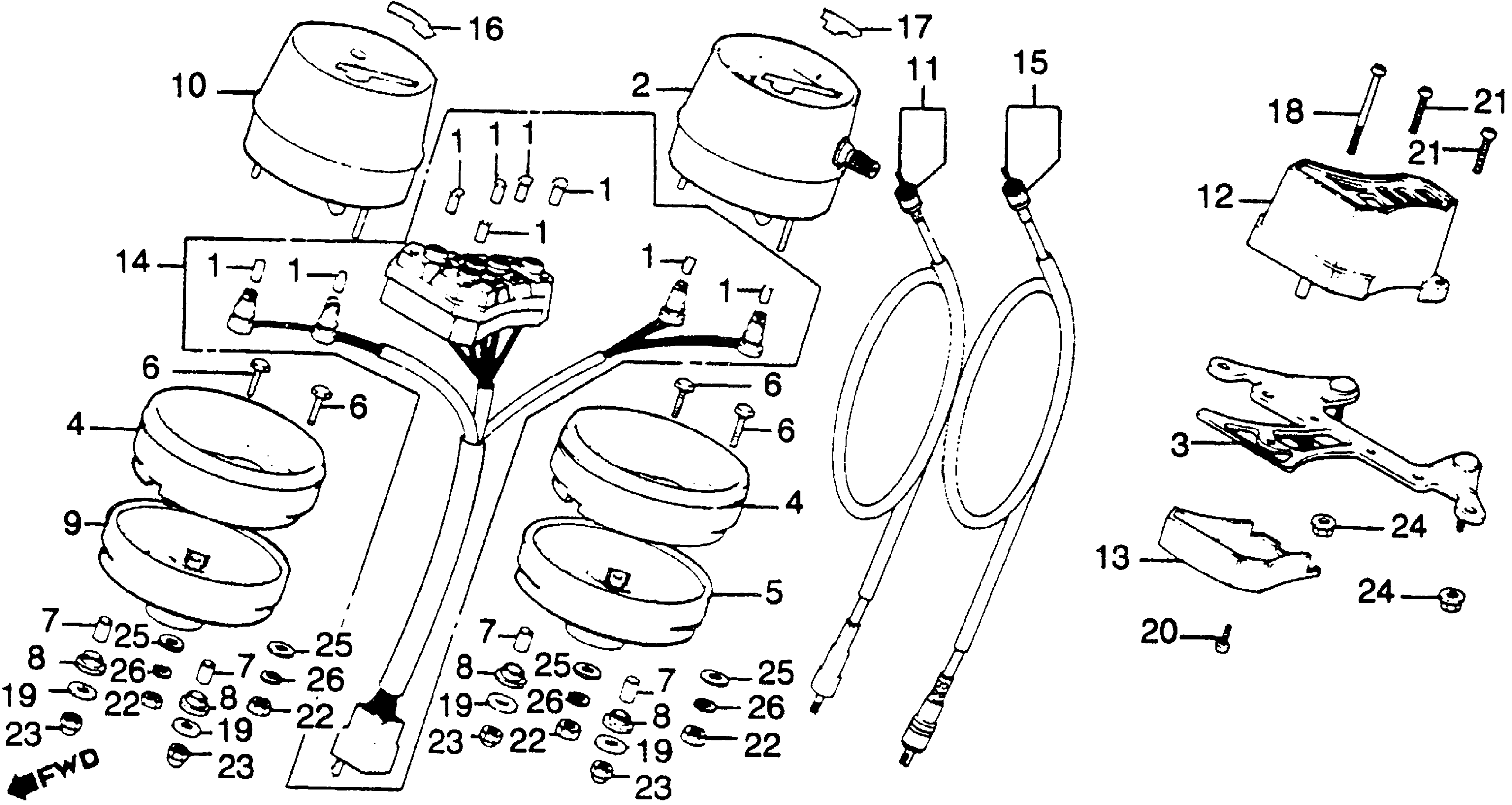

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 SPEEDOMETER + TACHOMETER Diagram

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

SPEEDOMETER ASSY. (MPH)

37200-461-670

Unavailable

BRACKET, METER (NOT AVAILABLE) This part replaces 37211-461-008.

37211-461-770

Unavailable

BRACKET, METER (NOT AVAILABLE)

37211-461-770

Unavailable

RUBBER, SPEEDOMETER

37235-323-700

$22.28

PLATE, SPEEDOMETER (LOWER)

37236-426-000

Unavailable

BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)

37238-323-700

Unavailable

COLLAR, INSTRUMENT SETTING

37243-323-700

Unavailable

RUBBER, METER SETTING

37244-307-670

$2.67

PLATE, TACHOMETER (LOWER)

37246-426-000

Unavailable

TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37250-461-670.

37250-461-772

Unavailable

CABLE ASSY., TACHOMETER

37260-MA1-730

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-MC8-000.

37260-MA1-730

Unavailable

CABLE ASSY., TACHOMETER This part replaces 37260-461-000.

37260-MA1-730

Unavailable

COVER, PILOT (UPPER) (NOT AVAILABLE)

37610-461-008

Unavailable

COVER, PILOT (LOWER) (NOT AVAILABLE)

37617-461-008

Unavailable

WIRE ASSY., PILOT (NOT AVAILABLE)

37619-461-008

Unavailable

CABLE ASSY., SPEEDOMETER

44830-426-830

$25.47

LABEL, AIR SENSOR CAUTION (NOT AVAILABLE)

87516-463-670

Unavailable

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

SCREW, OVAL (4X70) (NOT AVAILABLE)

90106-371-000

Unavailable

WASHER (6.5X18)

90545-323-700

$1.89

SCREW, PAN (4X8)

93500-04008-0G

$1.49

SCREW, PAN (4X16)

93500-04016-0G

$1.49

NUT, HEX. (6MM) This part replaces 94001-06070.

94001-06070-0S

$1.49

NUT, HEX. (6MM)

94001-06070-0S

$1.49

NUT, CAP (6MM)

94021-06020

$1.73

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94101-06700

$1.49

WASHER, SPRING (6MM)

94111-06700

$1.49
