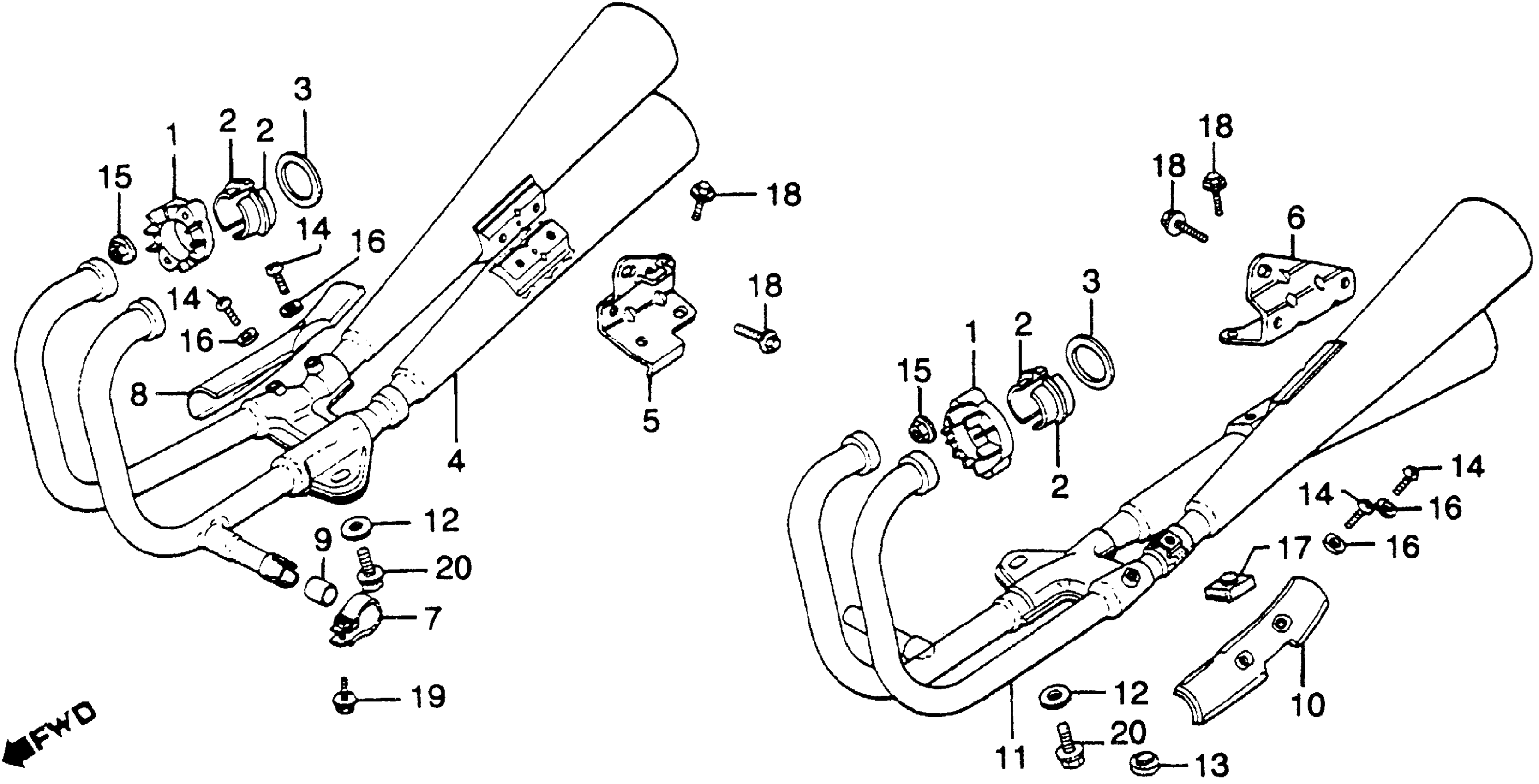

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 MUFFLER Diagram

JOINT, EX. PIPE

18231-425-000

Unavailable

COLLAR, EX. PIPE JOINT

18233-425-000

$16.69

GASKET, EX. PIPE

18291-MM5-860

$5.17

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-461-670.

18300-MG1-020

Unavailable

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-461-677.

18300-MG1-020

Unavailable

BRACKET, R. MUFFLER (NOT AVAILABLE)

18312-461-000

Unavailable

BRACKET, L. MUFFLER

18313-461-000

Unavailable

BAND, EX. PIPE

18373-461-000

$38.77

PROTECTOR, R. JOINT (NOT AVAILABLE)

18375-461-000

Unavailable

GASKET, MUFFLER

18391-HB7-000

$11.62

GASKET, MUFFLER This part replaces 18391-461-000.

18391-HB7-000

$11.62

PROTECTOR, L. JOINT (NOT AVAILABLE)

18425-461-000

Unavailable

MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18450-461-670.

18450-MG1-020

Unavailable

MUFFLER, L. EX. (NOT AVAILABLE) This part replaces 18450-461-677.

18450-MG1-020

Unavailable

WASHER (10.3MM)

90521-427-770

$2.28

RUBBER, STAND STOPPER (NOT AVAILABLE)

91451-461-000

Unavailable

SCREW, PAN (6X10)

93500-06010-0B

$1.49

SCREW, PAN (6X10) This part replaces 93500-06010-02.

93500-06010-0B

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, PLAIN (6MM)

94101-06200

$1.49

RUBBER A, STAND STOPPER

95011-61000

$1.49

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

BOLT, FLANGE (10X45) This part replaces 95700-10045-00.

95701-10045-00

$2.98

BOLT, FLANGE (10X45)

95701-10045-00

$2.98
