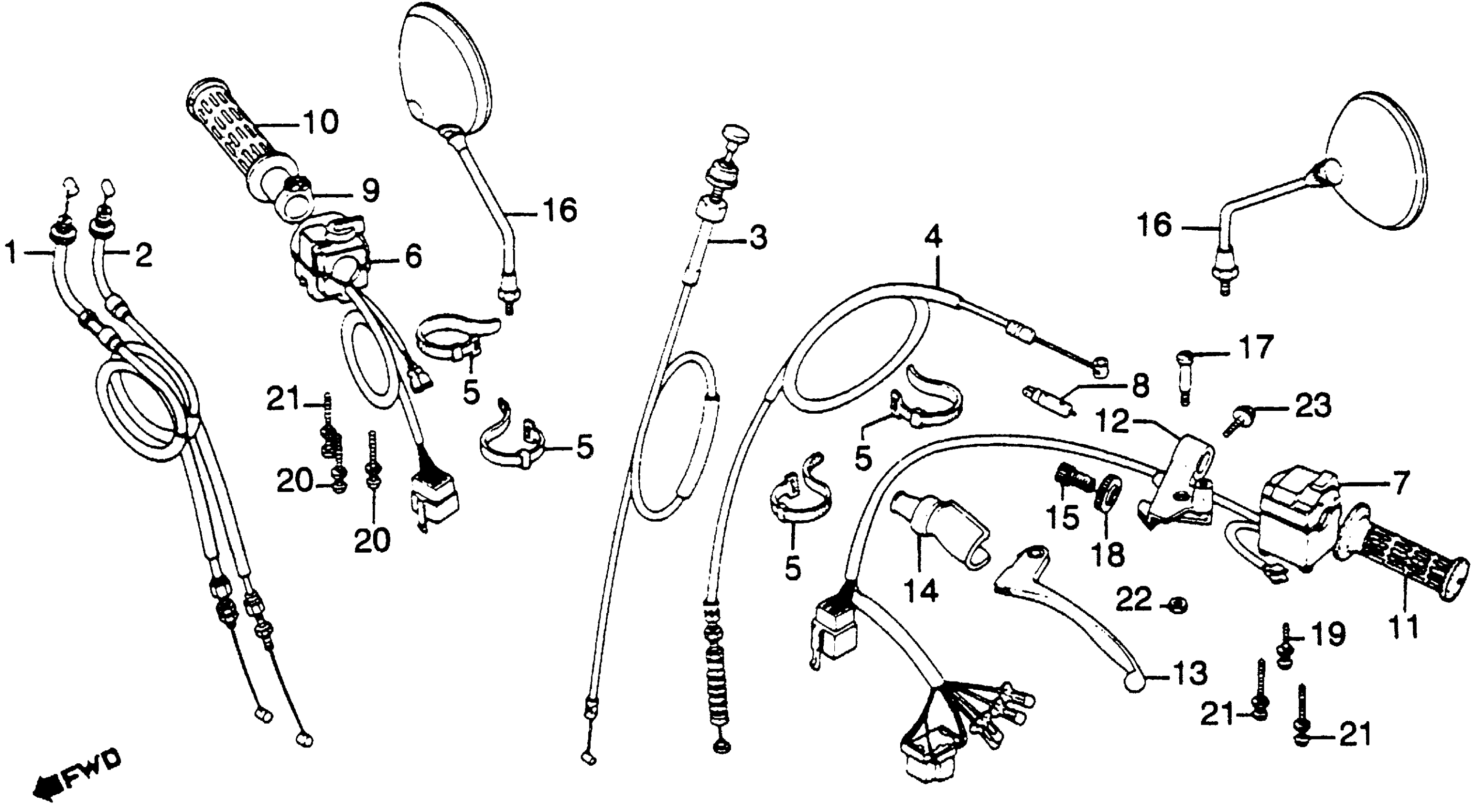

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 HANDLE LEVER + SWITCH + CABLE Diagram

CABLE A, THROTTLE This part replaces 17910-425-020.

17910-425-405

Unavailable

CABLE A, THROTTLE This part replaces 17910-425-030.

17910-425-405

Unavailable

CABLE A, THROTTLE

17910-425-405

Unavailable

CABLE B, THROTTLE This part replaces 17920-425-020.

17920-425-030

Unavailable

CABLE B, THROTTLE

17920-425-030

Unavailable

CABLE, CHOKE

17950-425-000

Unavailable

CABLE, CLUTCH

22870-ME1-670

Unavailable

CABLE, CLUTCH This part replaces 22870-461-000.

22870-ME1-670

Unavailable

BAND B1, CABLE

32161-404-000

$2.23

SWITCH,START.KILL This part replaces 35130-425-672.

35130-463-505

Unavailable

SWITCH,START.KILL This part replaces 35130-461-770.

35130-463-505

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-425-672

Unavailable

SWITCH, FR. LEVER

35330-413-003

$21.91

PIPE, THROTTLE GRIP

53141-300-010

$20.93

GRIP, R. HANDLEBAR

53165-390-780

$10.88

GRIP, L. HANDLEBAR

53166-390-780

$10.88

BRACKET, L. HANDLEBAR

53172-425-003

Unavailable

LEVER, L. HANDLE

53178-461-000

Unavailable

BOOT, HANDLEBAR

53180-425-010

$18.53

BOLT, CABLE ADJUSTING

53192-422-000

Unavailable

BOLT, CABLE ADJUSTING This part replaces 53192-425-000.

53192-422-000

Unavailable

MIRROR, R.

88100-449-770

Unavailable

BOLT, L. HANDLEBAR CONTROL LEVER PIVOT

90113-422-000

$8.96

NUT, FIXING

90321-422-000

Unavailable

SCREW-WASHER (5X28)

93891-05028-07

$1.49

SCREW-WASHER (5X32)

93891-05032-00

$1.49

SCREW-WASHER (5X32)

93891-05032-07

$1.49

SCREW-WASHER (5X45)

93891-05045-07

$1.49

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
