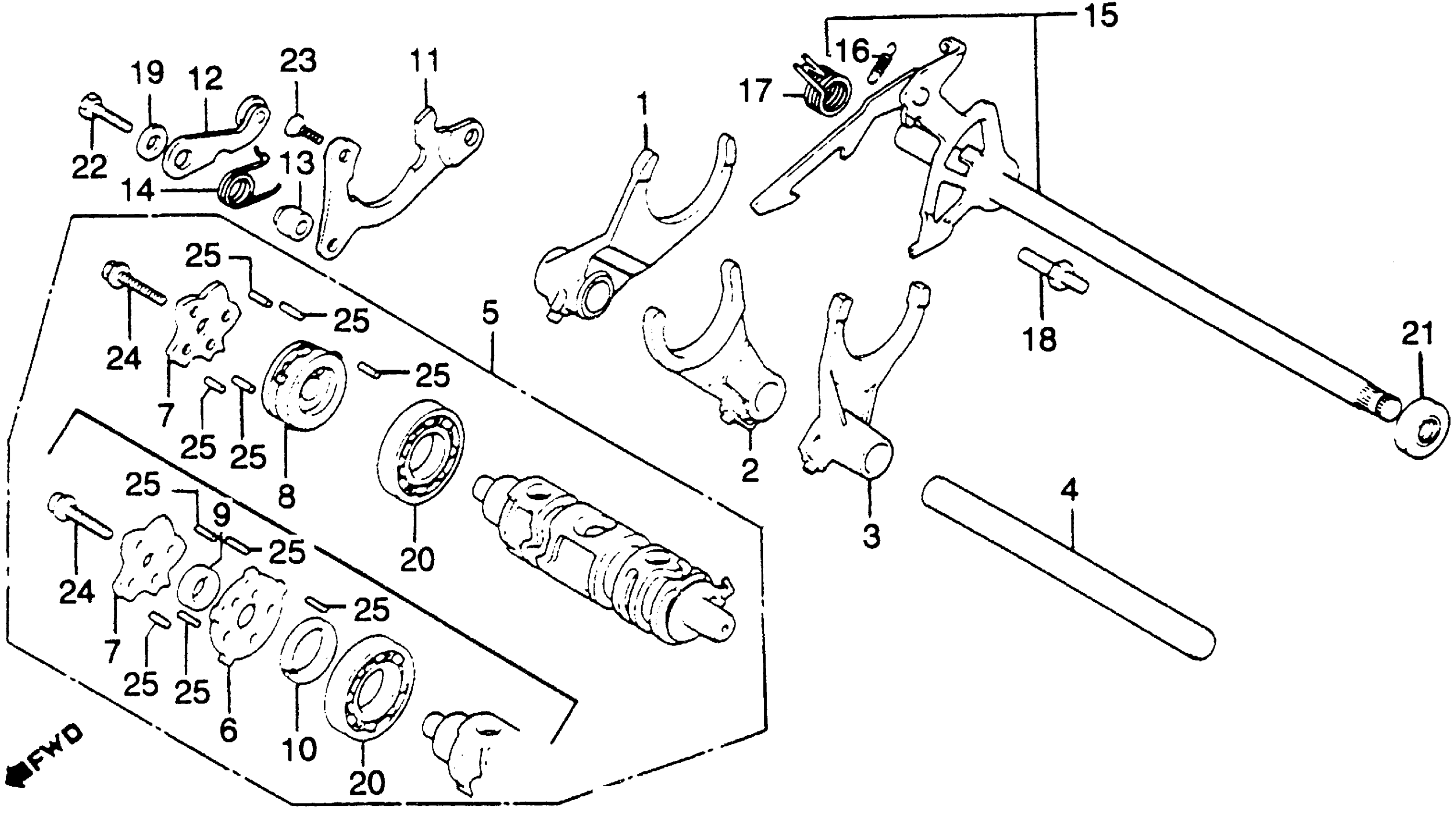

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE) This part replaces 24211-425-010.

24211-MG5-670

Unavailable

2

FORK, CENTER GEARSHIFT (NOT AVAILABLE) This part replaces 24221-425-010.

24221-MG1-670

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE) This part replaces 24231-425-000.

24231-438-670

Unavailable

4

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24261-425-000

Unavailable

5

DRUM ASSY., GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 2008689 This part replaces 24300-425-010.

24300-425-020

Unavailable

5

DRUM ASSY., GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 2008689

24300-425-020

Unavailable

5

DRUM ASSY., GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 2008690

24300-425-030

Unavailable

6

PLATE, GEARSHIFT DRUM CENTER (NOT AVAILABLE) | Use up to Engine SN 2008689 This part replaces 24302-425-310.

24302-425-320

Unavailable

6

PLATE, GEARSHIFT DRUM CENTER (NOT AVAILABLE) | Use up to Engine SN 2008689

24302-425-320

Unavailable

7

PLATE, GEARSHIFT DRUM CAM (NOT AVAILABLE)

24303-425-310

Unavailable

8

CENTER, GEARSHIFT DRUM (NOT AVAILABLE) | Use from Engine SN 2008690

24304-425-300

Unavailable

9

COLLAR, GEARSHIFT DRUM CENTER (NOT AVAILABLE) | Use up to Engine SN 2008689 This part replaces 24305-413-000.

24305-443-000

Unavailable

9

COLLAR, GEARSHIFT DRUM CENTER (NOT AVAILABLE) | Use up to Engine SN 2008689

24305-443-000

Unavailable

10

COLLAR, GEARSHIFT DRUM CENTER (NOT AVAILABLE) | Use up to Engine SN 2008689

24306-425-300

Unavailable

11

PLATE, GEARSHIFT DRUM SETTING

24307-425-000

Unavailable

12

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-413-000

Unavailable

13

COLLAR, GEARSHIFT DRUM STOPPER | Use up to Engine SN 2008689

24432-413-000

$7.99

13

COLLAR, GEARSHIFT DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 2008690

24432-425-000

Unavailable

14

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-425-000

Unavailable

15

SPINDLE, GEARSHIFT (NOT AVAILABLE) This part replaces 24610-425-000.

24610-425-010

Unavailable

15

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-425-010

Unavailable

16

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-425-000

Unavailable

17

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-425-000

Unavailable

18

PIN, SHIFT RETURN SPRING

24652-028-000

$9.72

19

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

20

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$15.03

21

OIL SEAL (12.5X25X8) (ARAI) This part replaces 91204-350-003.

91204-425-003

$6.61

21

OIL SEAL (12.5X25X8) (ARAI) This part replaces 91204-350-005.

91204-425-003

$6.61

21

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

22

BOLT, HEX. (6X28) | Use up to Engine SN 2008689 This part replaces 92000-06028.

92101-06028-0A

$1.49

22

BOLT, HEX. (6X28) | Use up to Engine SN 2008689

92101-06028-0A

$1.49

22

BOLT, HEX. (6X28) (NOT AVAILABLE) | Use from Engine SN 2008690

92200-06028

Unavailable

23

SCREW, FLAT (6X14) This part replaces 93600-06014.

93600-06014-0A

$1.49

23

SCREW, FLAT (6X14)

93600-06014-0A

$1.49

24

BOLT, FLANGE (6X25)

95725-06025-00

Unavailable

25

ROLLER (4X11.8)

96220-40118

$1.49
