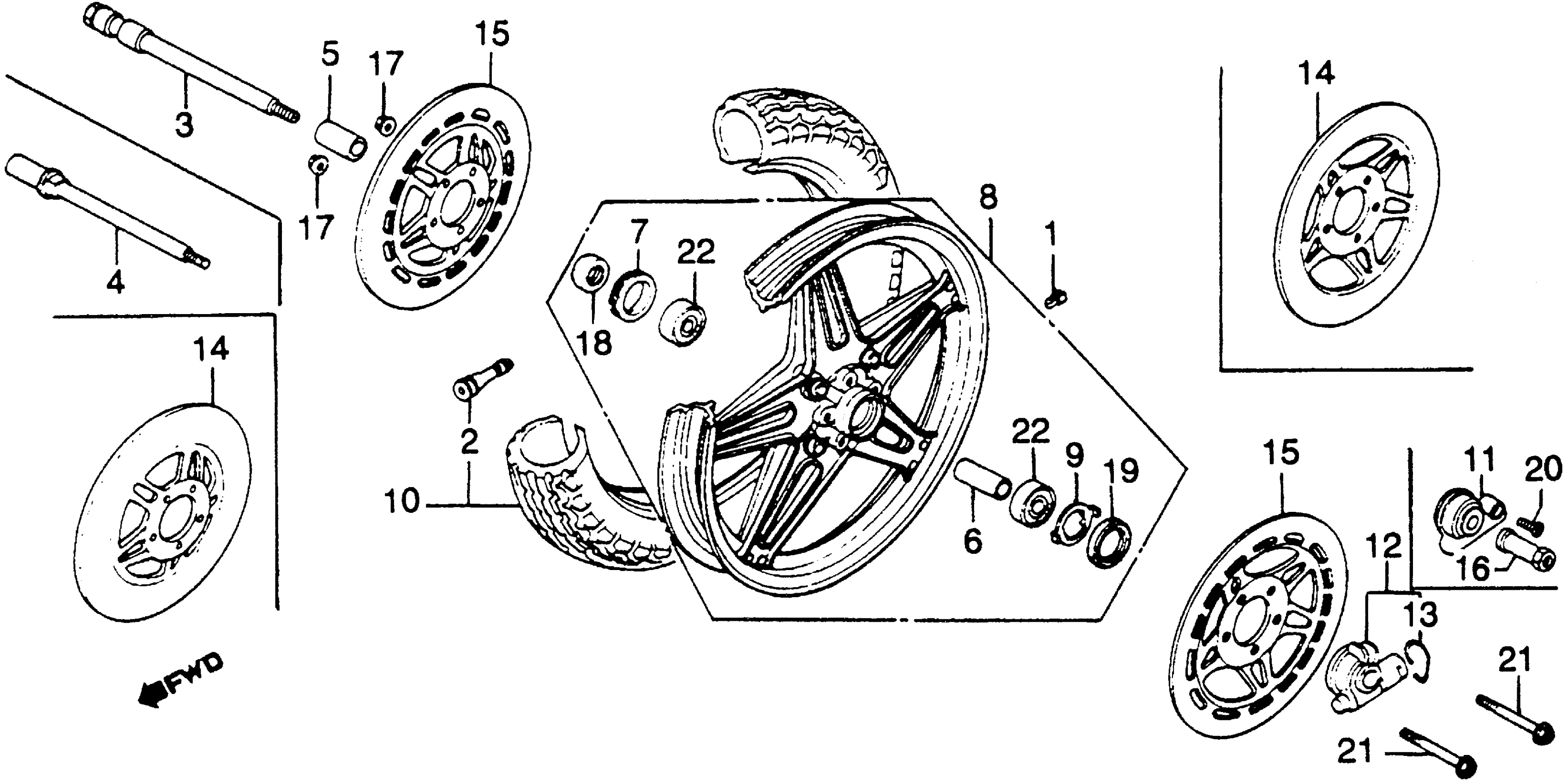

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

4

AXLE, FR. WHEEL

44301-463-000

Unavailable

5

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE) This part replaces 44311-410-000.

44311-425-870

Unavailable

6

COLLAR, FR. WHEEL DISTANCE

44620-410-000

Unavailable

7

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

8

WHEEL, FR. (NOT AVAILABLE) This part replaces 44650-463-670.

44650-463-671

Unavailable

8

WHEEL, FR. (NOT AVAILABLE)

44650-463-671

Unavailable

9

RETAINER, GEAR BOX

44680-410-000

$5.80

10

TIRE ASSY., FR. (110/90-19) (62H) (DUNLOP) (NOT AVAILABLE)

44710-463-671

Unavailable

10

TIRE ASSY., FR. (110/90-19) (62H) (BS) (NOT AVAILABLE)

44710-463-672

Unavailable

11

BOX ASSY., SPEEDOMETER GEAR

44800-425-013

Unavailable

15

DISK, FR. BRAKE

452A5-438-305

Unavailable

15

DISK, FR. BRAKE This part replaces 45251-422-010.

452A5-438-305

Unavailable

16

NUT, AXLE (12MM) (NOT AVAILABLE)

90305-463-000

Unavailable

17

NUT, HEX. (8MM)

90309-357-000

$3.40

18

DUST SEAL (22X36X8)

91252-300-003

$10.73

19

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

20

SCREW, OVAL (5X20)

93700-05020-0A

$1.49

21

BOLT, FLANGE (8X100) (NOT AVAILABLE)

95812-08100-00

Unavailable

22

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

22

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
