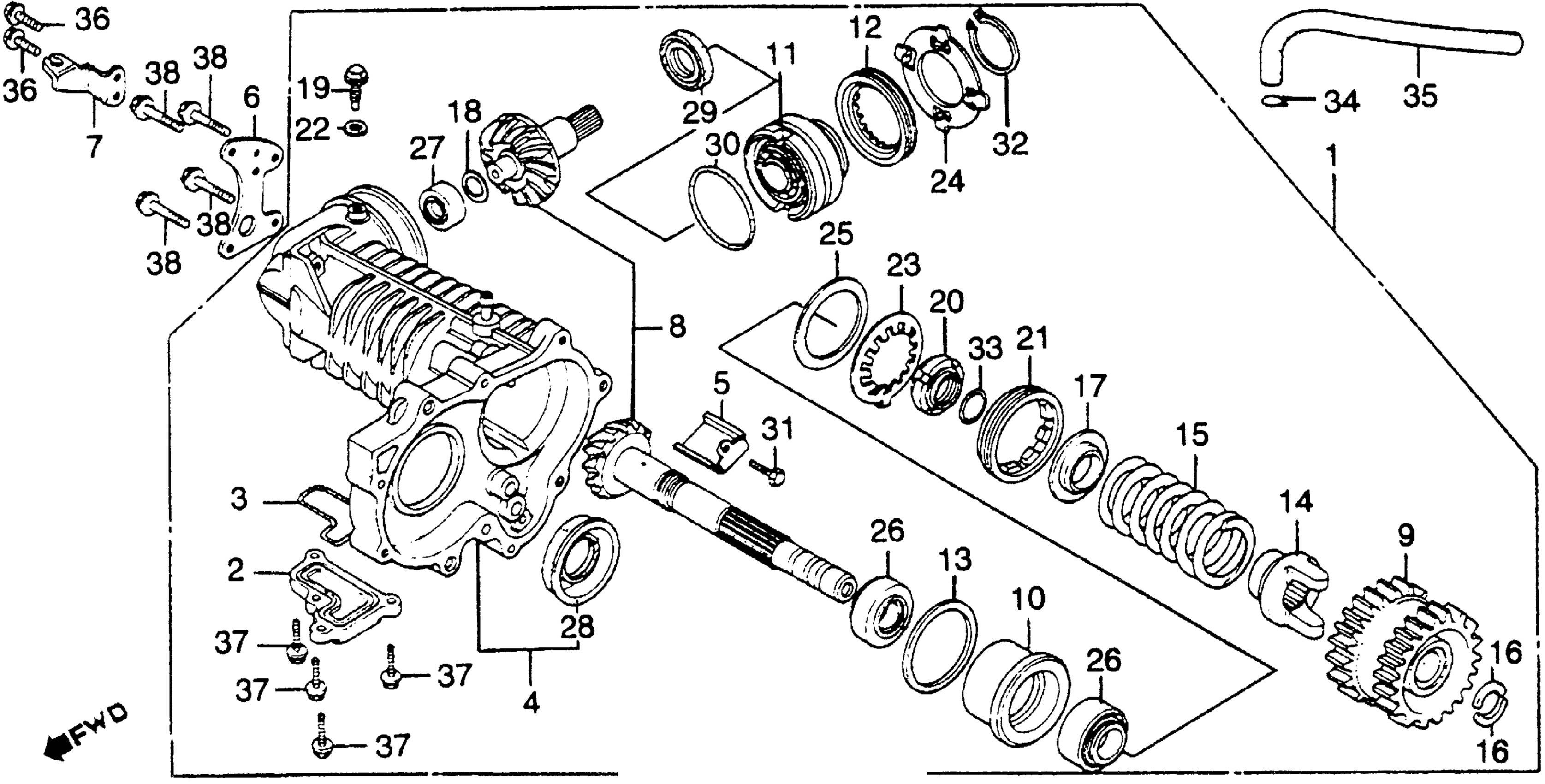

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 FINAL GEAR CASE Diagram

#

Description
Price

1

CASE ASSY., FINAL GEAR (NOT AVAILABLE)

11340-461-020

Unavailable

2

COVER, FINAL GEAR CASE (LOWER) (NOT AVAILABLE)

11366-461-020

Unavailable

3

O-RING, FINAL GEAR CASE COVER (LOWER) (NOT AVAILABLE)

11367-461-000

Unavailable

4

CASE, FINAL GEAR (NOT AVAILABLE) | Use up to Engine SN 2006278 This part replaces 11370-461-000.

11370-461-020

Unavailable

4

CASE, FINAL GEAR (NOT AVAILABLE) | Use up to Engine SN 2009017 This part replaces 11370-461-010.

11370-461-020

Unavailable

4

CASE, FINAL GEAR (NOT AVAILABLE)

11370-461-020

Unavailable

5

PLATE, BAFFLE (NOT AVAILABLE)

11373-461-000

Unavailable

6

PLATE, FINAL GEAR CASE HANGER (NOT AVAILABLE)

11380-461-000

Unavailable

7

RECEIVER, CLUTCH CABLE

11381-461-000

Unavailable

8

GEAR SET, FINAL

23500-461-010

Unavailable

9

GEAR, REDUCTION DRIVEN (31T/30T) (NOT AVAILABLE)

23521-461-000

Unavailable

10

RETAINER A, BEARING (NOT AVAILABLE)

23535-461-000

Unavailable

11

BEARING SET (30206C) (NOT AVAILABLE)

23550-461-000

Unavailable

12

NUT, LOCK (78MM) (NOT AVAILABLE)

23551-461-000

Unavailable

13

SHIM A, DRIVE GEAR (1.10) (NOT AVAILABLE)

23560-461-000

Unavailable

13

SHIM B, DRIVE GEAR (1.14) (NOT AVAILABLE)

23561-461-000

Unavailable

13

SHIM C, DRIVE GEAR (1.18) (NOT AVAILABLE)

23562-461-000

Unavailable

13

SHIM D, DRIVE GEAR (1.22) (NOT AVAILABLE)

23563-461-000

Unavailable

13

SHIM E, DRIVE GEAR (1.26) (NOT AVAILABLE)

23564-461-000

Unavailable

13

SHIM F, DRIVE GEAR (1.30) (NOT AVAILABLE)

23565-461-000

Unavailable

13

SHIM G, DRIVE GEAR (1.34)

23566-461-000

Unavailable

13

SHIM H, DRIVE GEAR (1.38) (NOT AVAILABLE)

23567-461-000

Unavailable

13

SHIM I, DRIVE GEAR (1.42) (NOT AVAILABLE)

23568-461-000

Unavailable

13

SHIM J, DRIVE GEAR (1.46) (NOT AVAILABLE)

23569-461-000

Unavailable

13

SHIM K, DRIVE GEAR (1.50) (NOT AVAILABLE)

23570-461-000

Unavailable

13

SHIM L, DRIVE GEAR (1.54) (NOT AVAILABLE)

23571-461-000

Unavailable

13

SHIM M, DRIVE GEAR (1.58) (NOT AVAILABLE)

23572-461-000

Unavailable

13

SHIM N, DRIVE GEAR (1.62) (NOT AVAILABLE)

23573-461-000

Unavailable

13

SHIM O, DRIVE GEAR (1.66) (NOT AVAILABLE)

23574-461-000

Unavailable

13

SHIM P, DRIVE GEAR (1.70) (NOT AVAILABLE)

23575-461-000

Unavailable

13

SHIM Q, DRIVE GEAR (1.74) (NOT AVAILABLE)

23576-461-000

Unavailable

13

SHIM R, DRIVE GEAR (1.78) (NOT AVAILABLE)

23577-461-000

Unavailable

13

SHIM S, DRIVE GEAR (1.82) (NOT AVAILABLE)

23578-461-000

Unavailable

13

SHIM T, DRIVE GEAR (1.86) (NOT AVAILABLE)

23579-461-000

Unavailable

13

SHIM U, DRIVE GEAR (1.90) (NOT AVAILABLE)

23580-461-000

Unavailable

14

LIFTER, DAMPER (NOT AVAILABLE)

23721-461-000

Unavailable

15

SPRING, DAMPER (NOT AVAILABLE)

23732-461-000

Unavailable

16

WASHER, SPRING STOPPER

23733-371-000

Unavailable

17

SEAT, DAMPER SPRING (NOT AVAILABLE)

23733-461-000

Unavailable

18

SHIM A, PINION GEAR (1.10) (NOT AVAILABLE)

41450-415-000

Unavailable

18

SHIM B, PINION GEAR (1.14) (NOT AVAILABLE)

41451-415-000

Unavailable

18

SHIM C, PINION GEAR (1.18) (NOT AVAILABLE)

41452-415-000

Unavailable

18

SHIM D, PINION GEAR (1.22) (NOT AVAILABLE)

41453-415-000

Unavailable

18

SHIM E, PINION GEAR (1.26) (NOT AVAILABLE)

41454-415-000

Unavailable

18

SHIM F, PINION GEAR (1.30) (NOT AVAILABLE)

41455-415-000

Unavailable

18

SHIM G, PINION GEAR (1.34) (NOT AVAILABLE)

41456-415-000

Unavailable

18

SHIM H, PINION GEAR (1.38) (NOT AVAILABLE)

41457-415-000

Unavailable

18

SHIM I, PINION GEAR (1.42) (NOT AVAILABLE)

41458-415-000

Unavailable

18

SHIM J, PINION GEAR (1.46) (NOT AVAILABLE)

41459-415-000

Unavailable

18

SHIM K, PINION GEAR (1.50) (NOT AVAILABLE)

41460-415-000

Unavailable

18

SHIM L, PINION GEAR (1.54) (NOT AVAILABLE)

41461-415-000

Unavailable

18

SHIM M, PINION GEAR (1.58) (NOT AVAILABLE)

41462-415-000

Unavailable

18

SHIM N, PINION GEAR (1.62) (NOT AVAILABLE)

41463-415-000

Unavailable

18

SHIM O, PINION GEAR (1.66) (NOT AVAILABLE)

41464-415-000

Unavailable

18

SHIM P, PINION GEAR (1.70) (NOT AVAILABLE)

41465-415-000

Unavailable

18

SHIM Q, PINION GEAR (1.74) (NOT AVAILABLE)

41466-415-000

Unavailable

18

SHIM R, PINION GEAR (1.78) (NOT AVAILABLE)

41467-415-000

Unavailable

18

SHIM S, PINION GEAR (1.82) (NOT AVAILABLE)

41468-415-000

Unavailable

18

SHIM T, PINION GEAR (1.86) (NOT AVAILABLE)

41469-415-000

Unavailable

18

SHIM U, PINION GEAR (1.90) (NOT AVAILABLE)

41470-415-000

Unavailable

19

BOLT, FENDER (6X18)

90147-634-003

$11.80

20

NUT, LOCK (30MM) (NOT AVAILABLE)

90241-461-000

Unavailable

21

NUT, LOCK (75MM) (NOT AVAILABLE)

90242-461-000

Unavailable

22

WASHER, SEALING (6MM)

90442-397-000

$2.28

23

WASHER, LOCK (75MM) (NOT AVAILABLE) This part replaces 90463-461-000.

90463-461-010

Unavailable

24

WASHER, RETAINER LOCK (NOT AVAILABLE)

90464-461-000

Unavailable

25

WASHER, SPRING (58MM) (NOT AVAILABLE)

90467-461-000

Unavailable

26

BEARING, HEAD PIPE (LOWER) This part replaces 91011-461-003.

91016-371-000

$55.12

26

BEARING, HEAD PIPE (LOWER) This part replaces 91011-461-008.

91016-371-000

$55.12

26

BEARING, HEAD PIPE (LOWER)

91016-371-000

$55.12

27

BEARING, TAPER (30203) | Use up to Engine SN 2006138 This part replaces 91062-415-003.

91121-PH8-961

Unavailable

27

BEARING, TAPER (30203) This part replaces 91062-415-013.

91121-PH8-961

Unavailable

27

BEARING, TAPER (30203)

91121-PH8-961

Unavailable

28

OIL SEAL (40X62X16)

91206-461-003

Unavailable

28

OIL SEAL (40X62X16) This part replaces 91206-461-005.

91206-461-003

Unavailable

29

OIL SEAL (30X45X8) (NOT AVAILABLE) This part replaces 91221-461-003.

91221-461-005

Unavailable

29

OIL SEAL (30X45X8) (NOT AVAILABLE)

91221-461-005

Unavailable

30

O-RING (70X3.0)

91362-461-000

$6.93

31

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

31

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

31

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

32

CIRCLIP (OUTER) (50MM) (NOT AVAILABLE)

94510-50150

Unavailable

33

RING A, SNAP (27MM)

94570-27000

Unavailable

34

CLIP, TUBE (B12)

95002-02120

$2.00

35

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

36

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

36

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

37

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

37

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

38

BOLT, FLANGE (8X22) This part replaces 95700-08022-00.

95701-08022-00

$2.16

38

BOLT, FLANGE (8X22)

95701-08022-00

$2.16
