- CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593
CARBURETOR ASSY. (LINK)

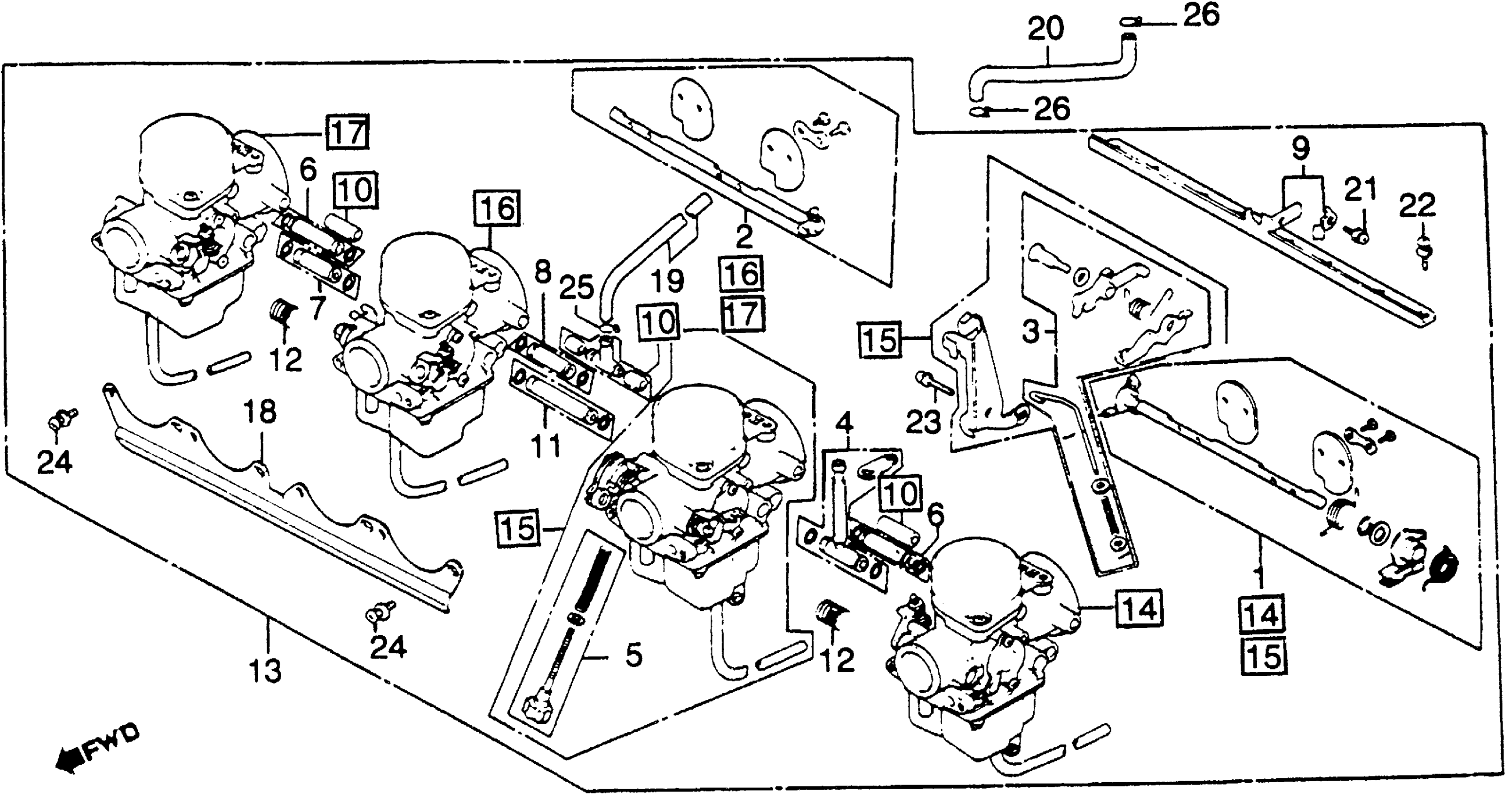

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 CARBURETOR ASSY. (LINK) Diagram
#
Description
Price
1
LINK A SET, CHOKE (NOT AVAILABLE) This part replaces 16017-425-305.
16017-438-405
Unavailable
1
LINK A SET, CHOKE (NOT AVAILABLE)
16017-438-405
Unavailable
2
LINK B SET, CHOKE (NOT AVAILABLE) This part replaces 16018-425-305.
16018-438-405
Unavailable
2
LINK B SET, CHOKE (NOT AVAILABLE)
16018-438-405
Unavailable
3
ROD SET, PUMP
16019-425-672
Unavailable
4
JOINT SET A, FUEL (NOT AVAILABLE)
16027-425-671
Unavailable
5
SCREW SET B (NOT AVAILABLE)
16028-425-671
Unavailable
6
JOINT SET B, FUEL (NOT AVAILABLE)
16031-425-671
Unavailable
8
JOINT SET D, FUEL (NOT AVAILABLE)
16034-425-671
Unavailable
9
PLATE SET, RR. STAY (NOT AVAILABLE)
16035-425-671
Unavailable
10
JOINT SET, THREE-WAY (NOT AVAILABLE)
16036-425-671
Unavailable
11
JOINT SET E, FUEL (NOT AVAILABLE)
16037-425-671
Unavailable
12
SPRING, COMPRESSION COIL (NOT AVAILABLE)
16051-413-004
Unavailable
13
CARBURETOR ASSY. (NOT AVAILABLE)
16100-461-003
Unavailable
14
CARBURETOR ASSY. 1 (NOT AVAILABLE)
16101-461-305
Unavailable
15
CARBURETOR ASSY. 2
16102-461-305
Unavailable
16
CARBURETOR ASSY. 3
16103-461-305
Unavailable
17
CARBURETOR ASSY. 4
16104-461-305
Unavailable
18
PLATE, STAY (NOT AVAILABLE) This part replaces 16119-425-671.
16119-425-672
Unavailable
18
PLATE, STAY (NOT AVAILABLE)
16119-425-672
Unavailable
19
PIPE, OVERFLOW This part replaces 16198-KR3-405.
16198-ML4-405
Unavailable
19
PIPE, OVERFLOW This part replaces 16199-425-671.
16198-ML4-405
Unavailable
20
TUBE, FUEL (NOT AVAILABLE)
16990-461-000
Unavailable
