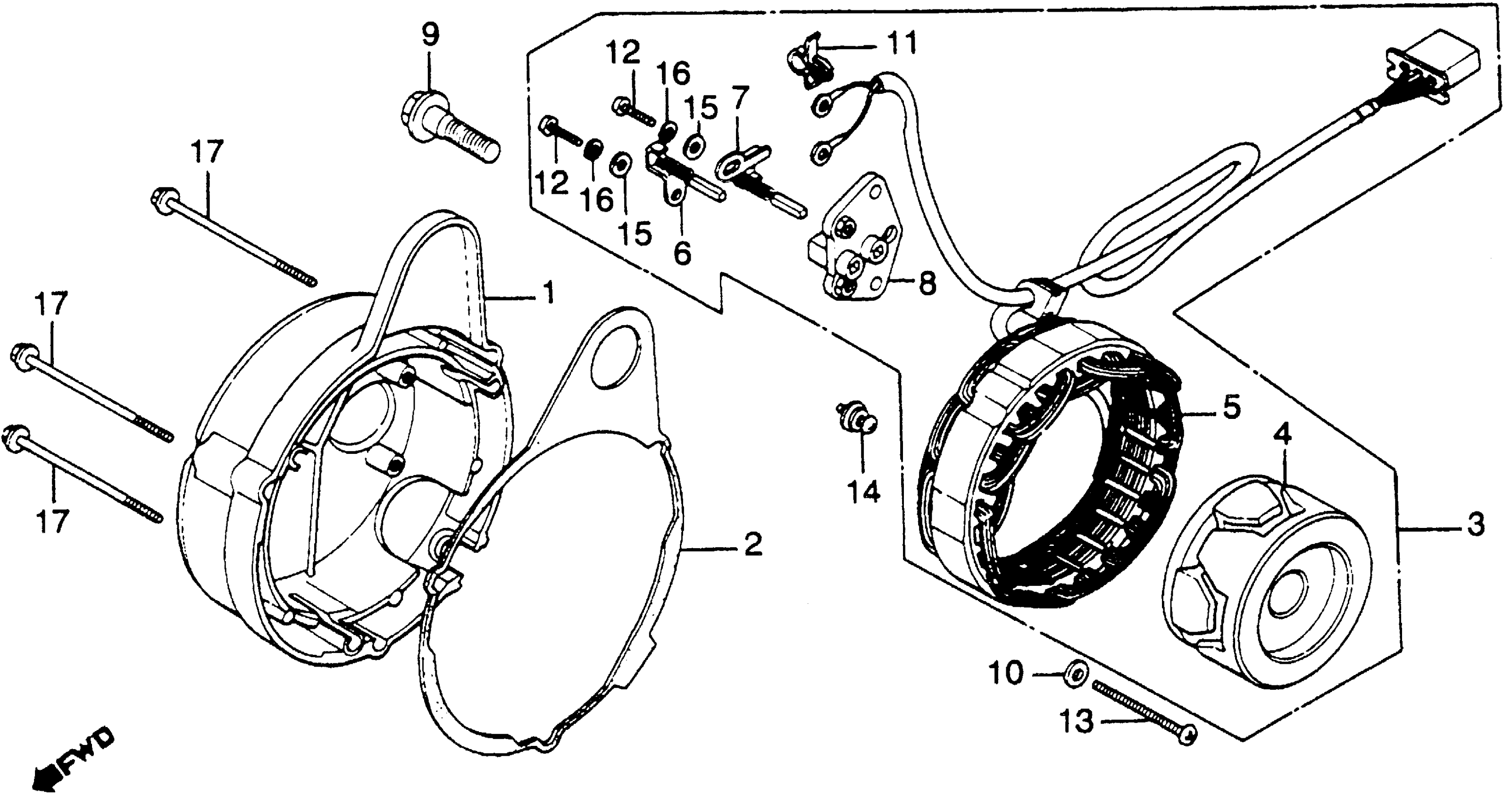

Honda CB900CA (80) 900 CUSTOM, JPN, VIN# SC04-2000046 TO SC04-2015593 ALTERNATOR COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, ALTERNATOR

11631-425-020

Unavailable

2

GASKET, ALTERNATOR COVER This part replaces 11691-425-010.

11691-425-306

Unavailable

2

GASKET, ALTERNATOR COVER

11691-425-306

Unavailable

3

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-461-005

Unavailable

4

ROTOR This part replaces 31110-426-831.

31110-426-832

Unavailable

4

ROTOR

31110-426-832

Unavailable

5

STATOR This part replaces 31120-461-005.

31120-461-415

Unavailable

5

STATOR This part replaces 31120-461-405.

31120-461-415

Unavailable

5

STATOR

31120-461-415

Unavailable

5

STATOR This part replaces 31120-461-671.

31120-461-415

Unavailable

6

BRUSH A

31124-MG5-000

Unavailable

6

BRUSH A This part replaces 31124-422-005.

31124-MG5-000

Unavailable

7

BRUSH B

31125-MG5-005

Unavailable

7

BRUSH B This part replaces 31125-422-005.

31125-MG5-005

Unavailable

8

BASE, BRUSH

31126-422-015

Unavailable

9

BOLT, FLANGE (12X40) (NOT AVAILABLE)

90023-425-000

Unavailable

10

WASHER, PLAIN (6MM) This part replaces 90563-304-000.

94101-06800

$1.49

10

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

10

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

10

WASHER, PLAIN (6MM)

94101-06800

$1.49

10

WASHER, PLAIN (6MM) This part replaces 94102-06000.

94101-06800

$1.49

11

CLIP, CABLE (6MM)

90659-170-000

$5.53

12

SCREW, PAN (4X12)

93500-04012-0H

$1.49

13

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

13

SCREW, PAN (6X45)

93500-06045-0A

$1.49

14

SCREW-WASHER (6X14) (NOT AVAILABLE)

93893-06014-00

Unavailable

15

WASHER, PLAIN (4MM)

94101-04800

$1.49

16

WASHER, SPRING (4MM)

94111-04800

$1.49

17

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

17

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
