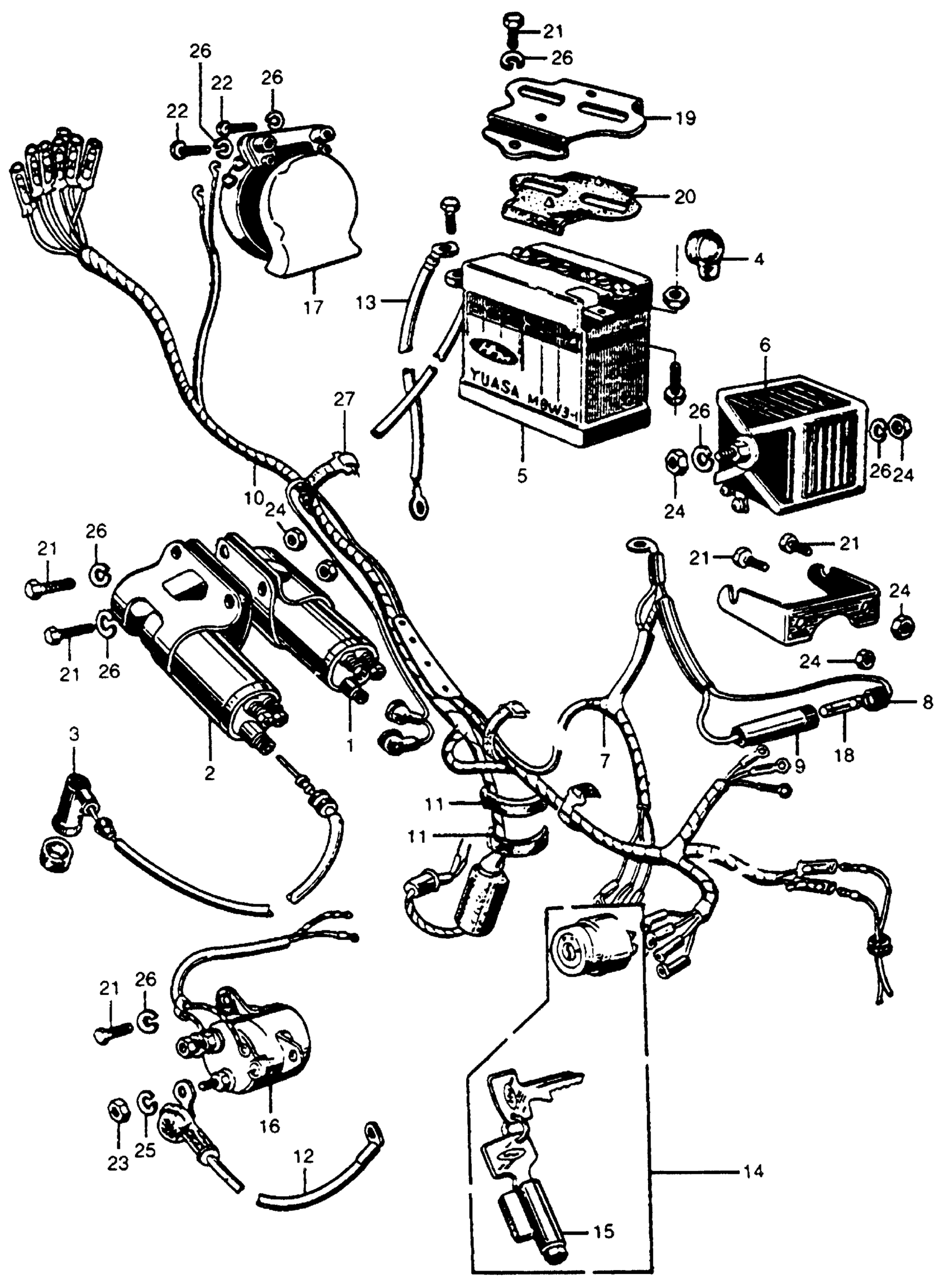

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

COIL, IGNITION This part replaces 30510-268-010.

30510-268-505

Unavailable

1

COIL, IGNITION This part replaces 30510-268-315.

30510-268-505

Unavailable

1

COIL, IGNITION

30510-268-505

Unavailable

2

COIL ASSY., L. IGNITION (NOT AVAILABLE) This part replaces 30520-268-020.

30520-268-505

Unavailable

2

COIL ASSY., L. IGNITION (NOT AVAILABLE) This part replaces 30520-268-325.

30520-268-505

Unavailable

2

COIL ASSY., L. IGNITION (NOT AVAILABLE)

30520-268-505

Unavailable

3

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

3

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

3

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

4

COVER, BATTERY TERMINAL (NOT AVAILABLE)

31468-253-000

Unavailable

5

BATTERY (12N9-3A) This part replaces 31500-268-010.

31500-268-810

Unavailable

6

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE)

31700-268-000

Unavailable

7

WIRE HARNESS A This part replaces 32100-268-010.

32100-268-315

Unavailable

7

WIRE HARNESS A This part replaces 32100-268-020.

32100-268-315

Unavailable

7

WIRE HARNESS A

32100-268-315

Unavailable

8

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

9

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

10

WIRE HARNESS B (NOT AVAILABLE)

32110-268-305

Unavailable

11

BAND B3, WIRE This part replaces 32162-268-000.

95014-62300

$2.25

11

BAND B3, WIRE This part replaces 32163-268-000.

95014-62300

$2.25

11

BAND B3, CABLE HARNESS

95014-62300

$2.25

12

CABLE, STARTER MOTOR (NOT AVAILABLE)

32401-216-000

Unavailable

13

CABLE, GROUND (NOT AVAILABLE)

32601-268-000

Unavailable

14

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35010-268-030

Unavailable

15

LOCK, HANDLEBAR (NOT AVAILABLE)

35600-268-000

Unavailable

16

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)

35850-268-000

Unavailable

17

HORN ASSY. (NOT AVAILABLE)

38100-268-020

Unavailable

18

FUSE A (15A) This part replaces 38201-250-000.

98200-11500

$1.49

18

FUSE A (15A)

98200-11500

$1.49

19

BAND, BATTERY (NOT AVAILABLE)

83632-268-000

$9.52

20

RUBBER, BATTERY BAND (NOT AVAILABLE)

83634-268-000

Unavailable

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

22

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

23

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

23

NUT, HEX. (5MM)

94001-05000-0S

$2.74

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

WASHER, SPRING (5MM)

94111-05000

$1.49

26

WASHER, SPRING (6MM)

94111-06000

$1.49

27

BAND B1, CABLE This part replaces 32161-268-000.

32161-404-000

$2.23

27

BAND B1, CABLE

32161-404-000

$2.23

27

BAND B1, CABLE This part replaces 32983-268-000.

32161-404-000

$2.23

27

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23
