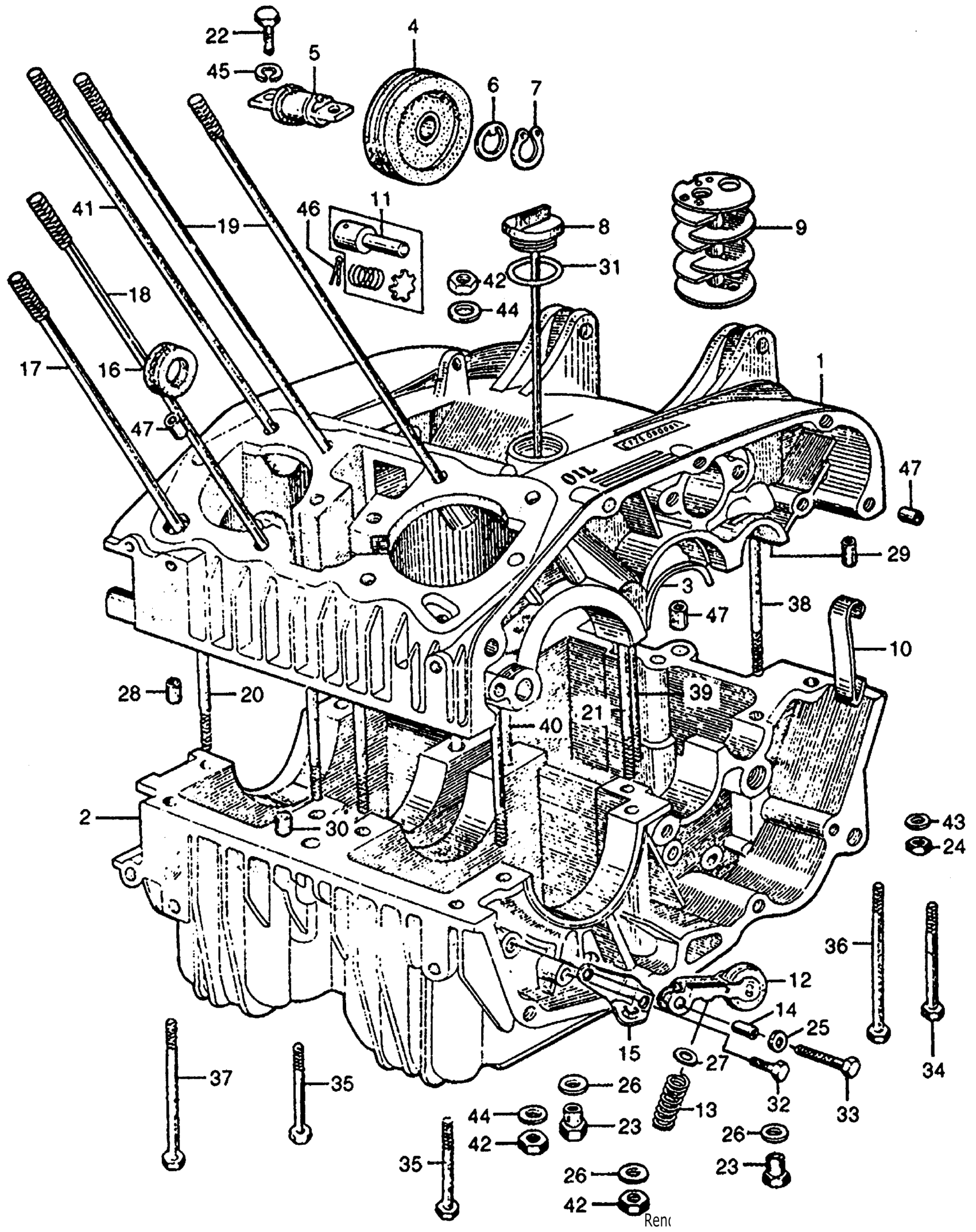

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 UPPER & LOWER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER) | Use from Engine SN 0110001 to 0210900

11100-259-325

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 0100001 to 0109755

11100-275-050

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 0210901

11100-275-050

Unavailable

2

CRANKCASE (LOWER) | Use from Engine SN 0110001 to 0210700

11200-259-030

Unavailable

2

CRANKCASE (LOWER) | Use from Engine SN 0100001 to 0109755

11200-259-060

Unavailable

2

CRANKCASE (LOWER) | Use from Engine SN 0210701

11200-259-060

Unavailable

3

RING, BEARING SET (62MM) (NOT AVAILABLE)

13491-259-000

Unavailable

4

ROLLER, CAM CHAIN GUIDE (NOT AVAILABLE)

14611-250-310

Unavailable

5

PIN, CAM CHAIN GUIDE ROLLER (NOT AVAILABLE)

14612-250-300

$21.23

6

WASHER (14MM) (NOT AVAILABLE)

14615-250-300

Unavailable

7

CIRCLIP (OUTER) (14MM) This part replaces 14616-250-300.

94510-14000

$1.49

7

CIRCLIP (OUTER) (14MM) This part replaces 90605-001-000.

94510-14000

$1.49

7

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

8

DIPSTICK, OIL (NOT AVAILABLE)

15650-259-000

Unavailable

9

BODY, BREATHER (NOT AVAILABLE) | Use from Engine SN 0110001 to 0111030

15721-259-000

Unavailable

10

SPRING, BREATHER SUPPORTING (NOT AVAILABLE) | Use from Engine SN 0110001 to 0111030

15725-259-000

Unavailable

11

VALVE, BREATHER (NOT AVAILABLE) | Use from Engine SN 0110001 to 0111030

15730-259-000

Unavailable

12

TENSIONER, PRIMARY CHAIN

23170-259-000

Unavailable

13

SPRING, PRIMARY CHAIN TENSIONER (NOT AVAILABLE)

23181-259-000

Unavailable

14

PIECE, DISTANCE (NOT AVAILABLE)

23912-259-000

Unavailable

15

SEAT, SPRING (NOT AVAILABLE)

23942-259-000

Unavailable

16

GROMMET, LOW TENSION WIRE (NOT AVAILABLE)

32951-250-000

Unavailable

17

STUD A, CYLINDER (NOT AVAILABLE) | Use from Engine SN 0110001 to 0318672

90031-259-010

Unavailable

17

STUD A, CYLINDER (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

90031-259-020

Unavailable

18

STUD C, CYLINDER (NOT AVAILABLE) | Use from Engine SN 0110001 to 0110426

90031-268-010

Unavailable

18

STUD C, CYLINDER | Use from Engine SN 0100001 to 0318672

90031-268-020

Unavailable

18

BOLT, STUD (8X273) (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

92700-08273-35

Unavailable

19

STUD D, CYLINDER (NOT AVAILABLE) | Use from Engine SN 0110001 to 0318672

90034-268-000

Unavailable

19

BOLT, STUD (8X26) | Use from Engine SN 0100001 to 0109755

92700-08286-35

Unavailable

19

BOLT, STUD (8X26) | Use from Engine SN 0318673

92700-08286-35

Unavailable

20

BOLT, STUD (8X116) (NOT AVAILABLE)

90062-259-000

Unavailable

21

BOLT, STUD (8X128) (NOT AVAILABLE)

90063-259-000

Unavailable

22

BOLT, KNOCK (6MM) (NOT AVAILABLE)

90081-253-000

Unavailable

23

NUT, SEALING (6MM) (NOT AVAILABLE)

90241-259-000

Unavailable

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

WASHER, LOCKING

90432-259-000

Unavailable

26

WASHER A (6.5MM)

90481-250-000

$1.93

27

WASHER (14MM) (NOT AVAILABLE)

90483-259-000

Unavailable

28

PIN, KNOCK (7X5X12) (NOT AVAILABLE)

90701-259-010

Unavailable

29

PIN, KNOCK (7X12) (NOT AVAILABLE)

90705-259-020

Unavailable

30

PIN A, DOWEL (10X20) This part replaces 90706-259-000.

94301-10200

$2.35

30

PIN A, DOWEL (10X20) This part replaces 94301-10190.

94301-10200

$2.35

30

PIN A, DOWEL (10X20)

94301-10200

$2.35

31

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

31

O-RING (22X3.0)

91307-425-003

$2.59

32

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

32

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

32

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

33

BOLT, HEX. (6X30) This part replaces 92000-06030.

92101-06030-0A

$1.79

33

BOLT, HEX. (6X30)

92101-06030-0A

$1.79

34

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

34

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

34

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

35

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

35

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

35

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

35

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

35

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

36

BOLT, HEX. (6X70) This part replaces 92000-06070.

92101-06070-0A

$2.34

36

BOLT, HEX. (6X70) This part replaces 92000-06070-0A.

92101-06070-0A

$2.34

36

BOLT, HEX. (6X70)

92101-06070-0A

$2.34

37

BOLT, HEX. (6X75) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-06075.

92101-06075-0A

Unavailable

37

BOLT, HEX. (6X75) (SOURCE: VINTAGE PARTS INC.)

92101-06075-0A

Unavailable

38

BOLT, STUD (6X100) This part replaces 92700-06103.

92700-06100

Unavailable

39

BOLT, STUD (6X120) (SOURCE: VINTAGE PARTS INC.)

92700-06120

Unavailable

40

BOLT, STUD (8X95) (NOT AVAILABLE)

92700-08095-30

Unavailable

40

BOLT, STUD (8X95) (NOT AVAILABLE) This part replaces 92700-08096-30.

92700-08095-30

Unavailable

41

BOLT, STUD (8X267) (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

92700-08267-35

Unavailable

42

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

42

NUT, HEX. (8MM)

94030-08000

$1.49

42

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

43

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

43

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

43

WASHER, PLAIN (6MM)

94101-06800

$1.49

44

WASHER, PLAIN (8MM)

94101-08000

$1.49

45

WASHER, SPRING (6MM)

94111-06000

$1.49

46

PIN, COTTER (2.0X22) | Use from Engine SN 0100001 to 0109755 This part replaces 94201-20200.

94201-29220

$1.49

46

PIN, COTTER (2.0X22) | Use from Engine SN 0111030 This part replaces 94201-20200.

94201-29220

$1.49

46

PIN, COTTER (2.0X22) | Use from Engine SN 0100001 to 0109755

94201-20220

$1.49

46

PIN, COTTER (2.0X22) | Use from Engine SN 0111030

94201-20220

$1.49

46

PIN, COTTER (2.0X35) | Use from Engine SN 0100001 to 0109755 This part replaces 94201-20250.

94201-20350

$1.49

46

PIN, COTTER (2.0X35) | Use from Engine SN 0111030 This part replaces 94201-20250.

94201-20350

$1.49

46

PIN, COTTER (2.0X35) | Use from Engine SN 0100001 to 0109755 This part replaces 94201-20280.

94201-20350

$1.49

46

PIN, COTTER (2.0X35) | Use from Engine SN 0111030 This part replaces 94201-20280.

94201-20350

$1.49

46

PIN, COTTER (2.0X35) | Use from Engine SN 0100001 to 0109755 This part replaces 94201-20320.

94201-20350

$1.49

46

PIN, COTTER (2.0X35) | Use from Engine SN 0111030 This part replaces 94201-20320.

94201-20350

$1.49

46

PIN, COTTER (2.0X35) | Use from Engine SN 0100001 to 0109755

94201-20350

$1.49

46

PIN, COTTER (2.0X35) | Use from Engine SN 0111030

94201-20350

$1.49

46

PIN, COTTER (2.0X35)

94201-20350

$1.49

46

PIN, COTTER (2.0X22) | Use from Engine SN 0100001 to 0109755

94201-29220

$1.49

46

PIN, COTTER (2.0X22) | Use from Engine SN 0111030

94201-29220

$1.49

47

PIN A, DOWEL (10X14)

94301-10140

$2.28
