- CB77A MOTORCYCLE, JPN, VIN# CB77-100001
TRANSMISSION

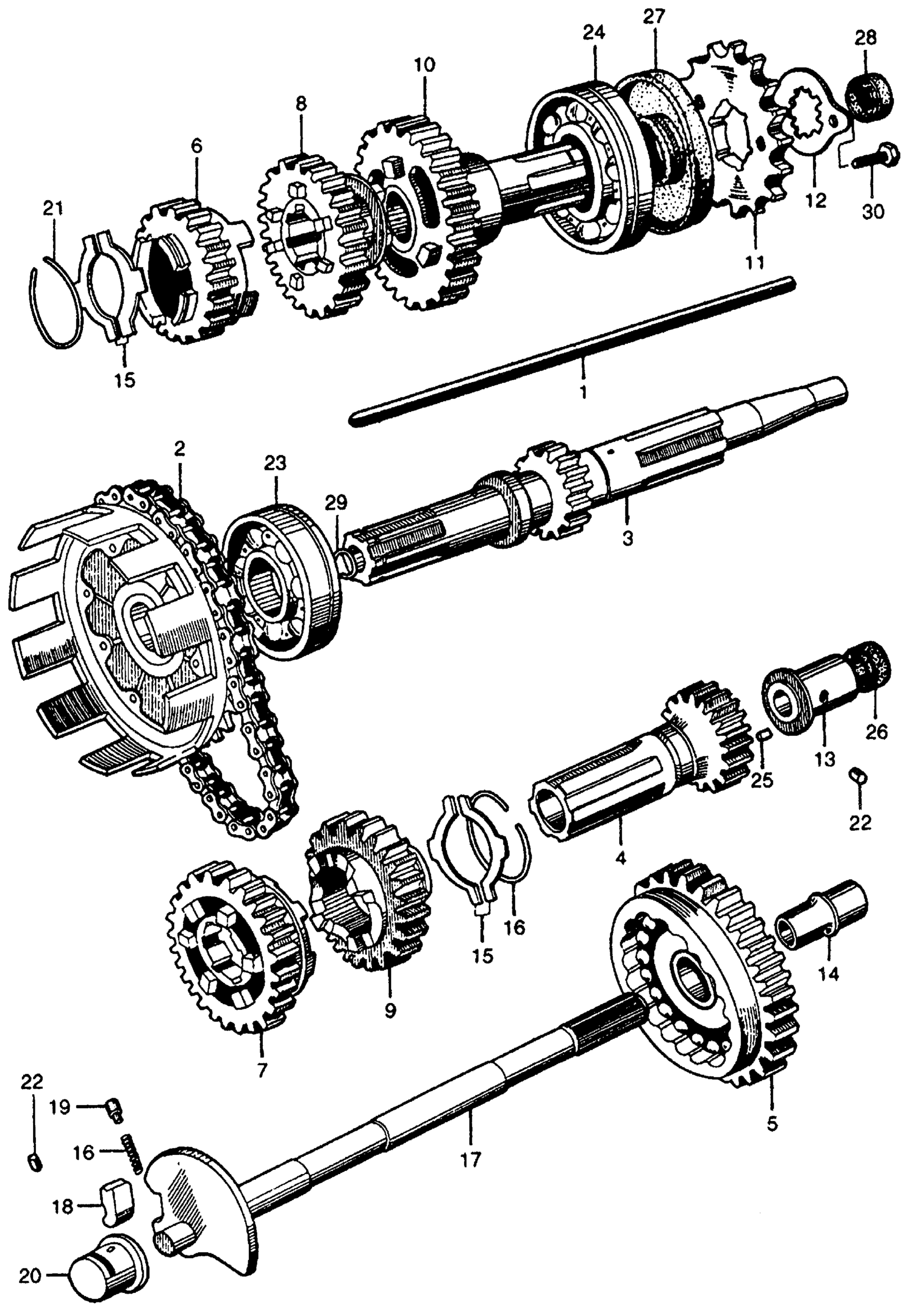

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 TRANSMISSION Diagram
#
1
ROD, CLUTCH LIFTER (NOT AVAILABLE)
22850-259-010
Unavailable
2
CHAIN, PRIMARY DRIVE (NOT AVAILABLE)
23120-268-000
Unavailable
2
CHAIN, PRIMARY DRIVE (NOT AVAILABLE) This part replaces 23121-266-000.
23120-268-000
Unavailable
3
MAINSHAFT, TRANSMISSION (18T) (NOT AVAILABLE)
23211-268-010
Unavailable
3
MAINSHAFT, TRANSMISSION (18T) (NOT AVAILABLE) This part replaces 23211-268-020.
23211-268-010
Unavailable
4
COUNTERSHAFT (21T) (NOT AVAILABLE)
23221-258-000
Unavailable
4
COUNTERSHAFT (21T) (NOT AVAILABLE) This part replaces 23221-258-010.
23221-258-000
Unavailable
5
GEAR, LOW (34T) | Use from Engine SN 0100001 to 0211020
23420-258-000
Unavailable
5
GEAR, LOW (34T) | Use from Engine SN 0100001 to 0109755
23420-268-000
Unavailable
5
GEAR, LOW (34T) | Use from Engine SN 0211021 to 1043040
23420-268-000
Unavailable
5
GEAR, LOW (34T) (NOT AVAILABLE) | Use from Engine SN 1043041
23420-268-020
Unavailable
6
GEAR, SECOND MAINSHAFT (24T) (NOT AVAILABLE)
23430-258-000
Unavailable
7
GEAR, SECOND COUNTERSHAFT (27T) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0211020
23441-258-000
Unavailable
7
GEAR, SECOND COUNTERSHAFT (27T) This part replaces 23441-268-000.
23441-268-010
Unavailable
7
GEAR, SECOND COUNTERSHAFT (27T)
23441-268-010
Unavailable
8
GEAR, THIRD MAINSHAFT (29T) | Use from Engine SN 0110001 to 0211020
23451-258-010
Unavailable
8
GEAR, THIRD COUNTERSHAFT (27T) | Use from Engine SN 0100001 to 0109755
23451-268-010
Unavailable
8
GEAR, THIRD COUNTERSHAFT (27T) | Use from Engine SN 0211021
23451-268-010
Unavailable
9
GEAR, THIRD COUNTERSHAFT (23T) | Use from Engine SN 0110001 to 0211020
23460-258-010
Unavailable
9
GEAR, THIRD COUNTERSHAFT (23T) (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755
23460-268-000
Unavailable
10
GEAR, TOP (31T) | Use from Engine SN 0110001 to 0211020
23470-268-010
Unavailable
10
GEAR, TOP (31T) (NOT AVAILABLE)
23470-268-020
Unavailable
10
GEAR, TOP (31T) (NOT AVAILABLE) This part replaces 23470-268-030.
23470-268-020
Unavailable
11
SPROCKET, DRIVE (15T) (NOT AVAILABLE) This part replaces 23801-268-020.
23801-268-030
Unavailable
11
SPROCKET, DRIVE (15T) (NOT AVAILABLE)
23801-268-030
Unavailable
11
SPROCKET, DRIVE (14T) (NOT AVAILABLE) | (Optional). This part replaces 23801-268-811.
23801-268-812
Unavailable
11
SPROCKET, DRIVE (14T) (NOT AVAILABLE) | (Optional).
23801-268-812
Unavailable
11
SPROCKET, DRIVE (13T) (NOT AVAILABLE) | (Optional). This part replaces 23801-268-820.
23801-268-821
Unavailable
11
SPROCKET, DRIVE (13T) (NOT AVAILABLE) | (Optional).
23801-268-821
Unavailable
12
PLATE, DRIVE SPROCKET (NOT AVAILABLE) | Use from Engine SN 0110001 to 0210610
23811-253-000
Unavailable
12
PLATE, DRIVE SPROCKET (NOT AVAILABLE) This part replaces 23811-259-000.
23811-259-010
Unavailable
12
PLATE, DRIVE SPROCKET (NOT AVAILABLE)
23811-259-010
Unavailable
12
PLATE, DRIVE SPROCKET (NOT AVAILABLE) This part replaces 23811-268-810.
23811-268-811
Unavailable
12
PLATE, DRIVE SPROCKET (NOT AVAILABLE)
23811-268-811
Unavailable
13
BUSHING (14MM) (NOT AVAILABLE)
23931-259-010
Unavailable
14
BUSHING C (14MM) (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755
23933-253-000
Unavailable
14
BUSHING C (14MM) (NOT AVAILABLE) | Use from Engine SN 1043041
23933-259-010
Unavailable
15
COTTER, GEAR (NOT AVAILABLE)
23941-250-010
Unavailable
15
COTTER, GEAR (NOT AVAILABLE)
23941-259-305
Unavailable
15
COTTER, GEAR (NOT AVAILABLE)
23943-259-305
Unavailable
16
SPRING, KICK SPINDLE PAWL (NOT AVAILABLE)
28228-250-010
Unavailable
17
SPINDLE, KICK STARTER
28250-259-000
Unavailable
17
SPINDLE, KICK STARTER This part replaces 28251-259-000.
28250-259-000
Unavailable
18
PAWL, SPINDLE (NOT AVAILABLE)
28255-250-020
Unavailable
19
PIN, KICK SPINDLE PAWL (NOT AVAILABLE)
28256-250-000
Unavailable
20
BUSHING, KICK SPINDLE METAL (NOT AVAILABLE)
28258-259-010
Unavailable
21
CIRCLIP (22MM) (NOT AVAILABLE)
90602-250-000
Unavailable
22
PIN, KNOCK (7X12) (NOT AVAILABLE)
90705-259-020
Unavailable
23
BEARING, RADIAL BALL (6305) (NTN CORP.) This part replaces 91003-259-000.
91003-KY2-003
Unavailable
24
BEARING, RADIAL BALL (6206) (NOT AVAILABLE) This part replaces 91004-259-000.
91006-422-004
Unavailable
25
ROLLER (5X6.25)
91102-253-000
Unavailable
26
OIL SEAL (14X25X7)
91202-250-000
Unavailable
27
OIL SEAL (30X62X8)
91203-259-000
Unavailable
28
OIL SEAL (8216) (TC-TYPE)
91205-259-000
Unavailable
