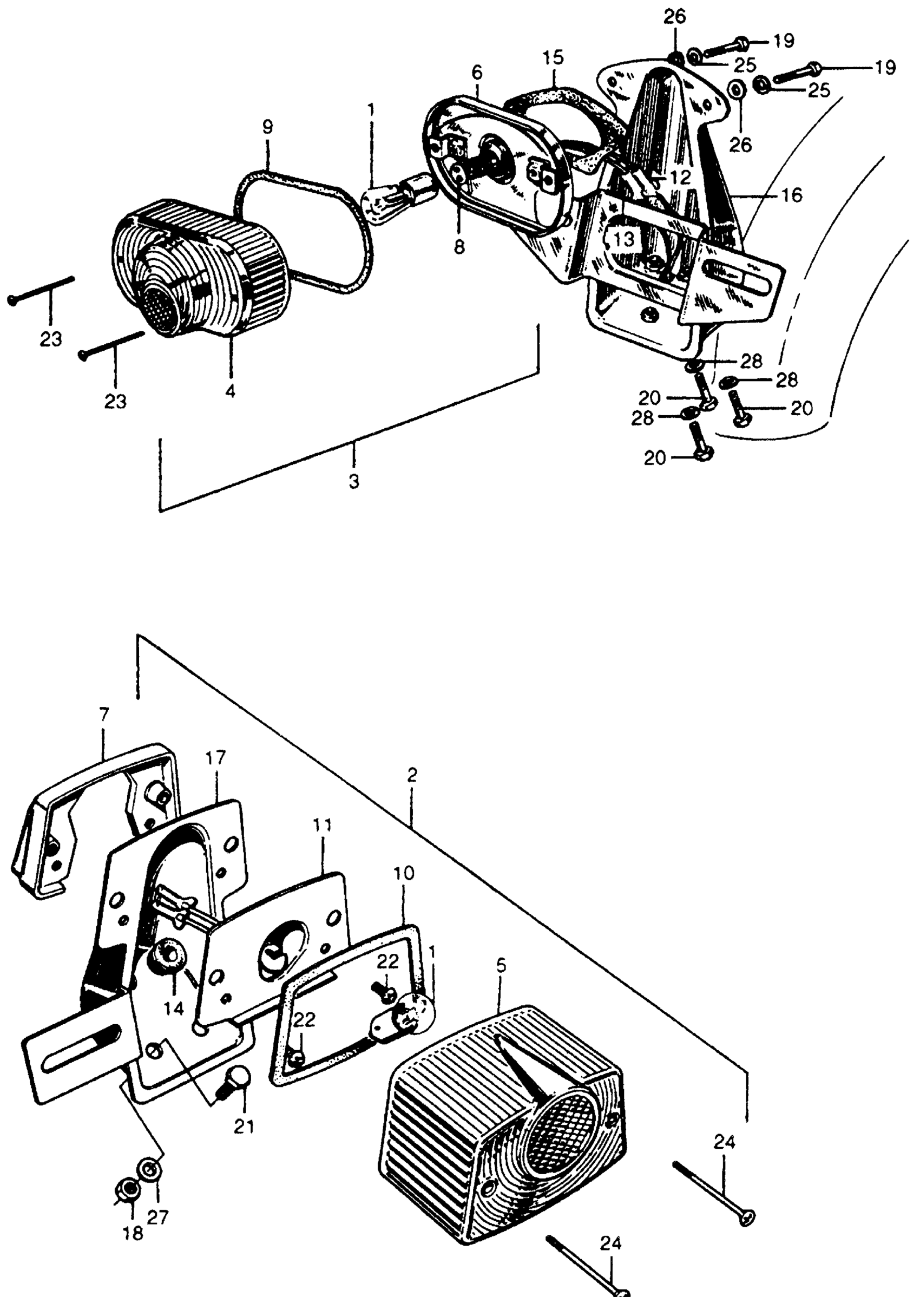

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 TAILLIGHT Diagram

#

Description
Price

1

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

1

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

1

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

1

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

2

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 0010001 to 1056083

33700-268-601

Unavailable

3

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 1056084

33700-272-000

Unavailable

4

LENS, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 1056084

33701-041-671

Unavailable

5

LENS, TAILLIGHT | Use from Frame SN 0010001 to 1056083

33701-268-680

Unavailable

6

BASE, TAILLIGHT (NOT AVAILABLE) This part replaces 33702-041-671.

33702-041-672

Unavailable

6

BASE, TAILLIGHT (NOT AVAILABLE)

33702-041-672

Unavailable

7

PLATE, TAILLIGHT LENS HOLDER | Use from Frame SN 0010001 to 1056083

33705-268-670

Unavailable

8

CABLE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 1056084

33707-272-000

Unavailable

9

GASKET, TAILLIGHT LENS (NOT AVAILABLE) | Use from Frame SN 1056084

33709-041-000

Unavailable

10

GASKET, TAILLIGHT LENS | Use from Frame SN 0010001 to 1056083

33709-268-810

Unavailable

11

SOCKET, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 0010001 to 1056083

33710-268-610

Unavailable

12

SUB-WIRE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 1056084

33711-216-000

Unavailable

13

SUB-WIRE, STOP LIGHT (NOT AVAILABLE) | Use from Frame SN 1056084

33713-216-000

Unavailable

14

GROMMET B, TAILLIGHT CABLE (NOT AVAILABLE) | Use from Frame SN 0010001 to 1056083

33714-268-000

Unavailable

15

GASKET, TAILLIGHT BASE (NOT AVAILABLE) | Use from Frame SN 1056084

33719-041-300

Unavailable

16

BRACKET, TAILLIGHT PLATE (NOT AVAILABLE) | Use from Frame SN 1056084

84701-268-020Z

Unavailable

17

BRACKET, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 0010001 to 1056083

84701-268-810Z

Unavailable

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

BOLT, HEX. (5X12) | Use from Frame SN 1056084 This part replaces 92000-05012-0B.

92101-05012-0B

$1.49

19

BOLT, HEX. (5X12) | Use from Frame SN 1056084 This part replaces 92000-05012-02.

92101-05012-0B

$1.49

19

BOLT, HEX. (5X12) | Use from Frame SN 1056084

92101-05012-0B

$1.49

20

BOLT, HEX. (6X12) | Use from Frame SN 1056084 This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) | Use from Frame SN 1056084 This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) | Use from Frame SN 1056084

92101-06012-0A

$1.49

21

BOLT, HEX. (6X16) | Use from Frame SN 0010001 to 1056083 This part replaces 92000-06016.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) | Use from Frame SN 0010001 to 1056083 This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) | Use from Frame SN 0010001 to 1056083 This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) | Use from Frame SN 0010001 to 1056083 This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) | Use from Frame SN 0010001 to 1056083

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) | Use from Frame SN 0010001 to 1056083 This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

SCREW, PAN (4X10) | Use from Frame SN 0010001 to 1056083 This part replaces 93500-04010.

93500-04010-0A

$1.49

22

SCREW, PAN (4X10) | Use from Frame SN 0010001 to 1056083

93500-04010-0A

$1.49

22

SCREW, PAN (4X10) | Use from Frame SN 0010001 to 1056083 This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

23

SCREW, PAN (4X45) | Use from Frame SN 1056084

93500-04045-0B

Unavailable

23

SCREW, PAN (4X45) | Use from Frame SN 1056084 This part replaces 93500-04045-02.

93500-04045-0B

Unavailable

24

SCREW, OVAL (3X60) | Use from Frame SN 0010001 to 1056083 This part replaces 93700-03060.

93700-03060-0A

$0.98

24

SCREW, OVAL (3X60) | Use from Frame SN 0010001 to 1056083

93700-03060-0A

$0.98

24

SCREW, OVAL (3X60) | Use from Frame SN 0010001 to 1056083 This part replaces 93700-03060-0B.

93700-03060-0A

$0.98

24

SCREW, OVAL (3X60) | Use from Frame SN 0010001 to 1056083 This part replaces 93700-03060-02.

93700-03060-0A

$0.98

25

WASHER, PLAIN (5MM) | Use from Frame SN 1056084

94101-05000

$1.49

26

WASHER, SPRING (5MM) | Use from Frame SN 1056084

94111-05000

$1.49

27

WASHER, SPRING (6MM) | Use from Frame SN 0010001 to 1056083

94111-06000

$1.49

28

WASHER, SPRING (6MM) | Use from Frame SN 1056084

94111-06000

$1.49
