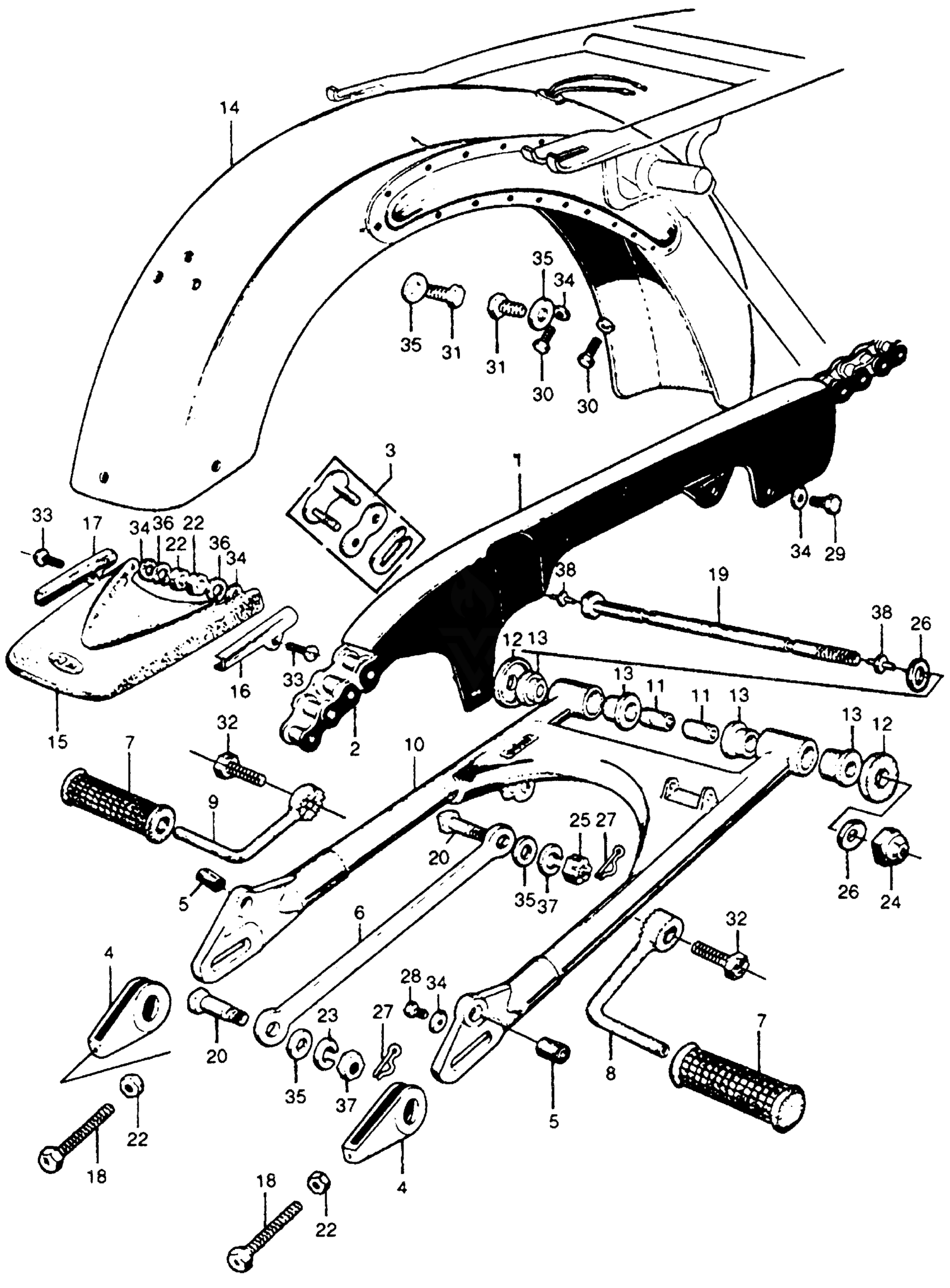

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 SWINGARM + REAR FENDER Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-268-030Z

Unavailable

2

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) This part replaces 40530-268-010.

405W3-413-505

Unavailable

2

CHAIN, DRIVE (RK50KS-102L) (TAKASAGO) (NOT AVAILABLE) | (Optional). This part replaces 40530-269-000.

405W3-413-505

Unavailable

3

MASTER LINK

40531-268-000

Unavailable

4

ADJUSTER, DRIVE CHAIN (NOT AVAILABLE)

40543-268-000

Unavailable

5

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

6

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-268-010

Unavailable

7

RUBBER, STEP

50661-268-000

Unavailable

8

BAR, R. PILLION STEP

50710-268-010

Unavailable

9

BAR, L. PILLION STEP

50720-268-000

Unavailable

10

SWINGARM

52100-268-020Z

Unavailable

11

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-268-000

Unavailable

12

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

12

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

13

BUSHING, SWINGARM PIVOT (NOT AVAILABLE)

52174-268-300

Unavailable

14

FENDER, RR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 0010001 to 1056083

80100-268-020S

Unavailable

14

FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 1056084

80100-268-030XW

Unavailable

15

SPLASH GUARD, RR. FENDER (NOT AVAILABLE)

80121-268-010

Unavailable

16

STAY, R. RR. FENDER SPLASH GUARD (NOT AVAILABLE)

80122-268-010

Unavailable

17

STAY, L. RR. FENDER SPLASH GUARD (NOT AVAILABLE)

80123-268-010

Unavailable

18

BOLT, CHAIN ADJUSTER (NOT AVAILABLE)

90119-205-000

Unavailable

19

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-268-010

Unavailable

20

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0010380

90127-268-000

Unavailable

20

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE) | Use from Frame SN 0010381

90127-268-010

Unavailable

21

BOLT, RR. BRAKE STOPPER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0010380

90133-268-000

Unavailable

21

BOLT, RR. STOPPER ARM (NOT AVAILABLE) | Use from Frame SN 0010381

90133-268-010

Unavailable

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

NUT, LOCK (8MM) (NOT AVAILABLE)

90349-268-000

Unavailable

24

NUT, LOCK (14MM)

90354-268-000

$6.78

25

NUT, CASTLE (8MM) (NOT AVAILABLE)

90356-205-000

Unavailable

26

WASHER, RR. SWINGARM PIVOT BOLT

90526-268-000

$3.10

27

TIE, CABLE (NOT AVAILABLE)

90672-268-000

Unavailable

28

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

29

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

29

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

31

BOLT, HEX. (8X12) (NOT AVAILABLE) This part replaces 92000-08012.

92100-08012-0A

Unavailable

31

BOLT, HEX. (8X12) (NOT AVAILABLE) This part replaces 92000-08012-0A.

92100-08012-0A

Unavailable

31

BOLT, HEX. (8X12) (NOT AVAILABLE)

92100-08012-0A

Unavailable

31

BOLT, HEX. (8X12) (NOT AVAILABLE) This part replaces 92200-08012-0A.

92100-08012-0A

Unavailable

32

BOLT, HEX. (12X38) (NOT AVAILABLE)

92000-12038

Unavailable

33

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

33

SCREW, PAN (6X8)

93500-06008

$1.49

33

SCREW, PAN (6X8)

93500-06008-0A

$1.49

33

SCREW, PAN (6X8)

93500-06008-0H

$1.49

33

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

34

WASHER, PLAIN (6MM)

94101-06800

$1.49

35

WASHER, PLAIN (8MM)

94101-08000

$1.49

36

WASHER, SPRING (6MM)

94111-06000

$1.49

37

WASHER, SPRING (8MM)

94111-08000

$1.49

38

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

38

FITTING, GREASE (A.45)

96201-30001

$1.49
