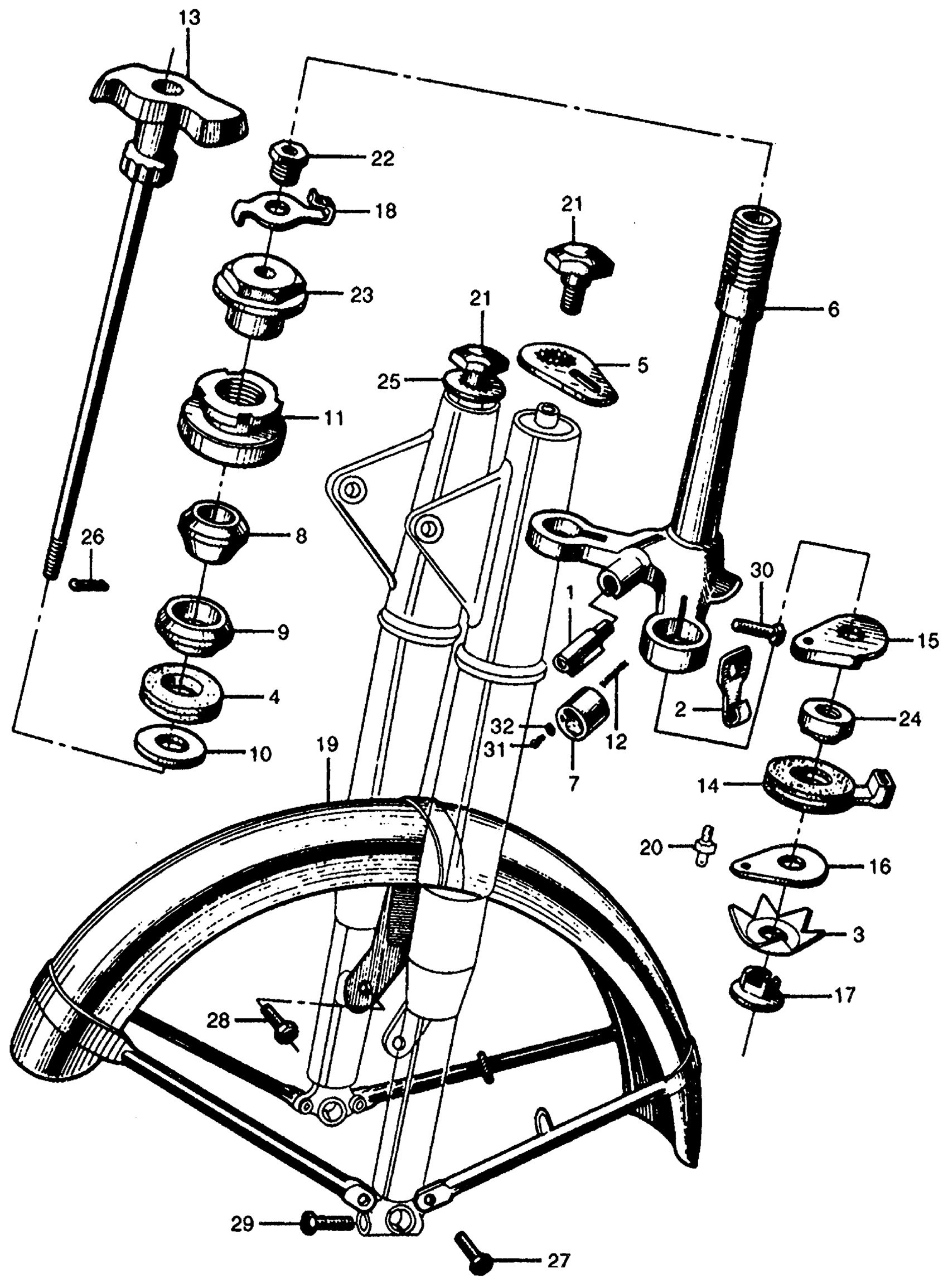

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 STEERING STEM + FRONT FENDER Diagram

#

Description
Price

1

LOCK, HANDLEBAR (NOT AVAILABLE)

35600-268-000

Unavailable

2

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-268-010

Unavailable

3

SPRING, STEERING DAMPER (NOT AVAILABLE)

53076-268-010

Unavailable

3

SPRING, STEERING DAMPER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029791

53763-268-000

Unavailable

3

SPRING, STEERING DAMPER (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755 This part replaces 53763-268-010.

53076-268-010

Unavailable

3

SPRING, STEERING DAMPER (NOT AVAILABLE) | Use from Frame SN 0311503 This part replaces 53763-268-010.

53076-268-010

Unavailable

4

DUST SEAL This part replaces 53124-250-000.

53214-K0T-J00

$3.03

4

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

5

KEEPER, HELMET (NOT AVAILABLE)

53126-268-810

Unavailable

6

STEM, STEERING (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029791

53200-268-020Z

Unavailable

6

STEM, STEERING (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

53200-268-050Z

Unavailable

6

STEM, STEERING | Use from Frame SN 0403441 to 1030129

53200-268-060Z

Unavailable

6

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 1030130

53200-268-070B

Unavailable

7

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE) This part replaces 53202-268-310.

53215-230-000

Unavailable

7

COVER, HANDLEBAR LOCK CASE (NOT AVAILABLE)

53215-230-000

Unavailable

8

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$26.89

8

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

8

RACE, STEERING TOP CONE This part replaces 53211-268-305.

53211-268-010

$26.89

9

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$21.57

9

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

9

RACE, STEERING CONE (LOWER) This part replaces 53212-250-305.

53212-250-010

$21.57

10

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.34

11

THREAD, STEERING HEAD TOP (NOT AVAILABLE)

53220-268-010

Unavailable

12

SPRING, HANDLEBAR LOCK (NOT AVAILABLE)

53631-268-020

Unavailable

13

KNOB, STEERING DAMPER (NOT AVAILABLE)

53740-268-000

Unavailable

14

DISK, STEERING DAMPER FRICTION (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029791

53750-268-000

Unavailable

14

DISK, STEERING DAMPER FRICTION (NOT AVAILABLE) This part replaces 53750-268-010.

53750-292-000

Unavailable

14

DISK, STEERING DAMPER FRICTION (NOT AVAILABLE)

53750-292-000

Unavailable

15

PLATE A, STEERING DAMPER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029791

53761-268-010

Unavailable

15

PLATE A, STEERING DAMPER (NOT AVAILABLE) This part replaces 53761-268-020.

53761-292-000

Unavailable

15

PLATE A, STEERING DAMPER (NOT AVAILABLE)

53761-292-000

Unavailable

16

PLATE, STEERING DAMPER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029791

53762-268-000

Unavailable

16

PLATE B, STEERING DAMPER (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

53762-268-010

Unavailable

17

NUT, STEERING DAMPER LOCK SPRING | Use from Frame SN 0010001 to 0029791

53764-268-000

Unavailable

17

NUT, STEERING DAMPER LOCK SPRING (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

53764-268-010

Unavailable

17

NUT, STEERING DAMPER SPRING (NOT AVAILABLE) | Use from Frame SN 0403441

53764-283-000

Unavailable

18

SPRING, STEERING DAMPER LOCK (NOT AVAILABLE)

53765-268-000

Unavailable

19

FENDER, FR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 0010001 to 1030129

61100-268-040S

Unavailable

19

FENDER, FR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 1030130 to 1056083

61100-268-050S

Unavailable

19

FENDER, FR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 1056084

61100-268-050XW

Unavailable

20

BOLT, FRICTION DISK ANCHOR (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

90118-268-000

Unavailable

21

BOLT, FR. FORK (NOT AVAILABLE)

90123-268-020

Unavailable

22

BOLT, DAMPER LOCK SPRING MOUNT (NOT AVAILABLE)

90131-268-010

Unavailable

23

NUT, STEERING HEAD STEM (NOT AVAILABLE)

90304-268-010

Unavailable

24

NUT, STEERING DAMPER LOCK (NOT AVAILABLE)

90319-268-000

Unavailable

25

WASHER, FR. FORK (NOT AVAILABLE)

90537-268-020

Unavailable

26

TIE, CABLE (NOT AVAILABLE)

90672-268-000

Unavailable

27

BOLT, HEX. (6X12) | Use from Frame SN 0010001 to 1030129 This part replaces 92000-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X16) | Use from Frame SN 1030130 This part replaces 92000-06016.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) | Use from Frame SN 1030130 This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) | Use from Frame SN 1030130 This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) | Use from Frame SN 1030130 This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X12) | Use from Frame SN 0010001 to 1030129 This part replaces 92101-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12) | Use from Frame SN 0010001 to 1030129

92101-06012-0A

$1.49

27

BOLT, HEX. (6X16) | Use from Frame SN 1030130

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) | Use from Frame SN 1030130 This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (8X12) (NOT AVAILABLE) This part replaces 92000-08012.

92100-08012-0A

Unavailable

28

BOLT, HEX. (8X12) (NOT AVAILABLE) This part replaces 92000-08012-0A.

92100-08012-0A

Unavailable

28

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.49

28

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

28

BOLT, HEX. (8X12) (NOT AVAILABLE)

92100-08012-0A

Unavailable

28

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

28

BOLT, HEX. (8X12) (NOT AVAILABLE) This part replaces 92200-08012-0A.

92100-08012-0A

Unavailable

28

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.49

29

BOLT, HEX. (8X30) This part replaces 92000-08030.

92101-08030-0A

$1.49

29

BOLT, HEX. (8X30) This part replaces 92000-08030-0A.

92101-08030-0A

$1.49

29

BOLT, HEX. (8X30) This part replaces 92100-08030-0A.

92101-08030-0A

$1.49

29

BOLT, HEX. (8X30)

92101-08030-0A

$1.49

30

BOLT, HEX. (8X32) | Use from Frame SN 0010001 to 1030129 This part replaces 92000-08032.

92101-08032-0B

$2.39

30

BOLT, HEX. (8X32) | Use from Frame SN 0010001 to 1030129 This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

30

BOLT, HEX. (8X32) | Use from Frame SN 0010001 to 1030129 This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

30

BOLT, HEX. (8X38) (NOT AVAILABLE) | Use from Frame SN 1030130 This part replaces 92000-08038.

92000-08038-0A

Unavailable

30

BOLT, HEX. (8X38) (NOT AVAILABLE) | Use from Frame SN 1030130

92000-08038-0A

Unavailable

30

BOLT, HEX. (8X32) | Use from Frame SN 0010001 to 1030129

92101-08032-0B

$2.39

31

SCREW, PAN (3X8) (NOT AVAILABLE) | Use from Frame SN 0010001 to 1052626

93500-03008-0B

Unavailable

31

SCREW, PAN (3X8) (NOT AVAILABLE) | Use from Frame SN 0010001 to 1052626

93500-03008-02

Unavailable

31

SCREW, PAN (3X10) (NOT AVAILABLE) | Use from Frame SN 1052627

93500-03010-0B

Unavailable

31

SCREW, PAN (3X10) (NOT AVAILABLE) | Use from Frame SN 1052627 This part replaces 93500-03010-02.

93500-03010-0B

Unavailable

32

WASHER, PLAIN (3MM) | Use from Frame SN 1052627

94101-03000

$1.49
