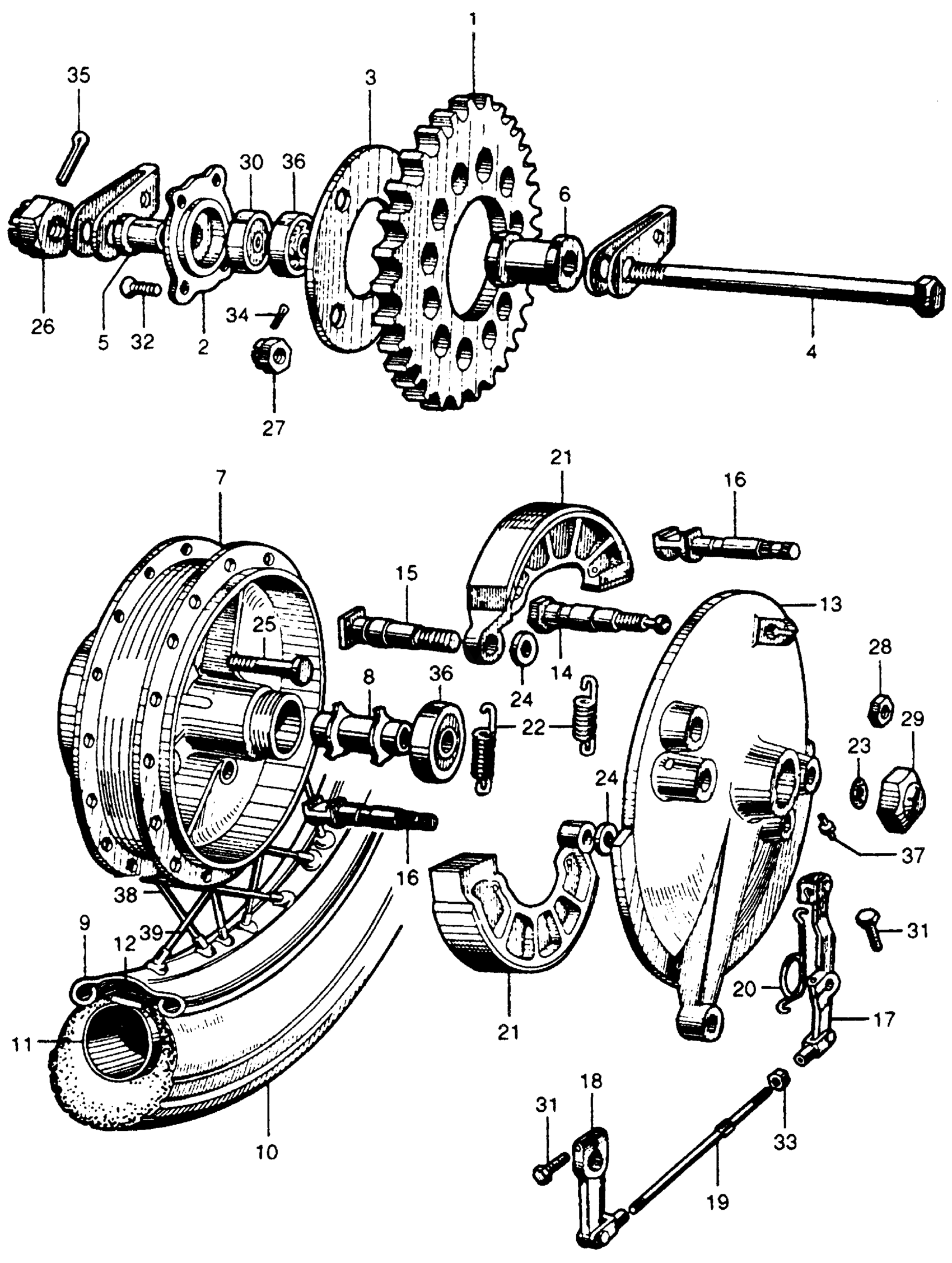

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (32T) (NOT AVAILABLE) | (Optional).

41201-268-000

Unavailable

1

SPROCKET, FINAL DRIVEN (28T) (NOT AVAILABLE) | (Optional).

41201-268-810

Unavailable

1

SPROCKET, FINAL DRIVEN (36T) (NOT AVAILABLE) | (Optional).

41201-268-820

Unavailable

1

SPROCKET, FINAL DRIVEN (38T) (NOT AVAILABLE) | (Optional).

41201-268-830

Unavailable

1

SPROCKET, FINAL DRIVEN (31T) (NOT AVAILABLE) | (Optional).

41201-268-840

Unavailable

1

SPROCKET, FINAL DRIVEN (33T) (NOT AVAILABLE) | (Optional).

41201-268-850

Unavailable

1

SPROCKET, FINAL DRIVEN (32T) (NOT AVAILABLE) | (Optional). This part replaces 41201-268-860.

41201-268-000

Unavailable

1

SPROCKET, FINAL DRIVEN (37T) (NOT AVAILABLE) | (Optional).

41201-268-870

Unavailable

1

SPROCKET, FINAL DRIVEN (34T) | (Optional).

41201-269-000

Unavailable

1

SPROCKET, FINAL DRIVEN (30T)

41201-275-000

Unavailable

2

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE) This part replaces 41231-268-000.

41231-273-010

Unavailable

2

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-273-010

Unavailable

3

PLATE, DUST SEAL (NOT AVAILABLE)

41251-268-000

Unavailable

4

AXLE, RR. SIDE (NOT AVAILABLE)

42301-268-000

Unavailable

5

COLLAR, RR. SIDE (NOT AVAILABLE)

42311-268-000

Unavailable

6

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-268-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0010001 to 0020200

42601-268-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0020201

42601-268-010

Unavailable

8

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-268-000

Unavailable

9

RIM, RR. WHEEL (NOT AVAILABLE)

42701-268-000

Unavailable

10

TIRE, RR. WHEEL (3.00-18) (4PR) (NITTO) (NOT AVAILABLE) This part replaces 42711-268-000.

42711-307-006

Unavailable

10

TIRE, RR. WHEEL (3.00-18) (4PR) (NITTO) (NOT AVAILABLE)

42711-307-006

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-268-000.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-307-006.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

11

TUBE (275/300-18) (IRC) This part replaces 44712-305-003.

42712-KC6-005

Unavailable

12

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

13

PANEL, RR. BRAKE | Use from Frame SN 0010001 to 0020200

43100-268-030

Unavailable

13

PANEL, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0020201

43100-268-040

Unavailable

14

PIN A, RR. BRAKE SHOE ANCHOR | Use from Frame SN 0010001 to 0029791

43102-268-000

Unavailable

14

PIN A, RR. BRAKE SHOE ANCHOR | Use from Frame SN 0100001 to 0102398

43102-268-000

Unavailable

14

PIN A, RR. BRAKE SHOE ANCHOR | Use from Frame SN 0310001 to 0319222

43102-268-000

Unavailable

14

PIN A, RR. BRAKE SHOE ANCHOR (NOT AVAILABLE) | Use from Frame SN 0102399 to 0109755

43102-268-010

Unavailable

15

PIN B, RR. BRAKE SHOE ANCHOR (NOT AVAILABLE)

43106-268-000

Unavailable

16

CAM, RR. BRAKE | Use from Frame SN 0021228 to 0029791

43141-268-020

Unavailable

16

CAM, RR. BRAKE | Use from Frame SN 0310001 to 0312672

43141-268-020

Unavailable

16

CAM, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

43141-268-040

Unavailable

17

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43410-268-010.

43410-268-030

Unavailable

17

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43410-268-020.

43410-268-030

Unavailable

17

ARM, RR. BRAKE (NOT AVAILABLE)

43410-268-030

Unavailable

18

ARM A, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029791

43420-268-000

Unavailable

18

ARM B, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

43420-268-010

Unavailable

19

ROD, RR. BRAKE (NOT AVAILABLE)

43423-268-000

Unavailable

20

SPRING, RR. BRAKE ARM (NOT AVAILABLE)

43437-268-000

Unavailable

21

SHOE, BRAKE This part replaces 45120-268-020.

45120-458-305

Unavailable

21

SHOE, BRAKE This part replaces 45120-283-000.

45120-458-305

Unavailable

21

SHOE, BRAKE This part replaces 45120-458-670.

45120-458-305

Unavailable

22

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use from Frame SN 0010001 to 0022751

45133-268-000

Unavailable

22

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use from Frame SN 0022752

45133-268-010

Unavailable

23

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

24

WASHER, ANCHOR PIN SETTING (NOT AVAILABLE)

45142-268-000

Unavailable

25

BOLT, SPROCKET SETTING (NOT AVAILABLE)

90128-268-000

Unavailable

26

NUT, RR. WHEEL AXLE This part replaces 90306-268-000.

90306-329-770

$7.58

26

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

27

NUT, CASTLE (10MM) (NOT AVAILABLE)

90307-205-000

Unavailable

28

NUT, ANCHOR PIN SETTING (NOT AVAILABLE)

90316-205-000

Unavailable

29

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

30

OIL SEAL (27.5X43X8) (NOT AVAILABLE)

90752-268-000

Unavailable

31

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

31

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

31

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

32

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

32

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

33

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

33

NUT, HEX. (6MM)

94001-06200-0S

$1.49

33

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

34

PIN, COTTER (2.0X15)

94201-20150

$1.49

34

PIN, COTTER (2.0X35)

94201-20350

$1.49

35

PIN, COTTER (4.0X30)

94201-40300

$1.49

36

BEARING, RADIAL BALL (6304Z) This part replaces 96120-63040.

96120-63040-10

$22.40

36

BEARING, RADIAL BALL (6304Z)

96120-63040-10

$22.40

37

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

37

FITTING, GREASE (A.45)

96201-30001

$1.49

38

SPOKE A, RR.

97422-52138-1

Unavailable

39

SPOKE B, RR.

97682-52133-1

Unavailable
