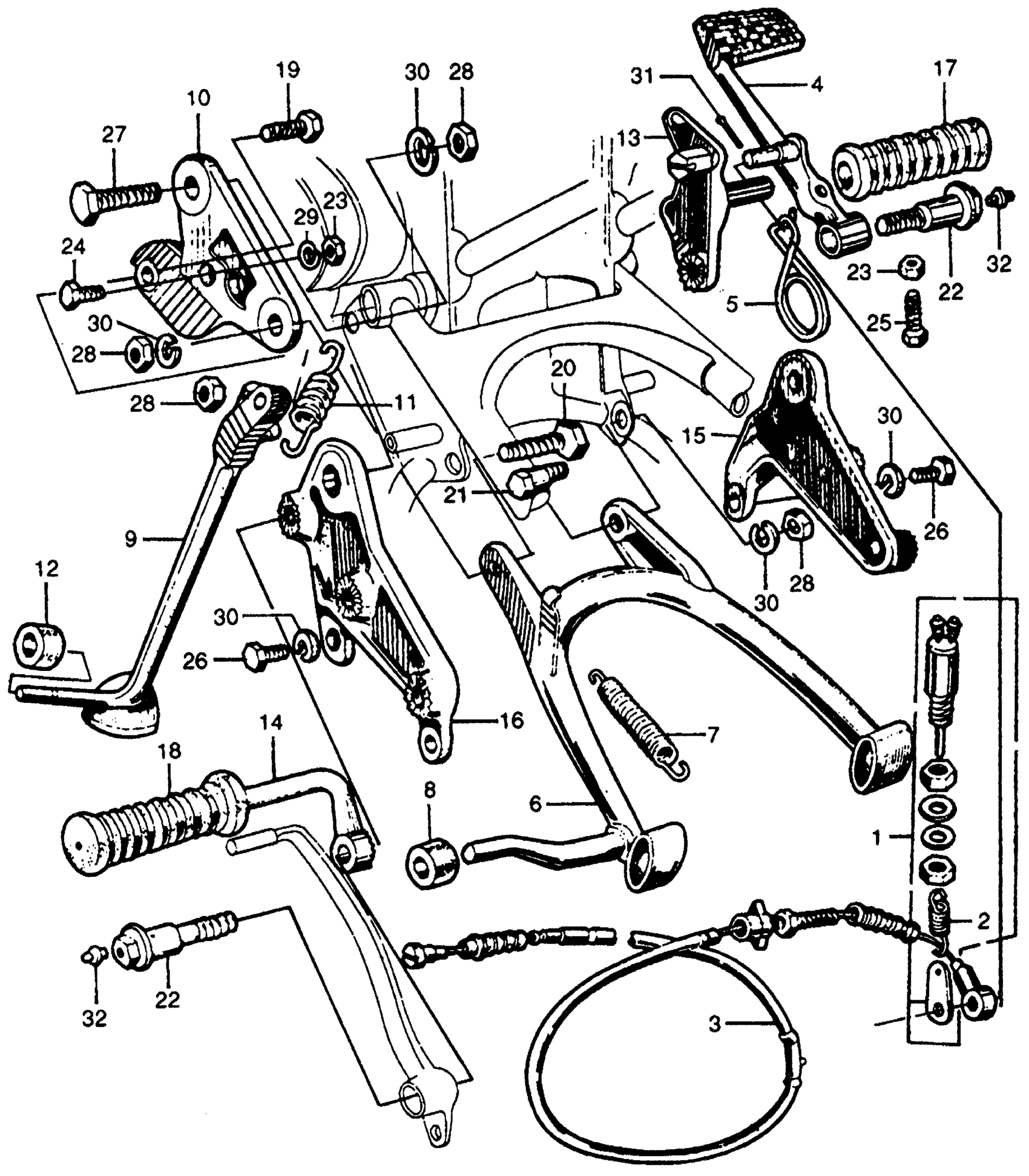

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 MAIN STAND + STEP BAR Diagram

SWITCH ASSY., STOP LAMP (NOT AVAILABLE) | Use from Frame SN 0010001 to 0022752

35350-268-010

Unavailable

SWITCH ASSY., STOP LAMP (NOT AVAILABLE) | Use from Frame SN 0022753

35350-270-003

Unavailable

SPRING, STOP SWITCH (NOT AVAILABLE)

35351-268-000

Unavailable

CABLE, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0010001 to 1029374

43460-268-020

Unavailable

CABLE, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1029375

43460-268-030

Unavailable

PEDAL, BRAKE (NOT AVAILABLE)

46500-268-010

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-268-010

Unavailable

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-268-670B

Unavailable

SPRING, MAIN STAND (NOT AVAILABLE)

50522-268-000

Unavailable

RUBBER, MAIN STAND STOPPER (NOT AVAILABLE)

50524-268-000

Unavailable

BAR, SIDE STAND (NOT AVAILABLE)

50530-282-000

Unavailable

BRACKET, SIDE STAND (NOT AVAILABLE)

50541-268-811

Unavailable

SPRING, SIDE STAND (NOT AVAILABLE)

50542-268-810

Unavailable

RUBBER, SIDE STAND STOPPER (NOT AVAILABLE)

50543-268-810

Unavailable

ARM, R. STEP

50630-268-810

Unavailable

ARM, L. STEP (NOT AVAILABLE)

50640-268-810

Unavailable

BRACKET, R. STEP ARM (NOT AVAILABLE)

50651-268-010

Unavailable

BRACKET, L. STEP ARM (NOT AVAILABLE)

50652-268-010

Unavailable

RUBBER, R. STEP (NOT AVAILABLE)

50661-268-810

Unavailable

RUBBER, L. STEP

50662-268-810

Unavailable

BOLT, SIDE STAND PIVOT (NOT AVAILABLE)

90108-259-000

Unavailable

BOLT, L. MAIN STAND SETTING (NOT AVAILABLE)

90146-268-810

Unavailable

BOLT, MAIN STAND SETTING (NOT AVAILABLE)

90151-268-000

Unavailable

BOLT, STEP ARM FIXING (NOT AVAILABLE)

90152-268-000

Unavailable

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

BOLT, HEX. (10X18) This part replaces 92000-10018.

92101-10018-0A

Unavailable

BOLT, HEX. (10X18) This part replaces 92000-10018-0A.

92101-10018-0A

Unavailable

BOLT, HEX. (10X55) (NOT AVAILABLE) This part replaces 92000-10055.

92000-10055-0A

Unavailable

BOLT, HEX. (10X55) (NOT AVAILABLE)

92000-10055-0A

Unavailable

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

NUT, HEX. (10MM)

94030-10000

$1.49

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

FITTING, GREASE (A.45)

96201-30001

$1.49
