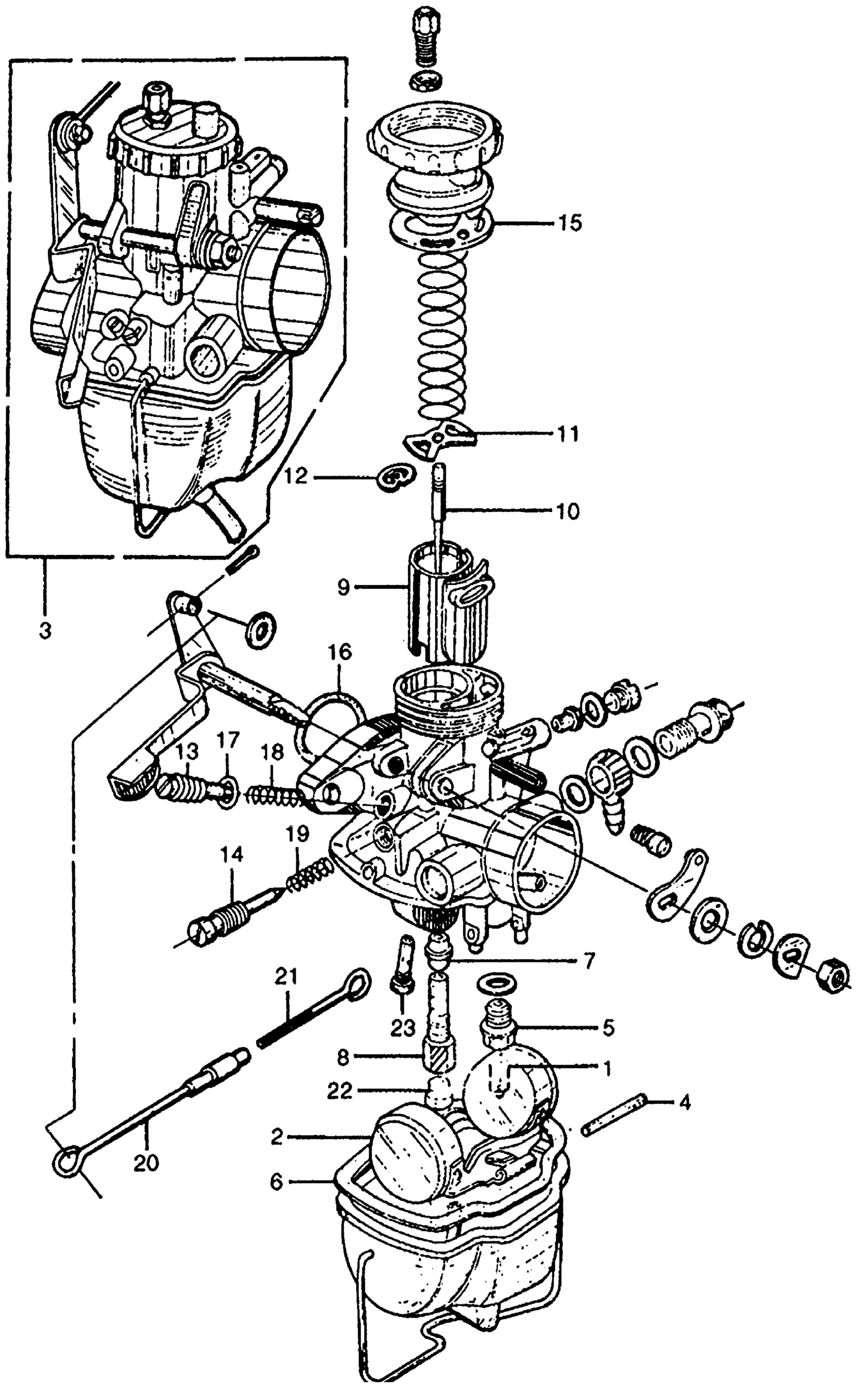

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 LEFT CARBURETOR Diagram

#

Description
Price

1

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

1

VALVE SET, FLOAT

16011-375-004

$28.96

1

VALVE SET, FLOAT This part replaces 16125-268-004.

16011-375-004

$28.96

2

FLOAT SET

16013-286-014

$32.28

2

FLOAT SET

16013-312-004

Unavailable

2

FLOAT SET This part replaces 16122-259-014.

16013-286-014

$32.28

2

FLOAT SET This part replaces 16122-268-004.

16013-312-004

Unavailable

3

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-275-000

Unavailable

4

PIN, FLOAT ARM (NOT AVAILABLE)

16126-259-004

Unavailable

6

WASHER, FLOAT CHAMBER

16129-268-004

Unavailable

6

WASHER, FLOAT CHAMBER (NOT AVAILABLE)

16172-253-004

Unavailable

7

NEEDLE, JET (NOT AVAILABLE)

16133-275-004

Unavailable

8

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-274-004

Unavailable

9

VALVE, THROTTLE (NOT AVAILABLE)

16146-275-004

Unavailable

10

NEEDLE, JET (NOT AVAILABLE)

16151-275-004

Unavailable

11

PLATE, NEEDLE CLIP (NOT AVAILABLE)

16156-259-004

Unavailable

12

CLIP, BAR

16157-259-004

$5.36

13

SCREW, AIR (NOT AVAILABLE)

16162-259-004

Unavailable

14

SCREW, THROTTLE STOP (NOT AVAILABLE) This part replaces 16163-011-004.

16163-217-004

Unavailable

14

SCREW, THROTTLE STOP

16163-217-004

Unavailable

15

GASKET, TOP (NOT AVAILABLE)

16171-275-004

Unavailable

16

O-RING (29X2.4)

16173-260-004

$7.33

17

O-RING (2.8MM) (NOT AVAILABLE)

16175-260-004

Unavailable

18

SPRING, AIR SCREW (NOT AVAILABLE)

16181-202-004

$3.70

19

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

20

ROD A, CHOKE LEVER (NOT AVAILABLE)

17941-268-010

Unavailable

21

ROD B, CHOKE LEVER (NOT AVAILABLE)

17942-268-010

Unavailable

22

JET, MAIN (#125) (NOT AVAILABLE)

99102-12504

Unavailable

22

JET, MAIN (#130) (NOT AVAILABLE)

99102-13004

Unavailable

22

JET, MAIN (#135) (NOT AVAILABLE)

99102-13504

Unavailable

22

JET, MAIN (#140) (NOT AVAILABLE)

99102-14004

Unavailable

22

JET, MAIN (#145) (NOT AVAILABLE)

99102-14504

Unavailable

23

JET, SLOW (#45) (NOT AVAILABLE)

99132-04504

Unavailable

23

JET, SLOW (#38) (NOT AVAILABLE)

99134-03804

Unavailable

23

JET, SLOW (#40) (NOT AVAILABLE)

99134-04004

Unavailable

23

JET, SLOW (#42) (NOT AVAILABLE)

99134-04204

Unavailable

23

JET, SLOW (#45) (NOT AVAILABLE) This part replaces 99134-04504.

99132-04504

Unavailable
