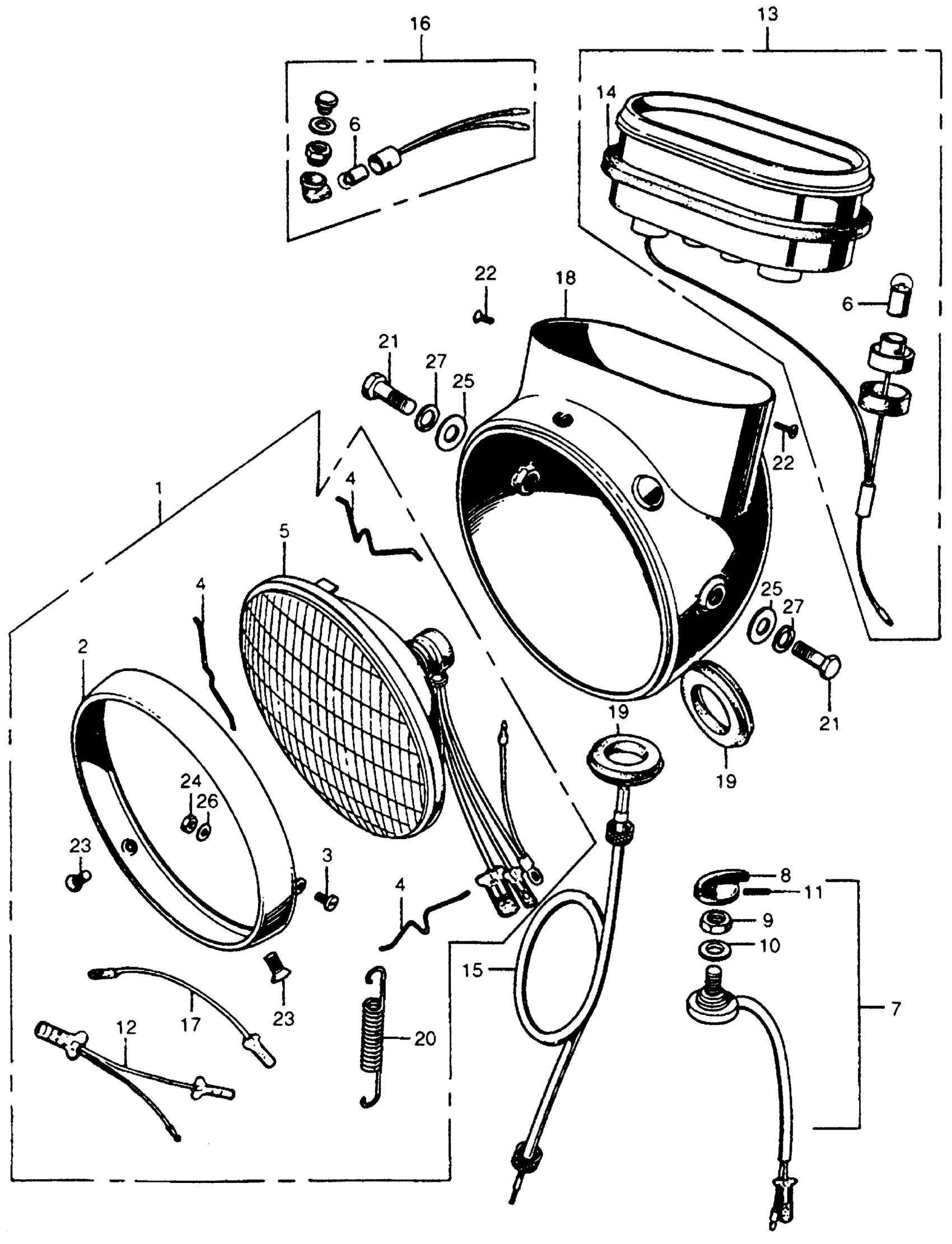

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 HEADLIGHT + SPEEDOMETER Diagram

#

Description
Price

1

HEADLIGHT ASSY.

33100-283-000

Unavailable

1

HEADLIGHT ASSY. This part replaces 33100-283-671.

33100-283-000

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 0010001 to 1051691

33101-268-672

Unavailable

3

SCREW (3MM) (NOT AVAILABLE) This part replaces 33102-200-000.

33102-200-003

Unavailable

3

SCREW (3MM) (NOT AVAILABLE)

33102-200-003

Unavailable

4

SPRING, UNIT HOLDER | Use from Frame SN 0010001 to 1051691

33108-268-000

Unavailable

5

SEALED BEAM UNIT (NOT AVAILABLE) | Use from Frame SN 0010001 to 1051691

33120-268-670

Unavailable

6

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

7

SWITCH ASSY., LIGHT (NOT AVAILABLE)

35150-268-810

Unavailable

8

KNOB, LIGHT SWITCH (NOT AVAILABLE) This part replaces 35151-268-000.

35151-292-751

Unavailable

8

KNOB, LIGHT SWITCH (NOT AVAILABLE)

35151-292-751

Unavailable

9

NUT, LIGHT SWITCH (NOT AVAILABLE)

35152-268-000

Unavailable

10

WASHER, LIGHTING SWITCH (NOT AVAILABLE) | Use from Frame SN 0400001

35153-268-000

Unavailable

11

SCREW, SETTING

35154-268-000

Unavailable

12

WIRE A, PILOT LAMP (NOT AVAILABLE)

35451-262-305

Unavailable

13

SPEEDOMETER/TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37200-268-812.

37200-268-820

Unavailable

13

SPEEDOMETER/TACHOMETER ASSY. (NOT AVAILABLE) This part replaces 37200-268-813.

37200-268-820

Unavailable

13

SPEEDOMETER/TACHOMETER ASSY. (NOT AVAILABLE) | Use up to Frame SN 1001730

37200-268-820

Unavailable

13

SPEEDOMETER/TACHOMETER ASSY. (NOT AVAILABLE) | Use from Frame SN 1001731

37200-268-821

Unavailable

14

GASKET, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0020320

37242-268-000

Unavailable

14

GASKET, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 0020321 to 0021361

37242-268-010

Unavailable

14

GASKET, SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 0021362

37242-268-020

Unavailable

15

CABLE, TACHOMETER (NOT AVAILABLE)

37260-268-020

Unavailable

16

LAMP ASSY., PILOT (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029791

37700-259-000

Unavailable

16

LAMP ASSY., PILOT (NOT AVAILABLE) | Use from Frame SN 0310001 to 0391222

37700-259-000

Unavailable

16

LAMP ASSY., PILOT (NOT AVAILABLE) | Use from Frame SN 0102661 to 0109755

37700-272-000

Unavailable

17

SUB-WIRE B, BEAM PILOT (NOT AVAILABLE)

37706-268-810

Unavailable

18

CASE, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 0021363 This part replaces 61300-268-810Z.

61301-268-670Z

Unavailable

18

CASE, HEADLIGHT | Use from Frame SN 0010001 to 0021362

61301-268-325Z

Unavailable

18

CASE, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 0021363

61301-268-670Z

Unavailable

19

GROMMET, TACHOMETER CABLE (NOT AVAILABLE) | Use from Frame SN 0010001 to 0021362

61302-268-010

Unavailable

19

GROMMET A, HEADLIGHT CASE | Use from Frame SN 0010001 to 0021362

61302-268-020

Unavailable

19

GROMMET A, HEADLIGHT CASE | Use from Frame SN 0021363

61302-268-020

Unavailable

20

SPRING, SPEEDOMETER (NOT AVAILABLE)

61321-268-010

Unavailable

21

BOLT, LIGHT CASE SETTING (NOT AVAILABLE)

90154-268-000

Unavailable

22

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$1.49

22

SCREW, PAN (4X6)

93500-04006-0A

$1.49

22

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

23

SCREW, OVAL (5X10) (SOURCE: VINTAGE PARTS INC.)

93700-05010-0B

Unavailable

23

SCREW, OVAL (5X10) (SOURCE: VINTAGE PARTS INC.) This part replaces 93700-05010-02.

93700-05010-0B

Unavailable

24

NUT, HEX. (3MM) (NOT AVAILABLE)

94001-03020

Unavailable

25

WASHER, PLAIN (10MM)

94101-10000

$1.49

26

WASHER, SPRING (3MM)

94111-03000

$1.49

27

WASHER, SPRING (8MM)

94111-10000

$1.49
