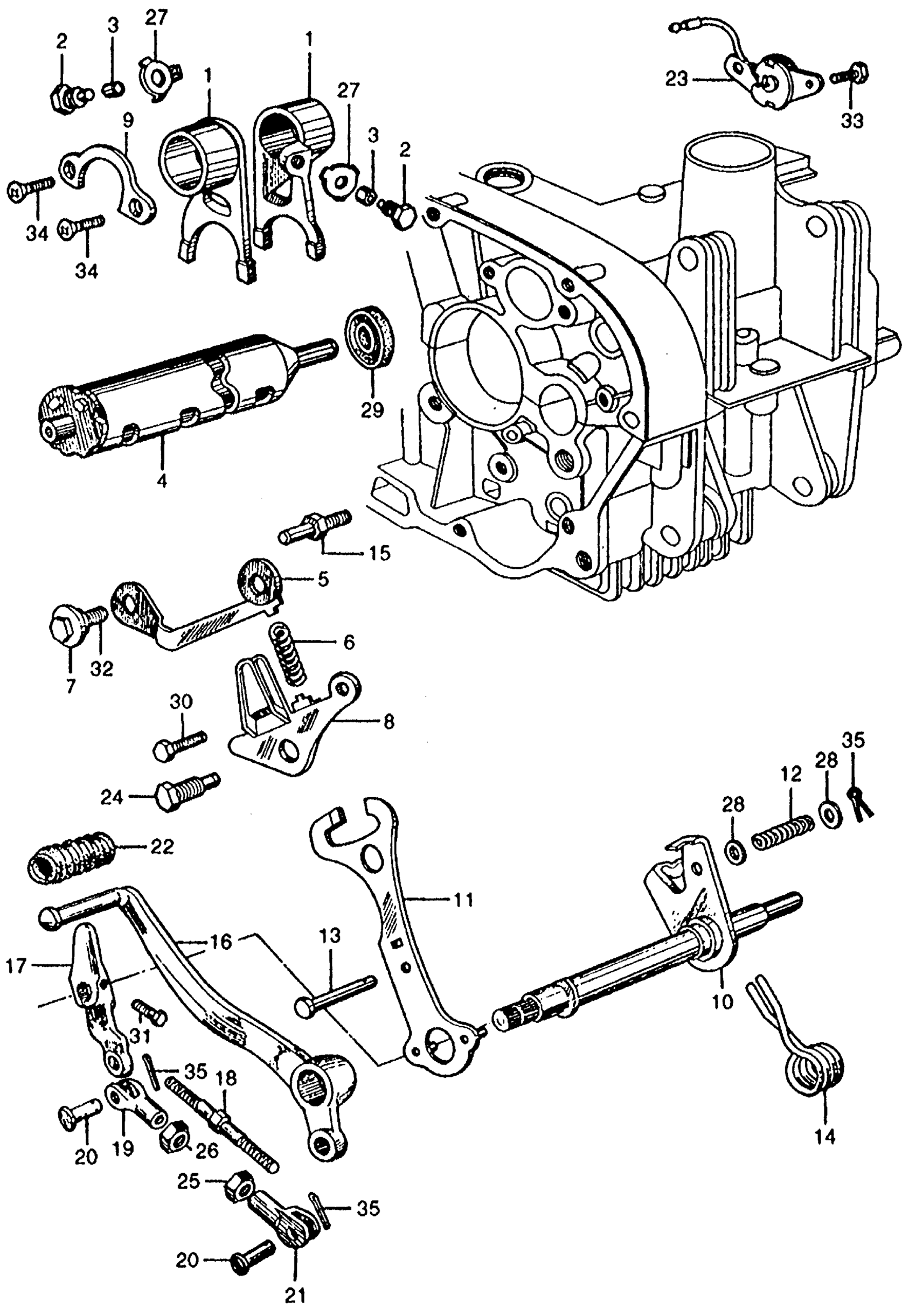

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 GEAR CHANGE Diagram

#

Description
Price

1

FORK, GEARSHIFT (NOT AVAILABLE)

24211-268-000

Unavailable

2

PIN, SHIFT FORK GUIDE (NOT AVAILABLE)

24261-253-010

Unavailable

3

ROLLER, SHIFT FORK GUIDE PIN (NOT AVAILABLE)

24262-253-000

Unavailable

4

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-268-000

Unavailable

5

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24430-268-000

Unavailable

6

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-250-000

Unavailable

7

COLLAR, STOPPER ARM DISTANCE (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

24438-259-000

Unavailable

8

GUIDE, SHIFT DRUM (NOT AVAILABLE)

24440-268-000

Unavailable

9

PLATE, SHIFT DRUM SETTING (NOT AVAILABLE)

24455-268-000

Unavailable

10

SPINDLE, GEARSHIFT

24610-259-030

Unavailable

11

ARM, GEARSHIFT

24630-268-000

$44.07

12

SPRING, SHIFT ARM (NOT AVAILABLE)

24641-250-010

Unavailable

13

PIN, SHIFT ARM SPRING (NOT AVAILABLE)

24642-250-000

Unavailable

14

SPRING, GEAR C (NOT AVAILABLE)

24651-250-000

Unavailable

15

PIN, SHIFT RETURN SPRING

24652-259-000

$4.97

16

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-268-020

Unavailable

17

ARM, GEARSHIFT (NOT AVAILABLE)

24711-268-030

Unavailable

18

ROD A, GEARSHIFT (NOT AVAILABLE)

24731-268-000

Unavailable

19

JOINT, FR. CHANGE ROD (NOT AVAILABLE)

24741-268-000

Unavailable

20

PIN, CHANGE ROD JOINT (NOT AVAILABLE)

24742-268-000

Unavailable

21

JOINT, RR. CHANGE ROD (NOT AVAILABLE)

24743-268-010

Unavailable

22

RUBBER, CHANGE PEDAL This part replaces 24781-268-000.

95011-40000

$1.49

22

RUBBER, SHIFT PEDAL

95011-40000

$1.49

23

SWITCH ASSY., NEUTRAL (NOT AVAILABLE)

35750-268-000

Unavailable

24

BOLT, KICK STARTER STOPPER (NOT AVAILABLE)

90028-259-000

Unavailable

25

NUT, LOCK (8MM) (NOT AVAILABLE)

90349-205-000

Unavailable

26

NUT, LOCK (8MM) (NOT AVAILABLE)

90349-268-000

Unavailable

27

WASHER, SHIFT FORK LOCK (NOT AVAILABLE)

90416-250-000

Unavailable

28

WASHER, SHIFT ARM SPRING (NOT AVAILABLE)

90418-253-000

Unavailable

29

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.57

29

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.57

29

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

29

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

29

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

29

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

29

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

29

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

29

OIL SEAL (12X25X4.5) This part replaces 91204-200-000.

91202-426-003

$5.57

30

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

31

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

31

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

32

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

32

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

33

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

33

SCREW, PAN (6X12)

93500-06012-0A

$1.49

33

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

34

SCREW, FLAT (6X25) This part replaces 93600-06025.

93600-06025-0A

Unavailable

34

SCREW, FLAT (6X25)

93600-06025-0A

Unavailable

35

PIN, COTTER (2.0X15)

94201-20150

$1.49

35

PIN, COTTER (2.0X35)

94201-20350

$1.49
