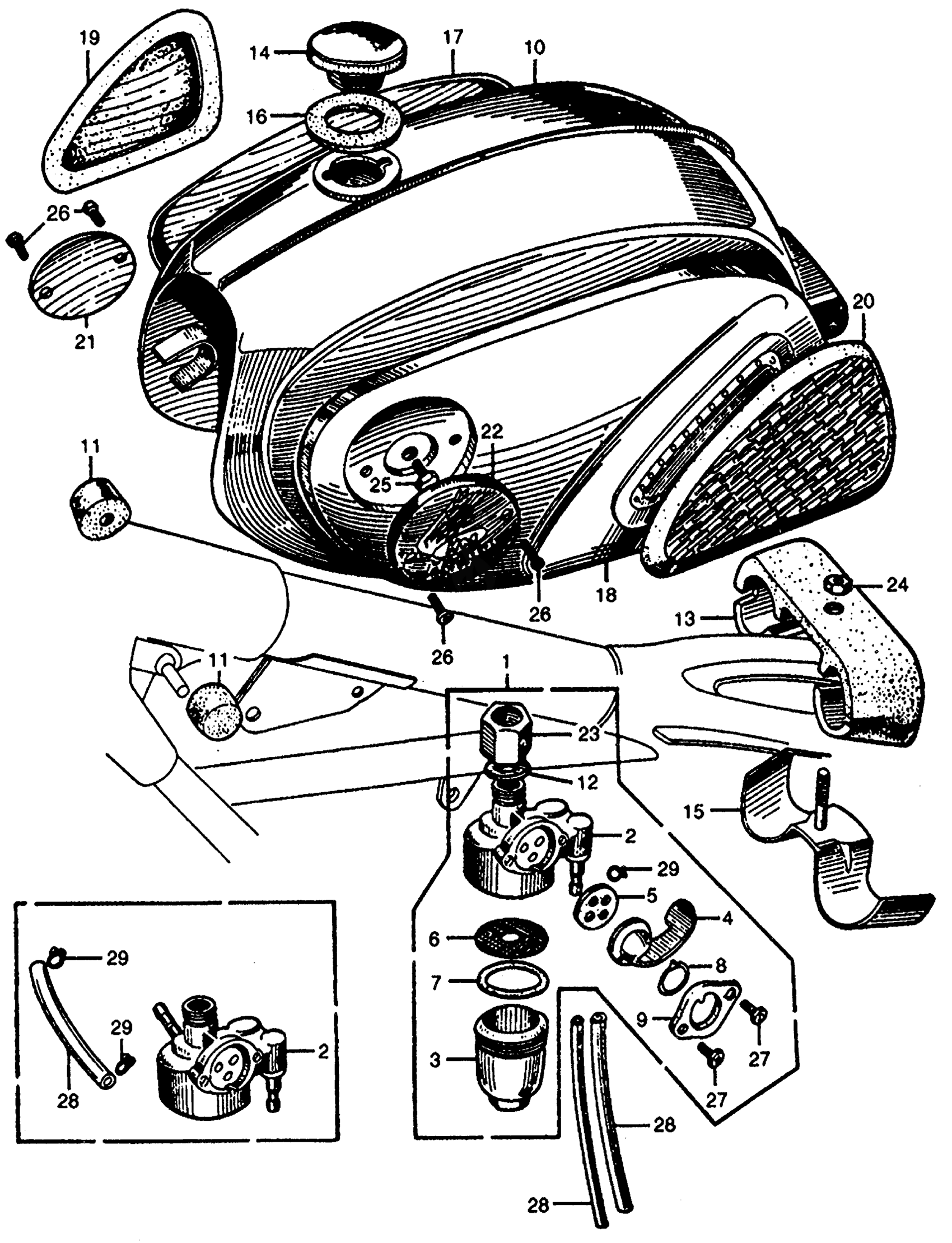

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK, FUEL (NOT AVAILABLE) This part replaces 16950-268-000.

16950-268-315

Unavailable

1

PETCOCK, FUEL (NOT AVAILABLE) This part replaces 16950-268-010.

16950-268-315

Unavailable

1

PETCOCK, FUEL (NOT AVAILABLE)

16950-268-315

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE) | Use from Frame SN 0010001 to 1052487

16951-268-010

Unavailable

2

BODY, FUEL LEVER (NOT AVAILABLE) | Use from Frame SN 1052488

16951-268-020

Unavailable

3

CUP, FUEL STRAINER

16952-268-000

Unavailable

4

LEVER, VALVE (NOT AVAILABLE)

16953-268-020

Unavailable

5

GASKET, VALVE

16955-268-020

$5.08

6

SCREEN, FUEL STRAINER

16957-268-010

$11.38

7

GASKET, FUEL STRAINER CUP

16958-268-010

$8.89

8

SPRING, PETCOCK LEVER

16960-268-010

Unavailable

9

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16961-268-010

Unavailable

10

TANK, FUEL (NOT AVAILABLE) This part replaces 17500-268-810Z.

17500-268-811Z

Unavailable

10

TANK, FUEL (NOT AVAILABLE)

17500-268-811Z

Unavailable

11

RUBBER, FR. FUEL TANK (NOT AVAILABLE)

17611-268-000

Unavailable

12

GASKET, PETCOCK (NOT AVAILABLE)

17613-242-020

Unavailable

13

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-268-030

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-259-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

14

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

15

STAY, RR. FUEL TANK (NOT AVAILABLE)

17604-268-030

Unavailable

16

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

$2.85

16

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

16

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

17

COVER, R. FUEL TANK SIDE (NOT AVAILABLE)

17640-268-010

Unavailable

18

COVER, L. FUEL TANK SIDE (NOT AVAILABLE)

17650-268-010

Unavailable

19

RUBBER, R. KNEE GRIP (NOT AVAILABLE)

17661-268-010

Unavailable

20

RUBBER, L. KNEE GRIP (NOT AVAILABLE)

17662-268-010

Unavailable

21

EMBLEM, R. FUEL TANK This part replaces 87121-215-000.

87121-230-010

Unavailable

21

EMBLEM, R. FUEL TANK This part replaces 87121-224-000.

87121-230-010

Unavailable

21

EMBLEM, R. FUEL TANK This part replaces 87121-230-000.

87121-230-010

Unavailable

21

EMBLEM, R. FUEL TANK

87121-230-010

Unavailable

21

EMBLEM, R. FUEL TANK This part replaces 87121-237-680.

87121-230-010

Unavailable

21

EMBLEM, R. FUEL TANK This part replaces 87121-279-810.

87121-230-010

Unavailable

22

EMBLEM, L. FUEL TANK This part replaces 87122-215-000.

87122-230-010

Unavailable

22

EMBLEM, L. FUEL TANK This part replaces 87122-224-000.

87122-230-010

Unavailable

22

EMBLEM, L. FUEL TANK This part replaces 87122-230-000.

87122-230-010

Unavailable

22

EMBLEM, L. FUEL TANK

87122-230-010

Unavailable

22

EMBLEM, L. FUEL TANK This part replaces 87122-237-680.

87122-230-010

Unavailable

22

EMBLEM, L. FUEL TANK This part replaces 87122-279-810.

87122-230-010

Unavailable

23

NUT, FUEL VALVE JOINT (NOT AVAILABLE)

90303-268-000

Unavailable

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

26

SCREW, PAN (3X10) (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

93500-03010-0B

Unavailable

26

SCREW, PAN (3X10) (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755 This part replaces 93500-03010-02.

93500-03010-0B

Unavailable

26

SCREW, PAN (3X10) (NOT AVAILABLE) | Use from Frame SN 0312293 This part replaces 93500-03010-02.

93500-03010-0B

Unavailable

26

SCREW, OVAL (3X10) | Use from Frame SN 0010001 to 0029791 This part replaces 93700-03010-02.

93700-03010-0A

Unavailable

26

SCREW, OVAL (3X10) | Use from Frame SN 0310001 to 0312292 This part replaces 93700-03010-02.

93700-03010-0A

Unavailable

27

SCREW, OVAL (3X8)

93700-03008-0B

$1.31

27

SCREW, OVAL (3X8) This part replaces 93700-03008-02.

93700-03008-0B

$1.31

28

TUBE (5.5X350) This part replaces 15761-045-000.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 16968-001-222.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 16968-202-222.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 16968-205-222.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 16968-205-322.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 16968-270-222.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 16969-268-222.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 17645-259-010.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 17741-268-222.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50000.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50100.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50110.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50140.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50144.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50150.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50165.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50168.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50180.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50190.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50200.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50210.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50220.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50250.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50450.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50620.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50830.

95001-55000-40

Unavailable

28

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

29

CLIP, TUBE (C9)

95002-50000

$1.49
