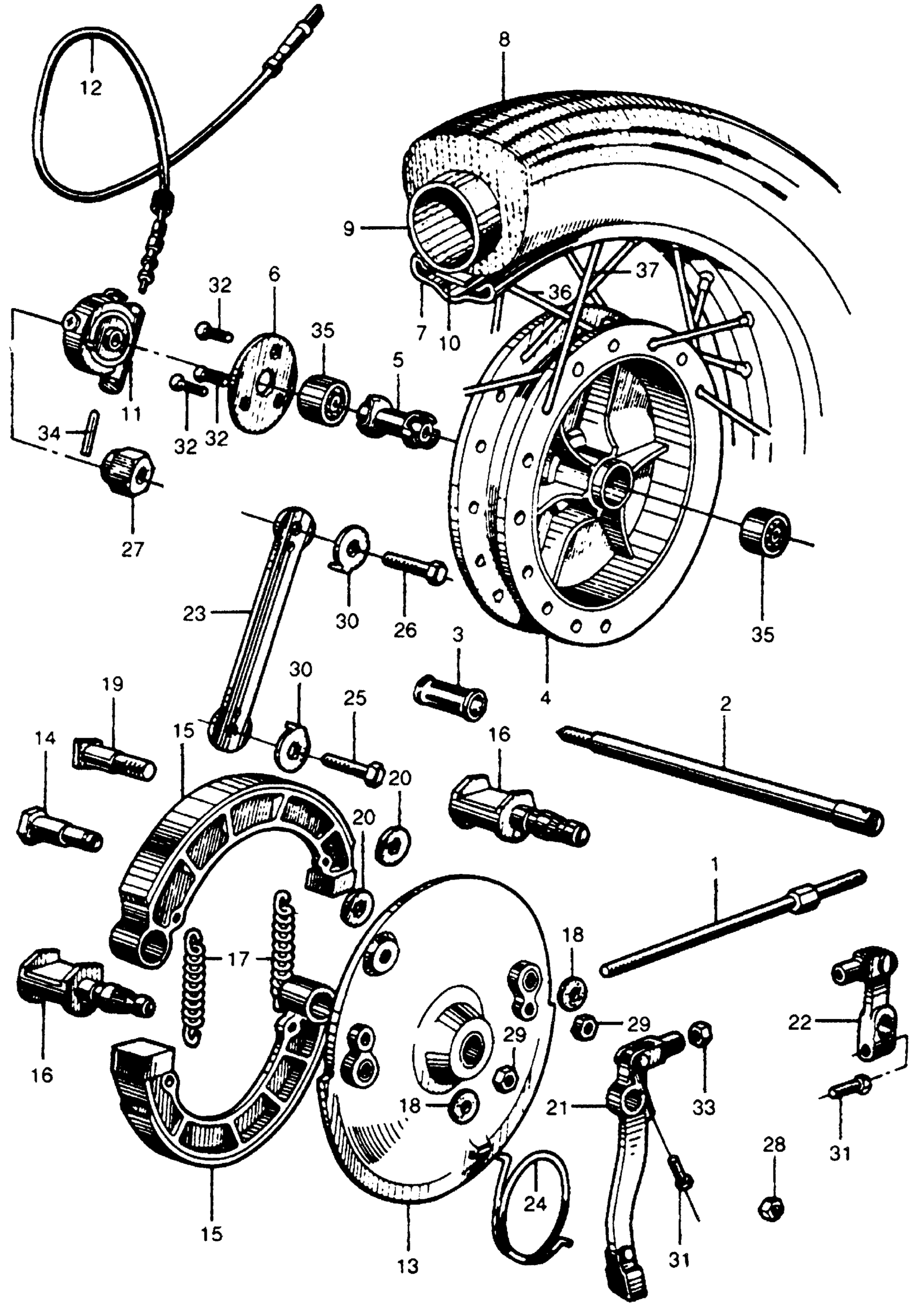

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 FRONT WHEEL Diagram

#

Description
Price

1

ROD, RR. BRAKE (NOT AVAILABLE)

43423-268-000

Unavailable

2

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-268-000

Unavailable

3

COLLAR, FR. SIDE WHEEL (NOT AVAILABLE) | Use from Frame SN 1030130

44311-268-000

Unavailable

4

HUB, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0010001 to 0021401

44601-268-000

Unavailable

4

HUB, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0021402

44601-268-010

Unavailable

5

COLLAR, FR. AXLE DISTANCE

44620-268-000

Unavailable

6

RETAINER, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0010001 to 0021491

44641-268-000

Unavailable

6

RETAINER, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0021492

44641-268-010

Unavailable

7

RIM, FR. WHEEL (NOT AVAILABLE)

44701-268-000

Unavailable

8

TIRE, FR. (2.75-18) (YOKOHAMA) (NOT AVAILABLE) This part replaces 44711-268-000.

44711-315-009

Unavailable

8

TIRE, FR. (2.75-18) (YOKOHAMA) (NOT AVAILABLE)

44711-315-009

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 08400-21600.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 42712-166-004.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 44712-028-000.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 44712-150-005.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 44712-205-000.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 44712-268-000.

42712-KC6-005

Unavailable

9

TUBE (275/300-18) (IRC) This part replaces 44712-315-009.

42712-KC6-005

Unavailable

10

FLAP, TIRE (18) (BS) (NOT AVAILABLE)

44713-268-000

Unavailable

11

BOX, SPEEDOMETER GEAR (NOT AVAILABLE) | Use from Frame SN 0010001 to 0021491

44800-268-000

Unavailable

11

BOX, SPEEDOMETER GEAR | Use from Frame SN 0021492 to 1001730

44800-268-010

Unavailable

11

BOX, SPEEDOMETER GEAR (NOT AVAILABLE) | Use from Frame SN 1001731

44800-268-020

Unavailable

12

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 0010001 to 1001730

44830-268-010

Unavailable

12

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE) | Use from Frame SN 1001731

44830-270-000

Unavailable

13

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0010001 to 0010280

45100-268-010

Unavailable

13

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0010281

45100-268-020

Unavailable

14

PIN A, FR. BRAKE SHOE ANCHOR | Use from Frame SN 0010001 to 0029791

45110-268-000

Unavailable

14

PIN A, FR. BRAKE SHOE ANCHOR (NOT AVAILABLE) | Use from Frame SN 0102399 to 0109755

45110-268-010

Unavailable

15

SHOE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0010001 to 0010280

45120-268-000

Unavailable

15

SHOE, BRAKE | Use from Frame SN 0010281 This part replaces 45120-268-020.

45120-458-305

Unavailable

15

SHOE, BRAKE | Use from Frame SN 0010281 This part replaces 45120-283-000.

45120-458-305

Unavailable

15

SHOE, BRAKE | Use from Frame SN 0010281 This part replaces 45120-458-670.

45120-458-305

Unavailable

16

ARM, FR. BRAKE STOPPER (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029791

45131-268-020

Unavailable

16

CAM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

45131-268-030

Unavailable

17

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use from Frame SN 0010001 to 0022751

45133-268-000

Unavailable

17

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use from Frame SN 0022752

45133-268-010

Unavailable

18

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

19

PIN B, FR. BRAKE SHOE ANCHOR (NOT AVAILABLE) | Use from Frame SN 0010001 to 0010280

45141-268-000

Unavailable

20

WASHER, ANCHOR PIN SETTING (NOT AVAILABLE)

45142-268-000

Unavailable

21

ARM A, FR. BRAKE (NOT AVAILABLE) This part replaces 45410-268-020.

45410-268-030

Unavailable

21

ARM A, FR. BRAKE (NOT AVAILABLE)

45410-268-030

Unavailable

22

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0102399 to 0109755 This part replaces 45420-268-010.

45420-458-670

Unavailable

22

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0400001 This part replaces 45420-268-010.

45420-458-670

Unavailable

22

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0102399 to 0109755

45420-458-670

Unavailable

23

ARM, FR. BRAKE STOPPER (NOT AVAILABLE)

45431-268-040

Unavailable

24

SPRING, FR. BRAKE ARM (NOT AVAILABLE) | Use from Frame SN 0010001 to 0010280

45435-268-010

Unavailable

24

SPRING, FR. BRAKE ARM (NOT AVAILABLE) | Use from Frame SN 0010281

45435-268-020

Unavailable

25

BOLT A, FR. BRAKE STOPPER ARM (NOT AVAILABLE)

90125-268-000

Unavailable

26

BOLT B, FR. BRAKE STOPPER ARM (NOT AVAILABLE) | Use from Frame SN 0010001 to 0029791

90126-268-000

Unavailable

26

BOLT B, FR. BRAKE STOPPER ARM (NOT AVAILABLE) | Use from Frame SN 0310001 to 0312191

90126-268-000

Unavailable

26

BOLT B, FR. BRAKE STOPPER ARM (NOT AVAILABLE) | Use from Frame SN 0312192 to 1030129

90126-268-000

Unavailable

26

BOLT B, FR. BRAKE STOPPER ARM (NOT AVAILABLE) | Use from Frame SN 1030130

90126-268-010

Unavailable

27

NUT, FR. WHEEL AXLE (NOT AVAILABLE)

90305-268-000

Unavailable

28

NUT, CASTLE (10MM) (NOT AVAILABLE) | Use from Frame SN 0010001 to 0010280

90307-205-000

Unavailable

28

NUT, SELF-LOCK (10MM) | Use from Frame SN 0010281

90351-268-000

$2.87

29

NUT, ANCHOR PIN SETTING (NOT AVAILABLE)

90316-205-000

Unavailable

30

WASHER, TONGUED (8.2MM) (NOT AVAILABLE)

90532-268-000

Unavailable

31

BOLT, HEX. (6X22) | Use from Frame SN 0100001 to 0109755 This part replaces 92000-06022.

92101-06022-0A

$1.54

31

BOLT, HEX. (6X22) | Use from Frame SN 0312673 This part replaces 92000-06022.

92101-06022-0A

$1.54

31

BOLT, HEX. (6X22) | Use from Frame SN 0100001 to 0109755 This part replaces 92000-06022-00.

92101-06022-0A

$1.54

31

BOLT, HEX. (6X22) | Use from Frame SN 0312673 This part replaces 92000-06022-00.

92101-06022-0A

$1.54

31

BOLT, HEX. (6X22) | Use from Frame SN 0100001 to 0109755

92101-06022-0A

$1.54

31

BOLT, HEX. (6X22) | Use from Frame SN 0312673

92101-06022-0A

$1.54

32

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

32

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

33

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

33

NUT, HEX. (5MM)

94001-05000-0S

$2.74

34

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

34

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

34

PIN, COTTER (3.0X45)

94201-30450

$1.49

35

BEARING, RADIAL BALL (6302U)

96140-63020

$16.99

36

SPOKE A, FR.

97422-43140-1

Unavailable

37

SPOKE B

97547-43138-1

Unavailable
