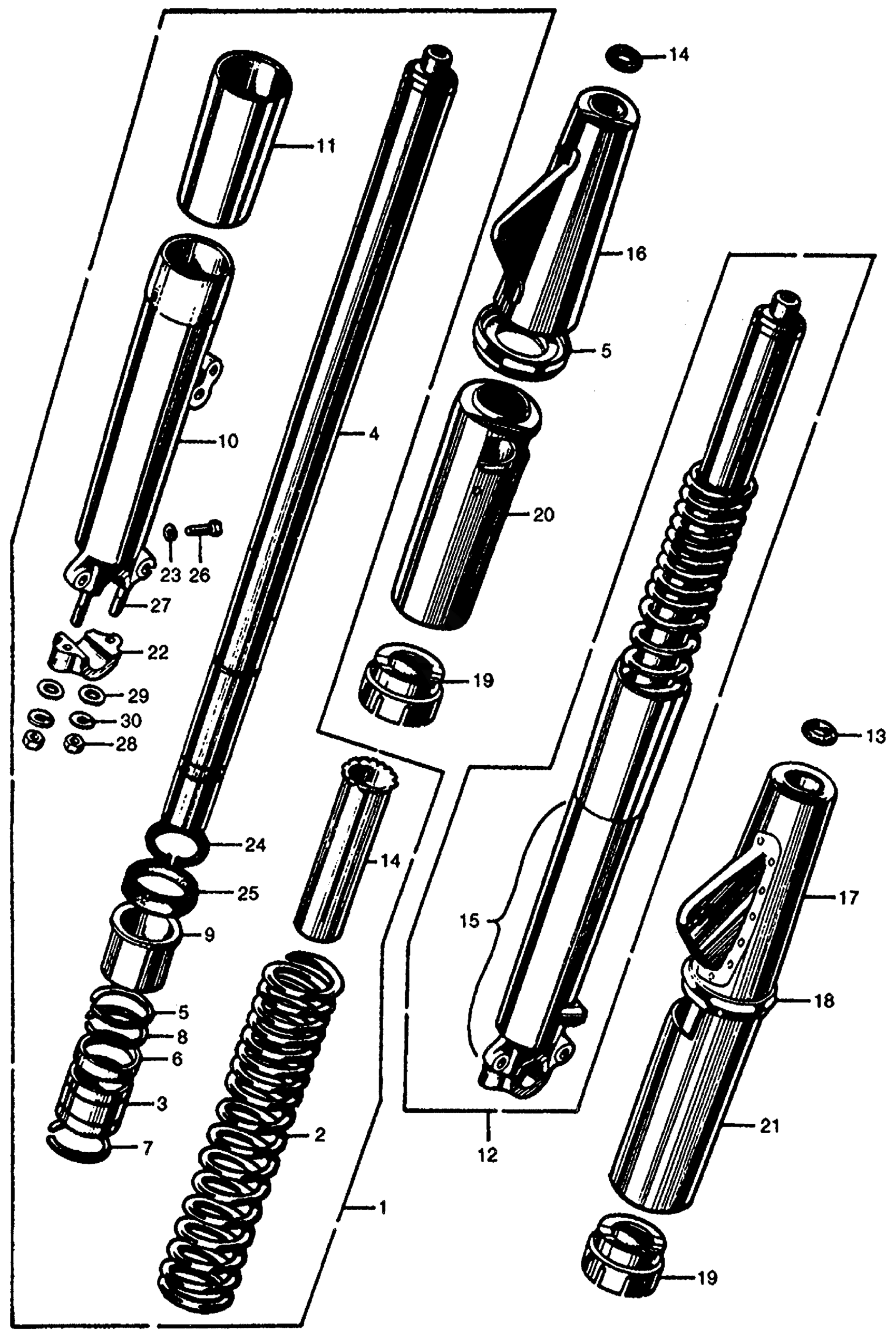

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 FRONT FORK II Diagram

#

Description
Price

1

FORK ASSY., R. FR. *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1030130

51400-268-020S

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1030130

51401-268-010

Unavailable

3

PISTON, FR. FORK (NOT AVAILABLE)

51405-283-010

Unavailable

4

PIPE, FR. FORK | Use from Frame SN 1030130 to 1050469

51410-268-080

Unavailable

4

PIPE, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1050470

51410-268-090

Unavailable

5

RING, PISTON STOPPER (NOT AVAILABLE) | Use from Frame SN 1030130

51424-283-000

Unavailable

6

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-268-020

Unavailable

7

RING, FR. FORK PISTON SNAP (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

51445-268-000

Unavailable

8

RING, FORK VALVE STOPPER (NOT AVAILABLE)

51446-268-000

Unavailable

9

GUIDE, FR. FORK PIPE (NOT AVAILABLE) | Use from Frame SN 1030130

51451-268-010

Unavailable

10

CASE, R. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1030130

51465-268-030S

Unavailable

10

CASE, R. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1030130 to 1050469

51465-268-040S

Unavailable

11

COVER, CASE (LOWER) (NOT AVAILABLE) | Use from Frame SN 1050470

51499-268-330

Unavailable

12

FORK ASSY., L. FR. *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1030130

51500-268-020S

Unavailable

13

O-RING (9.4X2.4) This part replaces 51521-268-010.

91304-KK3-830

$2.31

13

O-RING (9.4X2.4)

91304-KK3-830

$2.31

13

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

14

GUIDE, FR. FORK SPRING (NOT AVAILABLE) | Use from Frame SN 1030130

51523-268-000

Unavailable

15

CASE, L. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 1030130 to 1050469

51565-268-030S

Unavailable

15

CASE, L. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1050470

51565-268-040S

Unavailable

16

COVER, R. FR. FORK (UPPER) (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

51602-268-030Z

Unavailable

17

COVER, L. FR. FORK (UPPER) | Use from Frame SN 0100001 to 0109755

51606-268-030Z

Unavailable

17

COVER, L. FR. FORK (UPPER) | Use from Frame SN 0311503

51606-268-030Z

Unavailable

18

RIM, FR. FORK (NOT AVAILABLE) | Use from Frame SN 0100001 to 0109755

51608-268-020

Unavailable

19

GUIDE, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1030130

51609-268-000

Unavailable

20

COVER, R. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 1030130

51611-268-030Z

Unavailable

21

COVER, L. FR. FORK (LOWER) (NOT AVAILABLE) | Use from Frame SN 1030130

51612-268-030Z

Unavailable

22

HOLDER 1C, FR. FORK AXLE This part replaces 51634-283-000T.

95014-41000

$13.38

22

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

24

CIRCLIP (43MM) (NOT AVAILABLE) | Use from Frame SN 1030130

90667-268-000

Unavailable

25

OIL SEAL, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1030130

90755-268-010

Unavailable

26

BOLT, HEX. (6X10) | Use from Frame SN 1030130 This part replaces 92000-06010.

92101-06010-0A

$1.49

26

BOLT, HEX. (6X10) | Use from Frame SN 1030130

92101-06010-0A

$1.49

27

BOLT, STUD (8X49) (NOT AVAILABLE) | Use from Frame SN 1030130

92700-08049-30

Unavailable

28

NUT, HEX. (8MM) | Use from Frame SN 1030130 This part replaces 94001-08000.

94030-08000

$1.49

28

NUT, HEX. (8MM) | Use from Frame SN 1030130

94030-08000

$1.49

28

NUT, HEX. (8MM) | Use from Frame SN 1030130 This part replaces 94030-08200.

94030-08000

$1.49

29

WASHER, PLAIN (8MM) | Use from Frame SN 1030130

94101-08000

$1.49

30

WASHER, SPRING (8MM) | Use from Frame SN 1030130

94111-08000

$1.49
