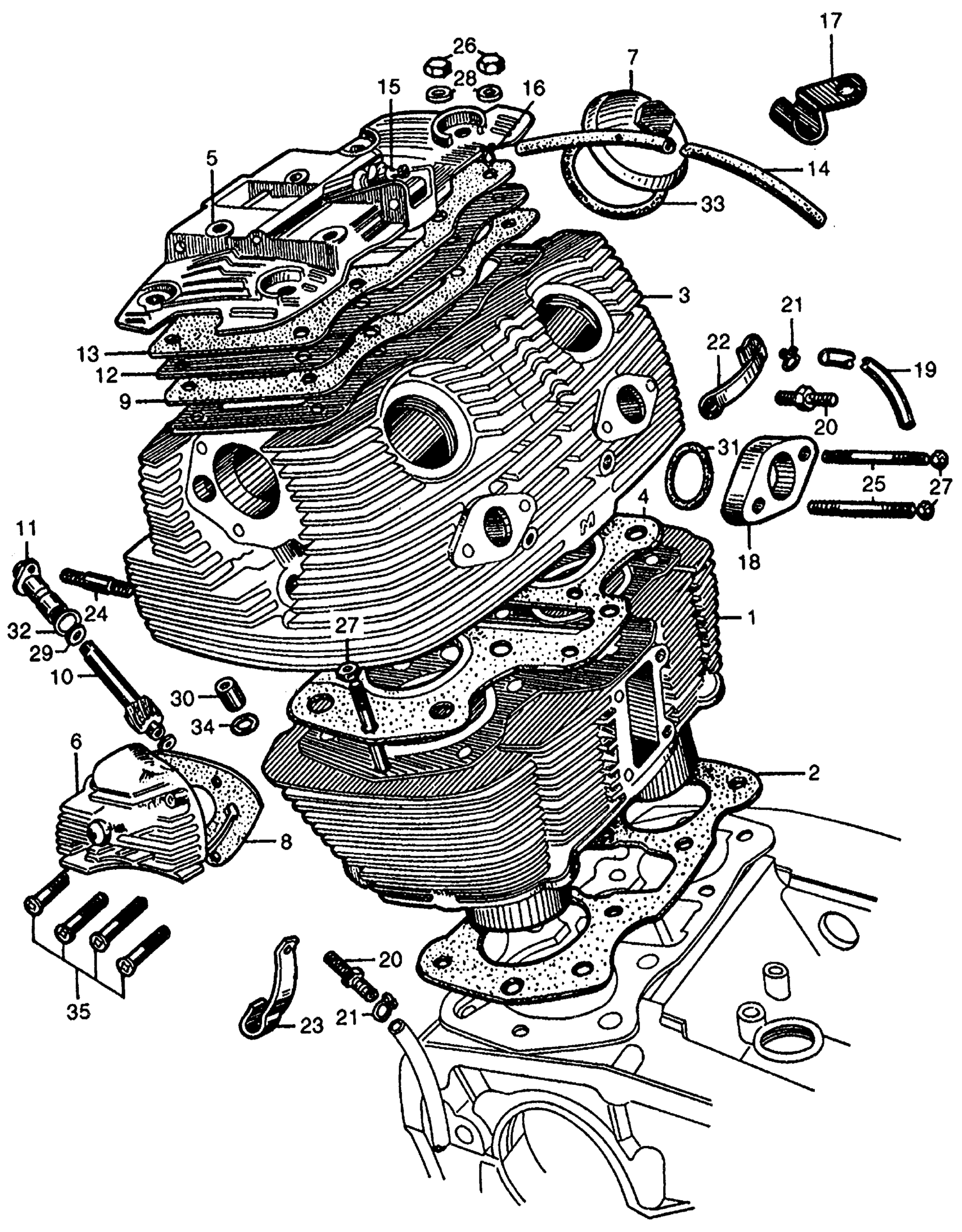

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER | Use from Engine SN 0110001 to 0210900

12100-267-000

Unavailable

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

12100-267-010

Unavailable

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN 1050999

12100-267-020

Unavailable

2

GASKET, CYLINDER (NOT AVAILABLE) | Use from Engine SN 0110001 to 0210900 This part replaces 12191-259-000.

12191-259-010

Unavailable

2

GASKET, CYLINDER (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

12191-259-010

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

12200-275-050

Unavailable

4

GASKET, CYL HD This part replaces 12251-275-000.

12251-275-306

Unavailable

5

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 0110001 to 0110151

12300-268-030

Unavailable

5

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

12300-268-060

Unavailable

6

COVER, L. CYLINDER HEAD SIDE (NOT AVAILABLE) | Use from Engine SN 0110001 to 0312666

12341-268-050

Unavailable

6

COVER, L. CYLINDER HEAD SIDE (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

12341-268-060

Unavailable

7

CAP, CYLINDER HEAD (NOT AVAILABLE)

12361-259-000

Unavailable

8

GASKET, CYLINDER HEAD SIDE COVER (NOT AVAILABLE)

12391-258-000

Unavailable

9

GASKET, CYLINDER HEAD COVER (NOT AVAILABLE)

12391-259-000

Unavailable

10

GEAR, TACHOMETER (NOT AVAILABLE) | Use from Engine SN 0110001 to 0311503

12431-258-000

Unavailable

10

GEAR, TACHOMETER | Use from Engine SN 0100001 to 0109755

12431-268-020

Unavailable

10

GEAR, TACHOMETER | Use from Engine SN 0311504

12431-268-020

Unavailable

11

BUSHING, TACHOMETER GEAR | Use from Engine SN 0110001 to 0110200

12441-258-000

Unavailable

11

BUSHING, TACHOMETER GEAR (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

12441-268-010

Unavailable

12

PLATE, BREATHER SHIELD (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

15755-259-000

Unavailable

13

GASKET, BREATHER SHIELD PLATE (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

15759-259-000

Unavailable

14

TUBE A, BREATHER (NOT AVAILABLE) | Use from Engine SN 0401705

15761-259-010

Unavailable

15

JOINT, BREATHER (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

15766-259-000

Unavailable

16

CLIP, BREATHER TUBE (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

15772-259-000

Unavailable

17

SUPPORTER, TUBE (NOT AVAILABLE) | Use from Engine SN 0401705

15775-259-000

Unavailable

18

GASKET This part replaces 16211-275-000.

16211-275-306

Unavailable

19

TUBE, AIR VENT (NOT AVAILABLE) This part replaces 16230-268-000.

16230-268-010

Unavailable

19

TUBE, AIR VENT (NOT AVAILABLE)

16230-268-010

Unavailable

20

JOINT, AIR VENT TUBE (NOT AVAILABLE) | Use from Engine SN 0100001 to 1050496

16241-253-000

Unavailable

21

CLIP, TUBE (B7) | Use from Engine SN 0100001 to 1050496

95002-02070

$1.80

22

HOLDER, IGNITION WIRE (NOT AVAILABLE) | Use from Engine SN 1002357

32907-268-000

Unavailable

23

HOLDER, IGNITION WIRE (NOT AVAILABLE) | Use from Engine SN 0110001

32908-268-000

Unavailable

24

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546 This part replaces 90038-250-000.

92900-06028-0B

$1.89

24

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546 This part replaces 90051-200-000.

92900-06028-0B

$1.89

24

BOLT, STUD (6X35) | Use from Engine SN 0100001 to 1052546

92700-06035

$1.89

24

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546 This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

24

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546 This part replaces 92700-06040.

92900-06028-0B

$1.89

24

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546 This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

24

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546

92900-06028-0B

$1.89

24

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546 This part replaces 92900-06028-08.

92900-06028-0B

$1.89

25

BOLT, STUD (6X40) (NOT AVAILABLE) | Use from Engine SN 1052547

90045-259-000

Unavailable

25

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546 This part replaces 92700-06040.

92900-06028-0B

$1.89

25

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546 This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

25

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546

92900-06028-0B

$1.89

25

BOLT, STUD (6X28) | Use from Engine SN 0100001 to 1052546 This part replaces 92900-06028-08.

92900-06028-0B

$1.89

26

NUT, CAP (8MM) (NOT AVAILABLE)

90281-259-000

Unavailable

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

WASHER, SEAL (8MM) | Use from Engine SN 0100001 to 0109755 This part replaces 90441-216-000.

90441-286-000

$1.90

28

WASHER, SEAL (8MM) | Use from Engine SN 0110001 to 1005894 This part replaces 90441-216-000.

90441-286-000

$1.90

28

WASHER, SEAL (8MM) | Use from Engine SN 1005895 This part replaces 90441-216-000.

90441-286-000

$1.90

28

WASHER, SEAL (8MM) | Use from Engine SN 0100001 to 0109755 This part replaces 90441-259-000.

90441-286-000

$1.90

28

WASHER, SEAL (8MM) | Use from Engine SN 0110001 to 1005894 This part replaces 90441-259-000.

90441-286-000

$1.90

28

WASHER, SEAL (8MM) | Use from Engine SN 1005895 This part replaces 90441-259-000.

90441-286-000

$1.90

28

WASHER, SEAL (8MM) | Use from Engine SN 0100001 to 0109755

90441-286-000

$1.90

28

WASHER, SEAL (8MM) | Use from Engine SN 0110001 to 1005894

90441-286-000

$1.90

28

WASHER, SEAL (8MM) | Use from Engine SN 1005895

90441-286-000

$1.90

28

WASHER, SEALING (8MM) (NOT AVAILABLE) | Use from Engine SN 1005895

90482-259-000

Unavailable

29

WASHER, THRUST (7.5MM) (NOT AVAILABLE)

90451-258-010

Unavailable

30

PIN, KNOCK (11X18) (NOT AVAILABLE)

90707-259-000

Unavailable

31

O-RING (26.9X2.4) (NOK) This part replaces 91301-253-000.

91302-PF0-003

$2.92

31

O-RING (26.9X2.4)

91302-PF0-003

$2.92

32

O-RING (13.6X2.4)

91301-268-020

$2.95

33

O-RING (47X3.2)

91302-250-010

$7.30

34

O-RING (11X2.0)

91303-259-000

$3.26

35

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

35

SCREW, PAN (6X30)

93500-06030-0A

$1.49
