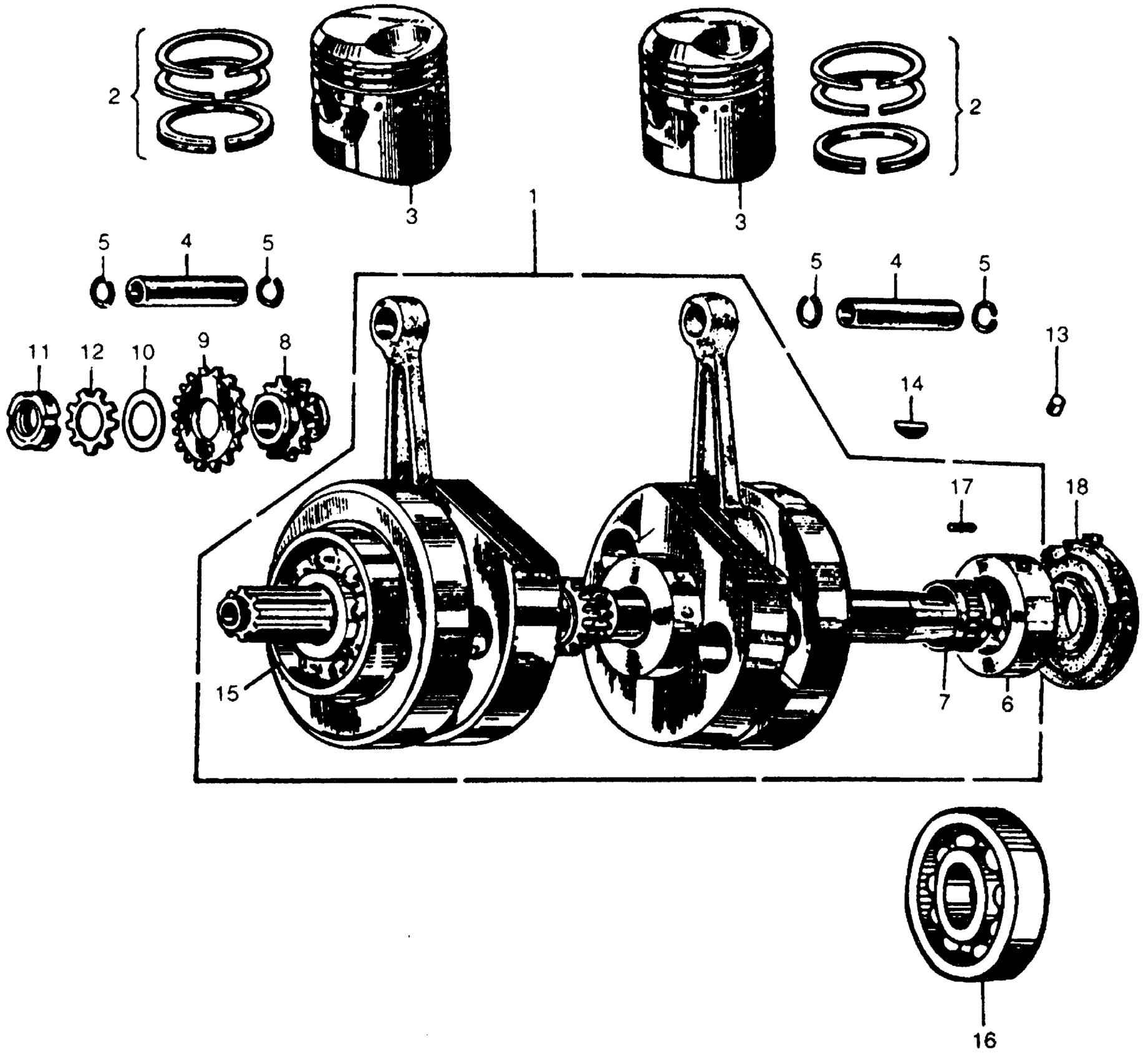

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY. (NOT AVAILABLE) | Use from Engine SN 0110001 to 0110280

13000-275-010

Unavailable

1

CRANKSHAFT ASSY. This part replaces 13000-275-020.

13000-275-030

Unavailable

1

CRANKSHAFT ASSY.

13000-275-030

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755

13010-275-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755 This part replaces 13011-275-300.

13010-275-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) | Use from Engine SN 0210604 This part replaces 13011-275-300.

13010-275-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755 This part replaces 13012-275-000.

13010-275-000

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) | Use from Engine SN 0210604 This part replaces 13012-275-000.

13010-275-000

Unavailable

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755

13020-275-000

$139.85

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755 This part replaces 13022-275-000.

13020-275-000

$139.85

2

RING SET, PISTON (OS 0.25) (NOT AVAILABLE) | Use from Engine SN 0210604 This part replaces 13022-275-000.

13020-275-000

$139.85

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755

13030-275-000

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755 This part replaces 13031-275-300.

13030-275-000

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) | Use from Engine SN 0210604 This part replaces 13031-275-300.

13030-275-000

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755 This part replaces 13032-275-000.

13030-275-000

Unavailable

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) | Use from Engine SN 0210604 This part replaces 13032-275-000.

13030-275-000

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755

13040-275-000

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755 This part replaces 13041-275-300.

13040-275-000

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE) | Use from Engine SN 0210604 This part replaces 13041-275-300.

13040-275-000

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755 This part replaces 13042-275-000.

13040-275-000

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE) | Use from Engine SN 0210604 This part replaces 13042-275-000.

13040-275-000

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755

13050-275-000

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755 This part replaces 13052-275-000.

13050-275-000

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | Use from Engine SN 0210604 This part replaces 13052-275-000.

13050-275-000

Unavailable

3

PISTON (STD) This part replaces 13101-275-000.

13101-275-020

Unavailable

3

PISTON (STD)

13101-275-020

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). This part replaces 13102-275-000.

13102-275-020

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-275-020

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional). This part replaces 13103-275-000.

13103-275-020

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-275-020

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional). This part replaces 13104-275-000.

13104-275-020

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-275-020

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13105-275-000.

13105-275-020

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-275-020

Unavailable

4

PIN, PISTON (NOT AVAILABLE)

13111-251-000

Unavailable

4

PIN, PISTON (NOT AVAILABLE)

13112-251-305

Unavailable

5

CLIP, PISTON PIN (15MM) This part replaces 13115-250-010.

94601-15000

$1.49

5

CLIP, PISTON PIN (15MM) This part replaces 90551-883-000.

94601-15000

$1.49

5

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

6

RACE, BEARING (OUTER) This part replaces 13411-268-010.

13411-268-020

Unavailable

6

RACE, BEARING (OUTER)

13411-268-020

Unavailable

7

RETAINER, ROLLER | Use from Engine SN 0100001 to 0109755

13481-268-010

Unavailable

7

RETAINER, ROLLER | Use from Engine SN 0110281

13481-268-010

Unavailable

8

SPROCKET, PRIMARY DRIVE

13611-259-020

Unavailable

9

SPROCKET, OIL FILTER DRIVE (NOT AVAILABLE)

13621-259-010

Unavailable

10

SPRING, FILTER DRIVE SPROCKET (NOT AVAILABLE)

13692-259-000

Unavailable

11

NUT, LOCK (20MM) (NOT AVAILABLE)

90231-259-010

Unavailable

12

WASHER, LOCK (20MM) (NOT AVAILABLE)

90431-259-010

Unavailable

13

PIN, KNOCK (7X5X12) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0109755

90701-259-010

Unavailable

13

PIN, KNOCK (7X12) (NOT AVAILABLE) | Use from Engine SN 1052524

90705-259-020

Unavailable

14

KEY, WOODRUFF

90741-253-000

Unavailable

15

BEARING, BALL (6306) | Use from Engine SN 0110001 to 0111030

91001-259-010

Unavailable

15

BEARING, BALL (6306) | Use from Engine SN 0110001 to 0109755 This part replaces 91001-259-020.

91001-286-003

Unavailable

15

BEARING, BALL (6306) | Use from Engine SN 0111031 This part replaces 91001-259-020.

91001-286-003

Unavailable

15

BEARING, BALL (6306) | Use from Engine SN 0110001 to 0109755

91001-286-003

Unavailable

15

BEARING, BALL (6306) | Use from Engine SN 0111031

91001-286-003

Unavailable

16

BEARING, BALL (63062) (NOT AVAILABLE) | Use from Engine SN 0110001 to 0110280

91002-259-010

Unavailable

17

ROLLER (4X10) This part replaces 91101-268-000.

96220-40100

$1.49

17

ROLLER (4X10) This part replaces 91103-222-000.

96220-40100

$1.49

17

ROLLER (4X10)

96220-40100

$1.49

18

OIL SEAL (326575) (NOT AVAILABLE)

91201-259-000

Unavailable
