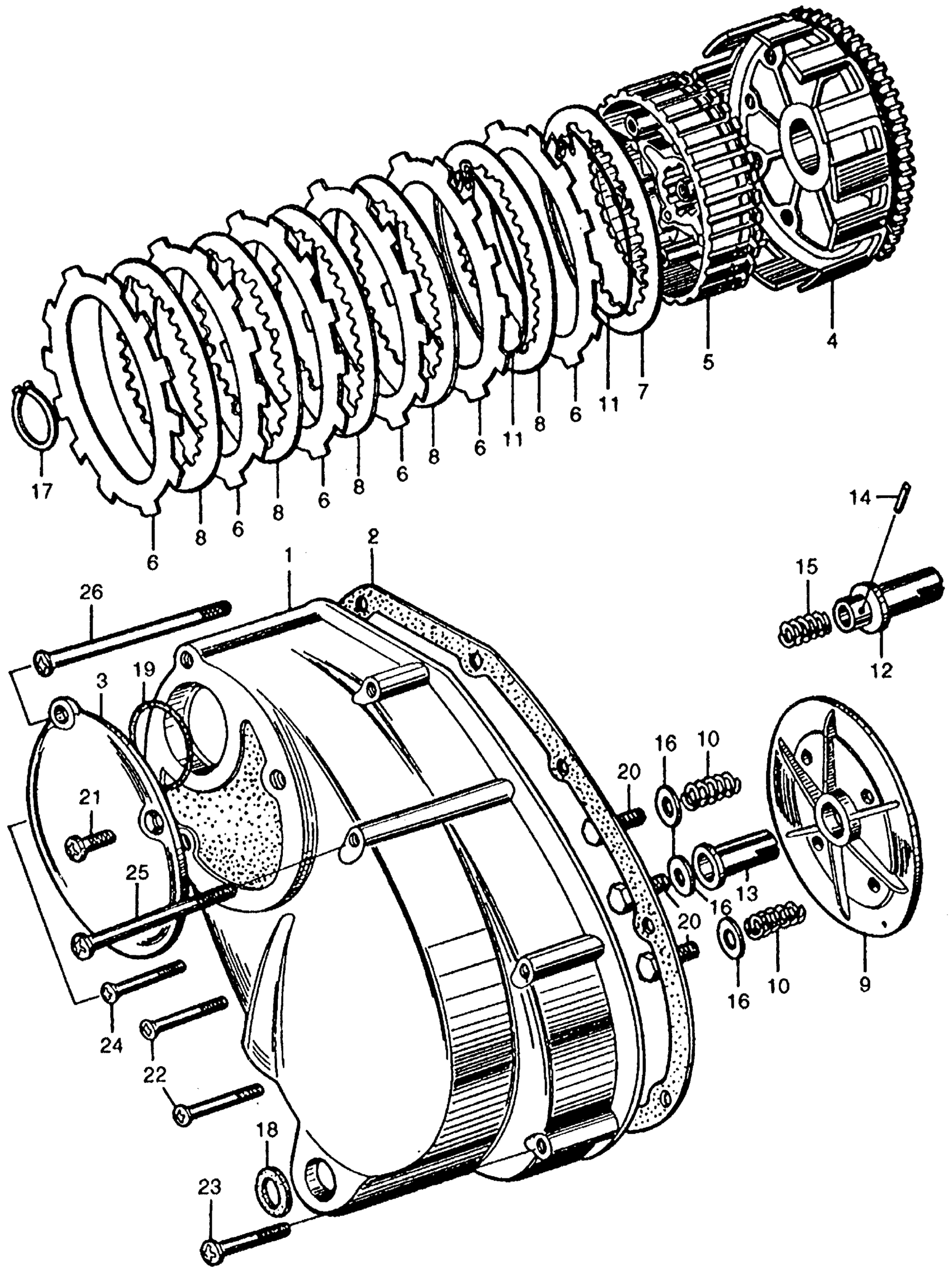

Honda CB77A MOTORCYCLE, JPN, VIN# CB77-100001 CLUTCH + LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 0100001 to 0105233

11340-259-020

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 0105234 to 0109755

11340-259-030

Unavailable

2

GASKET, COVER This part replaces 11395-259-000.

11395-259-306

Unavailable

2

GASKET, COVER

11395-259-306

Unavailable

3

COVER, OIL FILTER | Use from Engine SN 0100001 to 0105233

15481-259-010

Unavailable

3

COVER, OIL FILTER | Use from Engine SN 0110001 to 0319222

15481-259-010

Unavailable

3

COVER, OIL FILTER (NOT AVAILABLE) | Use from Engine SN 0105234 to 0109755

15481-259-020

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

22100-259-000

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 1007035

22100-259-010

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use from Engine SN 0100001 to 0101499

22121-268-000

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use from Engine SN 0101500 to 1012459

22121-268-020

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use from Engine SN 1012460

22121-268-040

Unavailable

6

DISK, CLUTCH FRICTION | Use from Engine SN 0100001 to 0109755

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 0110001 to 1012459

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 0100001 to 0109755 This part replaces 22201-268-010.

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 0110001 to 1012459 This part replaces 22201-268-010.

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 1012460

22201-268-020

Unavailable

7

PLATE, CLUTCH | Use from Engine SN 1007035 to 1012459 This part replaces 22311-259-010.

22321-GHB-811

$12.02

7

PLATE B, CLUTCH | Use from Engine SN 0100001 to 0109755 This part replaces 22311-266-000.

22321-329-000

$16.92

7

PLATE B, CLUTCH | Use from Engine SN 0110001 to 1007034 This part replaces 22311-266-000.

22321-329-000

$16.92

7

PLATE A, CLUTCH (NOT AVAILABLE) | Use from Engine SN 1012460 This part replaces 22311-268-000.

22311-286-000

Unavailable

7

PLATE, CLUTCH | Use from Engine SN 1007035 to 1012459 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

7

PLATE B, CLUTCH | Use from Engine SN 0100001 to 0109755

22321-329-000

$16.92

7

PLATE B, CLUTCH | Use from Engine SN 0110001 to 1007034

22321-329-000

$16.92

8

PLATE B, CLUTCH | Use from Engine SN 0100001 to 0109755 This part replaces 22321-266-000.

22321-329-000

$16.92

8

PLATE B, CLUTCH | Use from Engine SN 0211141 This part replaces 22321-266-000.

22321-329-000

$16.92

8

PLATE B, CLUTCH | Use from Engine SN 0100001 to 0109755

22321-329-000

$16.92

8

PLATE B, CLUTCH | Use from Engine SN 0211141

22321-329-000

$16.92

9

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-259-000

Unavailable

10

SPRING, CLUTCH (NOT AVAILABLE)

22401-275-810

Unavailable

11

RING, CLUTCH PLATE STOPPER (NOT AVAILABLE) | Use from Engine SN 0100001 to 0109755

22431-259-000

Unavailable

12

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-259-020

Unavailable

13

METAL, OIL GUIDE (NOT AVAILABLE)

25571-259-010

Unavailable

14

PIN, OIL GUIDE METAL (NOT AVAILABLE)

25572-259-000

Unavailable

15

SPRING, OIL GUIDE METAL (NOT AVAILABLE)

25573-259-000

Unavailable

16

WASHER (6X19)

90481-259-000

Unavailable

17

CIRCLIP (OUTER) (25MM) This part replaces 90602-259-000.

90602-259-010

$6.16

17

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

18

OIL SEAL (14X25X7)

91202-250-000

Unavailable

19

O-RING (57X3) (NOT AVAILABLE) | Use from Engine SN 0100001 to 0105233

91301-259-000

Unavailable

19

O-RING (79.4X3.1) | Use from Engine SN 0105234 to 0109755 This part replaces 91302-259-000.

91303-PH8-010

Unavailable

19

O-RING (79.4X3.1) | Use from Engine SN 0400001 This part replaces 91302-259-000.

91303-PH8-010

Unavailable

19

O-RING (79.4X3.1) | Use from Engine SN 0105234 to 0109755

91303-PH8-010

Unavailable

19

O-RING (79.4X3.1) | Use from Engine SN 0400001

91303-PH8-010

Unavailable

19

O-RING (74.5X3) (NOT AVAILABLE) | Use from Engine SN 0105234 to 0109755

91309-700-010

Unavailable

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

21

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

21

SCREW, PAN (6X16)

93500-06016-0A

$1.49

22

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

22

SCREW, PAN (6X35)

93500-06035-0A

$1.49

23

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

23

SCREW, PAN (6X45)

93500-06045-0A

$1.49

24

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

24

SCREW, PAN (6X60)

93500-06060-0A

$1.49

25

SCREW, PAN (6X75) This part replaces 93500-06075.

93500-06075-0A

$1.73

25

SCREW, PAN (6X75)

93500-06075-0A

$1.73

26

SCREW, PAN (6X115) (NOT AVAILABLE)

93500-06115

Unavailable
